• Model NO.：CLW
• Bearing Capacity：Small
• Car Type：Van
• Condition：New
• Certificated：ISO, CCC
• Refrigerated Temperature(°)：-18
• Driving Type：LHD and Rhd
• Cab：with Sleeper or Without Sleeper
• Van Box Material：Fiber Steel,Stainless Steel
• Refrigerator Truck Door：Rear Door and Side Door
• Drive Mode：4*2
• Thickness of Insulating Layer(mm)：80-100mm
• Filling Medium：Fresh Meat, Fruit, Vegetable Fish, Ice Cream
• Overal Dimension：6995*2150*2995
• Transport Package：Naked, Waxing and So on
• Specification：Polyurethane
• Trademark：CLW
• Origin：Hubei. China
• Production Capacity：800sets,Month

DescriptionDONGFENG 4X2 Refrigerator TruckDrive Model4X2ChassisEQ1080SJ9BDEVehicle Main DimensionsDimensions(L x W x H)mm6995*2150*2995Wheel base (mm)3800Overhang (front/rear) (mm)1068/2127Wheel track (front/rear) (mm)1562/1458Approach/Departure angle(°)21/12Weight in KGSCurb Weight3505GVW.8200Max. driving speed(km/h)115EngineModelZD30D14Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)130HPEmission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)120Tire7.50-16 tire 14RP , 6 pieces including 1 spare tireBrakesdual circuit compressed air brakeVanMaterial
Fiber steel double deck
with 8CM thickness polyurethane
Fiber steel/Stainless steel/Color plate can be choosen
Tipper Box Dimension5050*1980*1900mmThickness10CMTemperature-18ºC or -5ºC as your choice
Technical Parameters of Truck refrigeratorUnit modelDT-230SRefrigerator TypeHANXUEApplicable temperature (ºC)-18Applicable volume(m3)17Cooling capacityEnvironmental
temperature0ºC--18ºC-Voltage (V)-Current (A)-compressorDisplacement (cc/r)-condenserAir flow (m3/h)-Fan type-number-evaporatorAir flow (m3/h)-Fan type-number-refrigerant-Refrigerant charge amount(Kg)-Defrost type-Dimensions(mm)evaporator1175x525x190Condensing utensil1410x485x190Weight(KG)evaporator20Condensing utensil32RemarkOptional to install for 380v store electric power

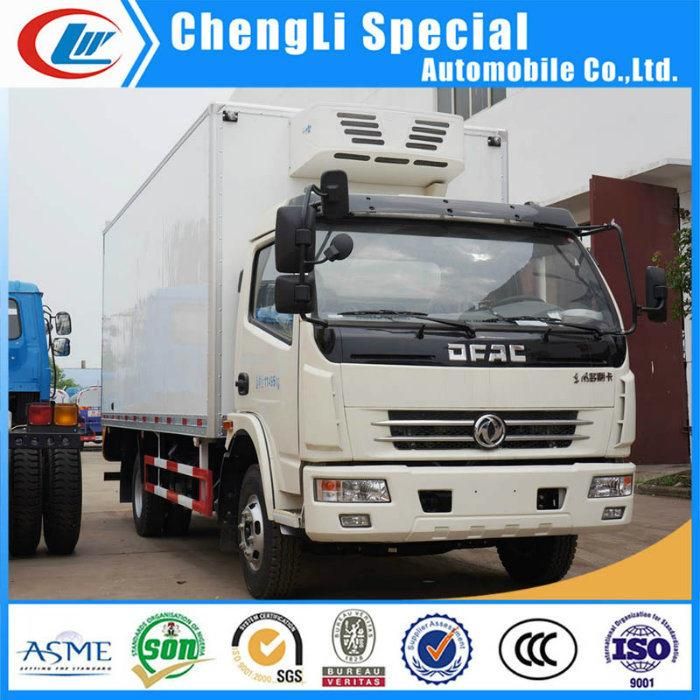

Product photo for reference:



Company Information

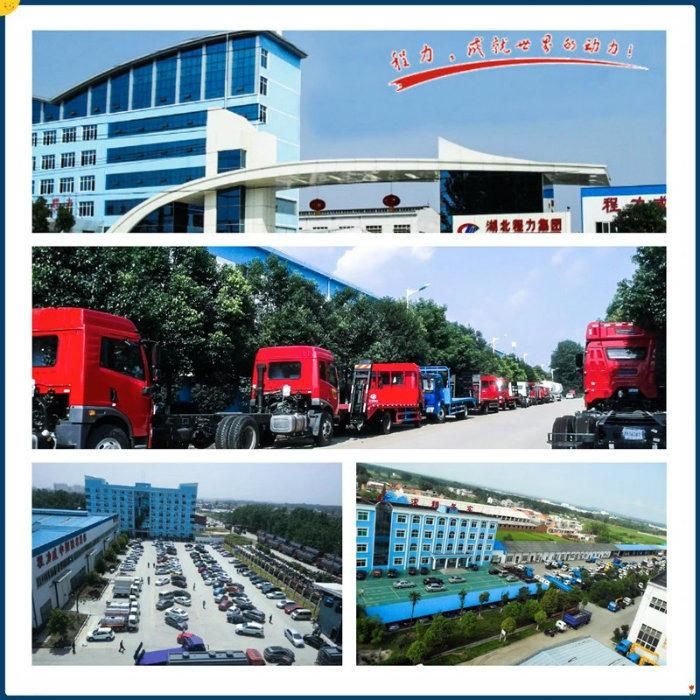

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

Certificates



Other Products

Our main products:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Customised Truck & Trailer Solutions to Meet Your Requirements
