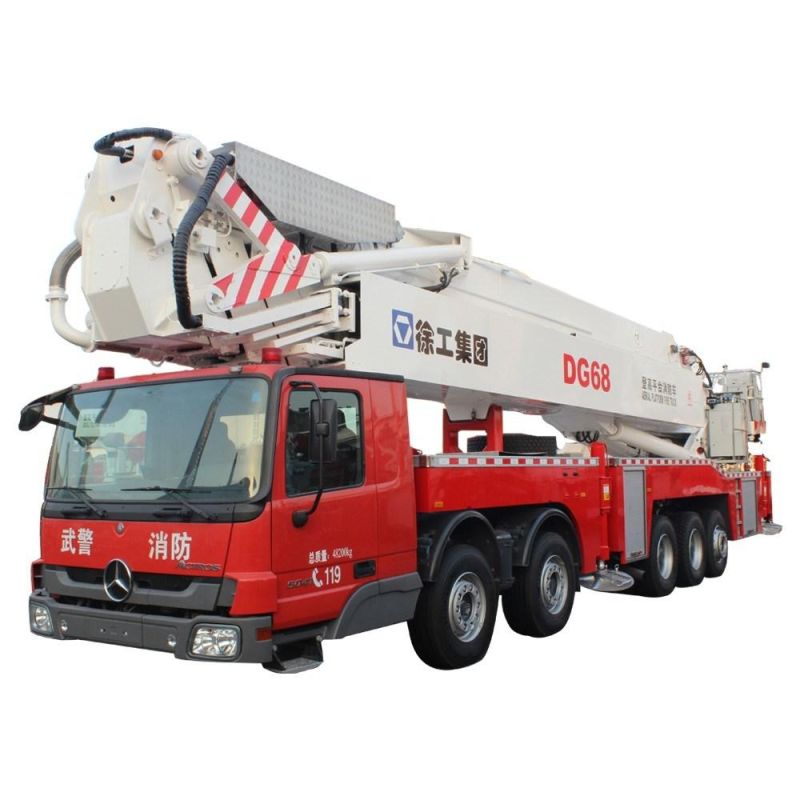

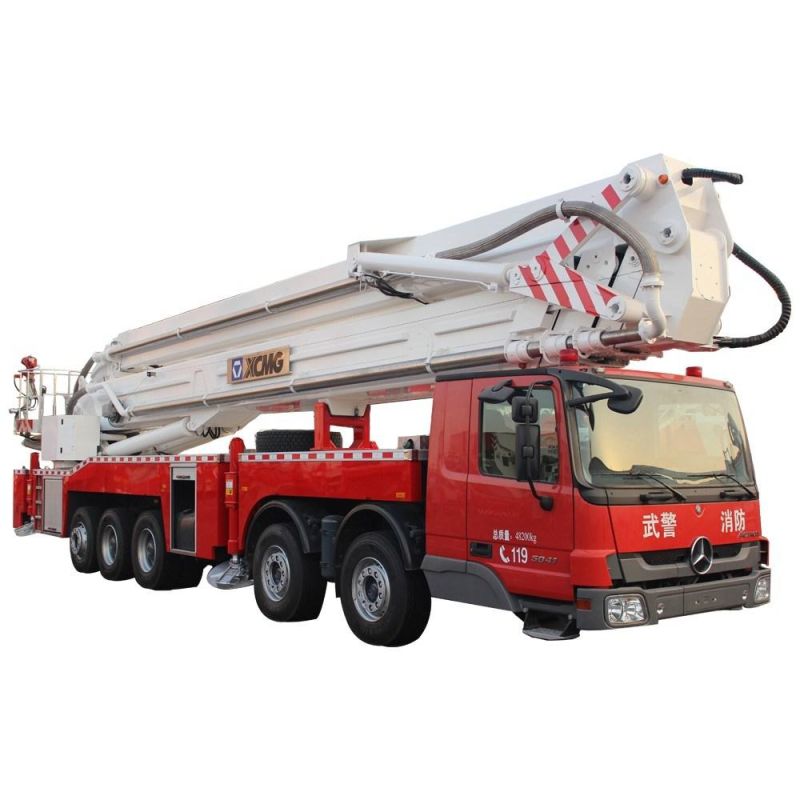

• Model NO.：DG68C1
• Fuel：Gasoline
• Drive Wheel：6×4
• Horsepower：＞450hp
• Condition：New
• Dimension：14750mm*4000mm*2500mm
• Total Vehicle Weight：49000kg
• Max.Travel Speed：85km,H

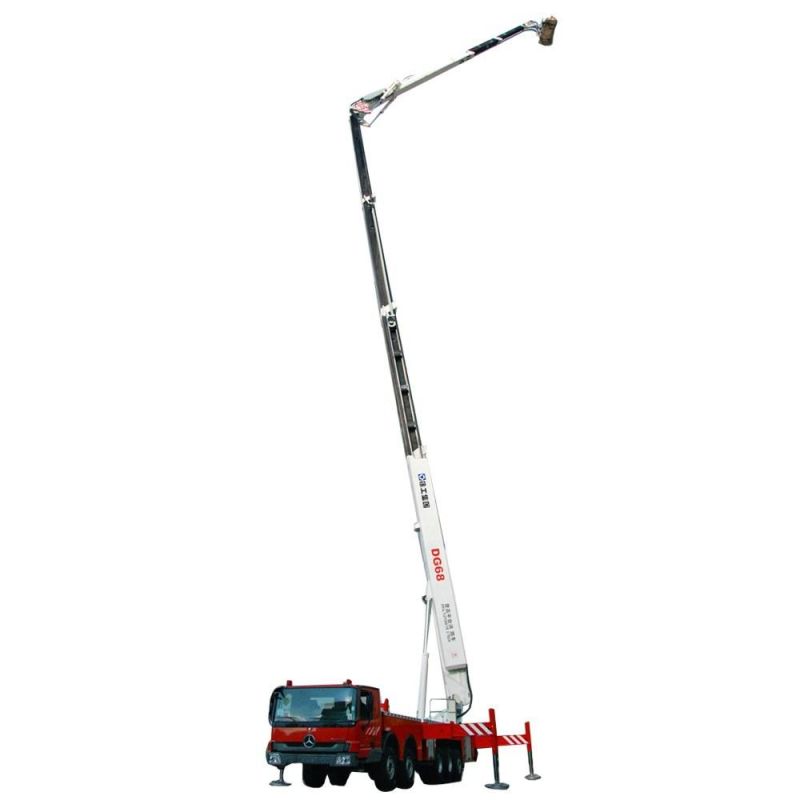

• Rated Working Height：68m
• Rated Load on Platform：400kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

CategoryItemUnitParameterDimensionOverall lengthmm14750Overall heightmm4000Overall widthmm2500WeightTotal vehicle weightKg49000Total vehicle curb weightKg48850TravelMax.travel speedKm/h≥85Max.net powerkw300Power density--6.1Main performanceRated working heightm68Rated load on platformKg400Max.working radiusm23Outrigger span(longitudinal*lateral)mm7635*7000Working speedBoom deploying timeS≤270Outrigger extending timeS≤35Fire-fighting performanceWater monitor rated flowL/S≥50Water monitor rated pressureMpa≤0.8Water monitor rated reachm≥65Foam monitor rated flowL/S--Foam monitor rated pressureMpa--Foam monitor rated reachm--Below /above horizontal°-45~+60Leftwards/rightwards°±90Fire pump rated flowL/S≥50Fire pump rated pressureMpa≥1.3




Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2019, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
