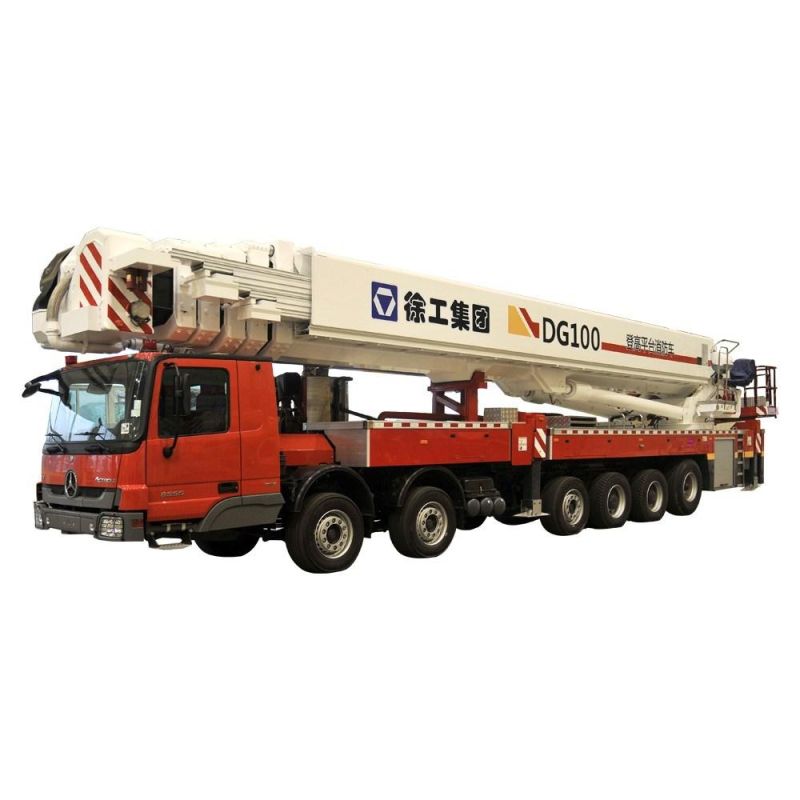

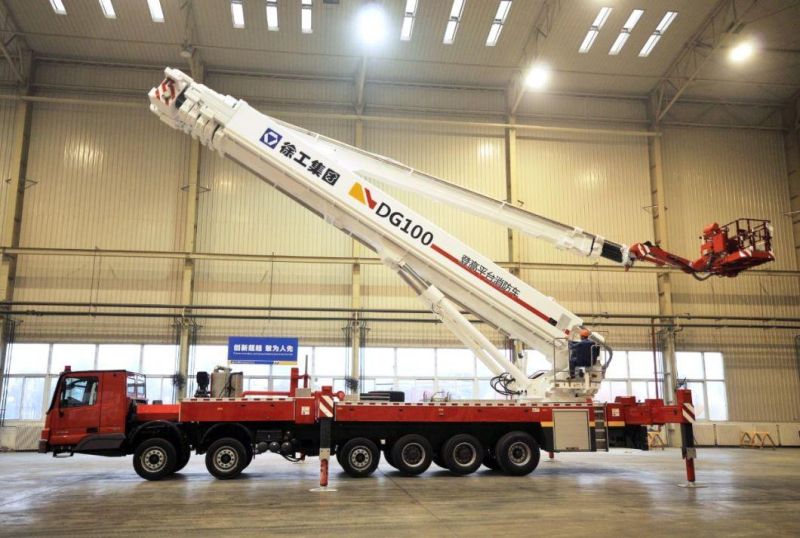

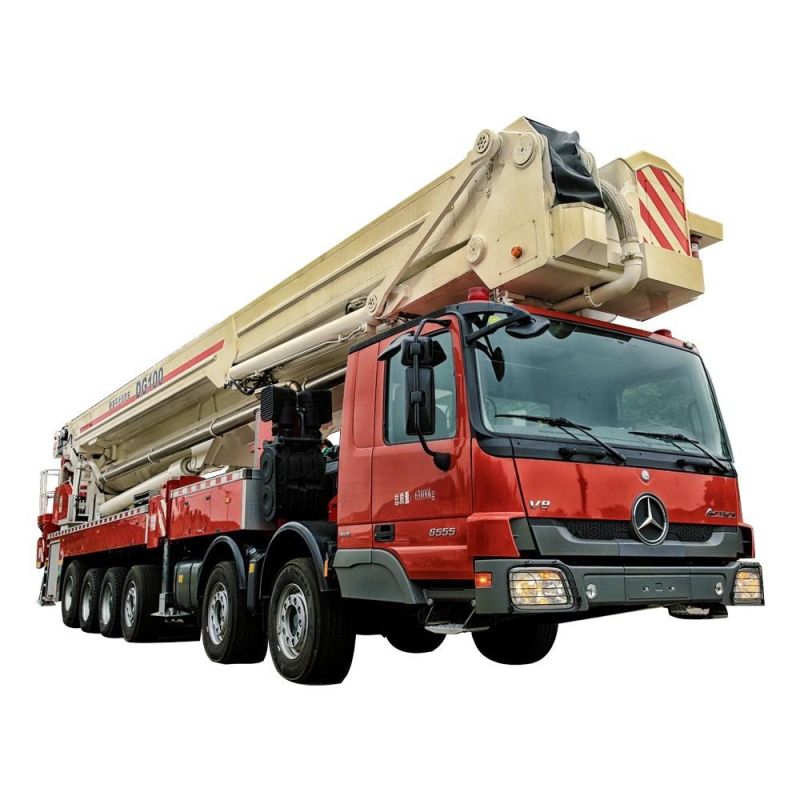

• Model NO.：DG100
• Fuel：Diesel
• Drive Wheel：6×4
• Horsepower：＞450hp
• Condition：New
• Dimension：17000mm*3960mm*2550mm
• Total Vehicle Weight：64250kg
• Max.Travel Speed：85km,H
• Rated Working Height：100m
• Rated Load on Platform：400kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

CategoryItemUnitParameterDimensionOverall lengthmm17000Overall heightmm3960Overall widthmm2550WeightTotal vehicle weightKg64250Total vehicle curb weightKg64400TravelMax.travel speedKm/h≥80Max.net powerkw405Power density--6.3Main performanceRated working heightm100Rated load on platformKg400Max.working radiusm27Outrigger span(longitudinal*lateral)mm8275*800Working speedBoom deploying timeS≤610Outrigger extending timeS≤40Fire-fighting performanceWater monitor rated flowL/S50Water monitor rated pressureMpa≤0.7Water monitor rated reachm≥70Foam monitor rated flowL/S48Foam monitor rated pressureMpa≤1.0Foam monitor rated reachm≥55Below /above horizontal°-45~90Leftwards/rightwards°-90~+90Fire pump rated flowL/S≥40Fire pump rated pressureMpa≥1.9




Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2019, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
