Isszu Outdoor Mobile LED Display Promotion Truck
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- After-sales Service:24
- Warranty:24
- Type:LED Advertising Truck
- Application:Public Service
- Displacement:3.5L
- Intergrant:Large Screen System
Base Info
- Model NO.:Mobile LED Display Promotion Truck
- Passenger Number:3
- Fuel Type:Diesel Oil
- LED Tube Core Type:IV
- Self-powered:Self-powered
- LED Screen Type:PH16
- Power Supply Mode:Own Generator-powered
- LED:Both Side or Single Side Optional
- Operating Environment:Temperature: -20c ~+60c
- LED Display Size:3.84m X2.24m X 2PCS
- Operation System:Electrically Hydraulic Control
- Wheelbase(mm):3360
- Tire Size/Type:6.50r16lt
- Electric System:24V
- Max Speed (Km/H):90
- Overall Dimension(L*W*H)(mm):5995X2025X2995
- Gear Box:5 Speed Forward and 1 Reverse
- Transport Package:Nil
- Specification:EDM
- Trademark:DRZ
- Origin:China
- HS Code:8705909090
- Production Capacity:5000
Description

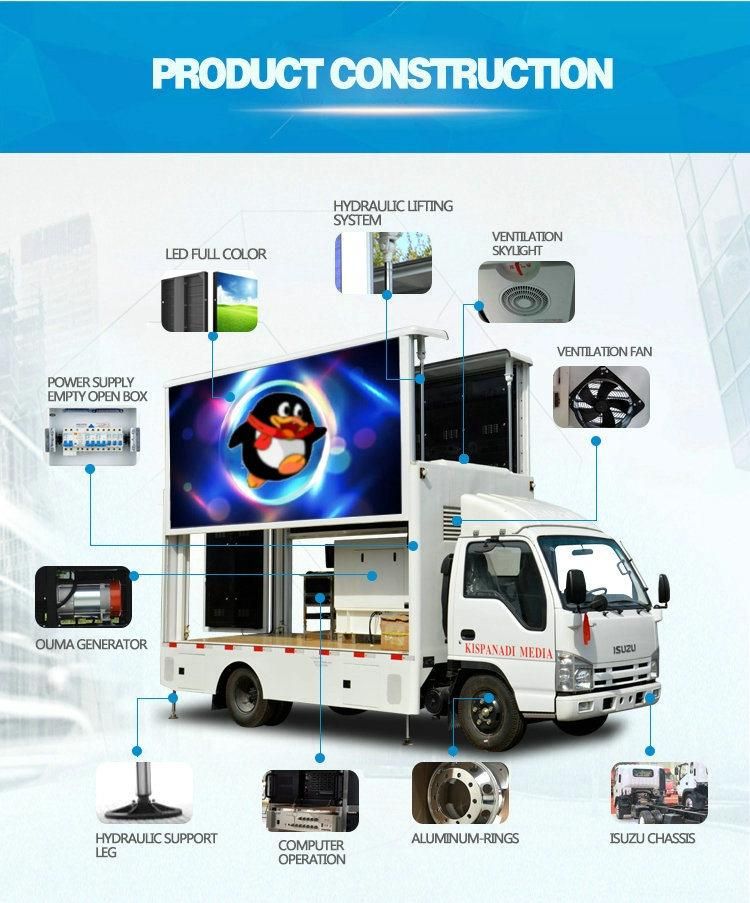

Overview
LED Truck Dimensions wheelbase LED Billboard Body Size 5995×2030×2980 3300 5995×2050×3100 3308 5595*2025*2995 3360 5995×2100×3050 3300 5995×2000×2900 3360 5995*2040*2990 3360 5595*2025*2995 3360 5990*1990*2950 3300 5995*2030*3050 3360 5995*2150*2900 3360 8760*2365*3675 4700 7290*2330*3350 3800 5250*1900*2750 2800 5100*1710*2640 3070 5000*1960*2590 2900 4650*1700*2400 2765 Equipment configuration 1.One side 12SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box
3.a full color LED screen at the rear
3.A negotiation room inside
4.Equipped multimedia playing system
5.Inside generator can supply powers
6.With ISU.ZU chassis
1Weight 8700Kg 2 External dimension 7.1m*2.3m*3.85m 3 LED screen dimension 4.8m*2.4m 4 Scrolling light box dimension 3.91m*1.5m 5 Strip screen dimension 5.44m*0.48m 6 Rear full color screen dimension 1.22m*1.83m 7 Horizontal angle of view 110° (±55°) 8 Vertical angle of view 50° (±25°) 9 LED display system P10 full-color outdoor LED display 10 Multi-media system IPC+ 15-inch display + professional sound system 11 Power supply system outer power or built-in generator power 12 Input voltage AC380V±1% 47~64Hz 13 Average power consumption 0.5KW/m²/H 14 Total power consumption 9KW/H 15 Generator KIPOR KED16SS-15.5KW 16 Electric system Standard section:Button control and operate system (standard) Deluxe section: CPU control and operate system (optional) VIP section: touch screen, wireless,upper computer control and operate system(optional) 17 Mechanism operates system lifting up & down (1900mm) 18 Lifting system power driven screw rod lifting system, afford: 5000Kg 19 Chassis Isszu (Europe IV) 20 Security system overheat protection + two fire extinguishers
Mobile Video Truck Mobile LED Promotion Truck
Applications Press release news conferences, product launches, channel investment activities, press appearances , etc Activities road show promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales Live sporting events, live events, concerts, etc. Parade display product buildings parade promotion, exhibitions, fairs, shows, etc Forum lecture forums, conferences and seminars Celebration &ceremony real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies. Election promotion for election, policy promotion Other applications wedding live, auction, etc
Detailed Parameters:
Model
ISsZU
Chassis
Brand
ISsZU
External dimension
7900mm×2175mm×3750mm
Power type
ISsZU
Curb weight
3700KG
Emission standard
Euro
Gross mass
9950KG
Seat
single row A1955
Wheel base
4700mm
Hydraulic lifting & supporting system
Hydraulic lifting system for LED screen
Electric putt (Germany technology)
Lifting height: 2000mm,afford 3T,synchronous error:1mm
Hydraulic supporting system
Imported hydraulic cylinder
Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up
Extreme super silent generator set
External Dimension
1510mm×900mm×1060mm
Power
16KW
Power type
Kipor
Number of cylinders
Water-cooled inline 4-cylinder
Air displacement
1.995L
Bore*stoke
84mm x 90mm
Main LED screen
Screen size
4800mm×2400mm
Module size
160mm(W) ×160mm(H)
Chip
R: Guanglei,G,B:Silan
Pixel pitch
10 mm
Brightness
≥6000cd/ sq.m
Max power consumption
1200 W/sq.m
Power consumption
Average :600W/sq.m
Life span
100,000hour
LED screen (back door)
Screen size
1220mm×1952mm(SMD)
Chip
R: Guanglei,G,B:Silan
Module size
244mm(W) ×122mm(H)
Pixel pitch
7.62mm
RED LED bar screen
External Dimension
5440mm×480mm
Pixel pitch
10 mm
Chip
Guanglei
Module resolution
32pixel(W) ×16pixel(H)
Scrolling Light box
Display size
3900mm×1500mm
Roller diameter
100 mm
Motor power
≥80W
Control mode
Intelligent remote control
Power supply
Input voltage
three-phase five-wire 380V
Output voltage
220V
Electrical current
50A
Power consumption
average:0.5wh/sq.m
Multi-media control system
Industrial PC
Processor:Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G
Monitor
15-inch LCD display
Power amplifier
unilateral output power
:200W
Speakers
Max power consumption:200W
Control system of LD screen
Linso/ZHOGNQING(technology of point by point correction)
Outer frame and inner decoration
Cold rolled metal plate
1.5mm
Surface car baking varnish
pure white
Inner decoration
Fire Retardant Board
Waterproof processing
Vehicle plastic irrigation processing
Price: FOB/DAF/CNF/CIF
Related Cases : ISSZU G.W 4~7 T 100P EUR 4
Chassisshort QL10403EARY 1.99T 4JB1CN
98HP
100P 98-horsepower 4JB1CN IsSzu engine,
five-speed transmission configuration IsSzu MSB / air conditioning / direction of power / 2-2.5 tons front axle, rear axle 3-4.8 tonnes / tires small tonnage Standard 700-15, optional 700R15 tires,, 650-15,650R15;700-16, optional 700R16 tire / frame cross-section: 172 * 65 * 4mm / oil brake with vacuum booster pump / audio: radio with USB 2490 Double Standard QL10403EWR1Y 1.25T 2490 QL10403EWRY 1.75T 2490 short QL10403FARY 1.99T 2765 Double QL10403FWRY 1.43T 2765 QL10503FWRY 1.75T 2765 short QL10403HARY 1.95T 3360 QL10503HARY 2.75T 3360 QL10603HARY 3.15T 3360 QL10703HARY 3.3T 3360 Double QL10403HWRY 1.75T 3360 QL10503HWRY 2.45T 3360 short QL10703KARY 4.5T 3815 QL10703KAR1Y 4.4T 3815 Double QL10703KWRY 4.3T 3815
IS UZU G.W 8~11T
700P EUR 4QL10809TKARY/QL10909TKARY/QL11009TKARY 4HK1-TCG40 - 190HP EUR 4
700P 190 horsepower Is uzu engine 4HK1-TCG40, Is uzu MLD six-speed transmission / air conditioning direction of power / 4 tons front axle, rear axle 7 tons / Standard 825-16 825R16 tire optional 825 20 tire 825R20 or 235 / 75R17.5 tire / oil brake with vacuum booster pump / cab chassis can be flipped-section: 216 * 70 * 6 + 3mm;
Optional air brake 3815 QL10809TLARY/QL10909TLARY/QL11009TLARY 4175 QL10909TMARY/QL10919TMARY/QL11009TMARY 4475 QL10909TPARY/QL11009TPARY 5200 700P 4×4 QL1070TKASY 4HK1-TCG40 3840 700P
automatic transmission
QL1080ZKARZY/QL1080ZLARZY Transmission MYY-6S tire 825-16 , 825R16 3815 ;4175; 4475
IS UZU G.W 14~16 T
FTR EUR 4 G.W
14~16TRate loading 7-8 T
4*2 QL11409TKFR 4HK1-TCG40 190HP 4strock
FTR with 190 horsepower Is uzu engine 4HK1-TCG40, six-speed transmission configuration Is uzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t / optional tire 900-20, 900R20 tires, 1000-20, 1000R20 tire / standard direction of power / central locking / electric windows / steam brake / USB audio / spacious cab flip / frame cross-section: 258 * 85 * 10 + 4mm 3900 7-8 T 4*2 QL11409TMFR 4500 7-8 T 4*2 QL11409TAFRY 4700 7-8 T 4*2 QL11409TNFR 5000 7-8 T 4*2 QL11409TQFR 5550 7-8 T 4*2 QL51409TRFR 5800 8-10T 4*2 QL11609KFRY 3900 8-10T 4*2 QL11609MFRY 4500 8-10T 4*2 QL11609AFRY 4700 8-10T 4*2 QL11609NFRY 5000 8-10T 4*2 QL11609QFRY 5550 8-10T 4*2 QL5160XXY9RFRY 5800 FVR EUR 4 G.W 15~16T 4*2
Rate loading
9~10T QL1150AKFR
QL1150AMFR
QL1150AQFR QL1160AKFRY QL1160AMFRY QL1160AAFRY QL1160ANFRY
QL1160AQFRY
QL5160XXYAQFR QL5160XXYARFR 6HK1-TCNG40 - 240HP 6strock
FVR chassis with 240-horsepower Is uzu engine 6HK1-TCNG40, six-speed transmission configuration Is uzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /Optional 1000-20 ,1000R20 , 1100-20,1100R20 / standard direction of power / central locking / electric windows / steam brake / USB audio / cab flip / frame cross-section: 258 * 85 * 10 + 4mm 3900 4500 4700 5000 5550 5800 FVR EUR 4 19T G.W 4x2 Rate loading
9~10T QL5190GXFDMFRY 6HK1-TCSG40 300HP
300-horsepower Is uzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission, 1100R20 tire, the remaining configuration with the above FVR 4500
TIC TRUCKS , tictrucks.en.made-in-china.com
Related Cases :Specifications
BJ1049V8ADA-1 BJ493ZLQ3 5995×2000×2860 2720*1760 4.8 2.56 BJ1046V9JB5-H1 4A1-68C40 5130×1900×2750 2800*1600 4.6 2.56 ZZ1047C3414D145 4B2-95C40 5995×2025×2995 3840*1760 6.8 2.6 BJ1043V9JEA-A 4B2-95C40 5995×2025×2990 3840*1760 6.8 2.6 HFC1041K7T 4D25F 5995×2030×2900 3840*1760 6.8 2.6 BJ1049V9PD6-FE ISF2.8s4129T 5995×2000×2860 3520*1760 6.8 2.56 BJ1049V9PD6-FE CY4102-CE4F 5995×2000×2900 3840*1760 6.8 2.56 BJ1089VDPFG-SD YC4E140-31 7970×2190×3730 4800*2240 10.8 2.56 CertificationsPackaging & Shipping
P8 :3840*1792=6.88m2
P6 : 3840*1728=6.65m2
Rear Screen :1280*1440=1.84m2
P8:5376*2304=12.38m2
P6: 5376*2304=12.38m2
Rear Screen 1600*1600=2.56m2
P8:4864*2048=10m2
P6: 4800*2112=10.13m2
Rear Screen 1600*1600=2.56m2
P8:2560*1536=3.93m2
P6:2496*1536=3.83m2
Rear Screen 960*1280=1.64m2
P8:2304*1536=3.54m2
P6:2496*1536=3.83m2
Rear Screen 960*1280=1.64m2
P8:2304*1408=3.14m2
P6:2304*1345=3.1m2
- According to customer's requirements
