Aerosun EV 6.2cbm Cgj5100txsqlbev Cleaning Sweeper Truck
Aerosun Corporation- Type：Wet-type
- Certification：ISO9000, CCC
- Transmission Type：Automatic
- Emission Standard：Zero
- Fuel：EV
- Cleaning Process：Cold Water Cleaning
Base Info
- Model NO.：CGJ5100TXSQLBEV
- Condition：New
- Trademark：Aerosun SanLi
- Origin：China
Description

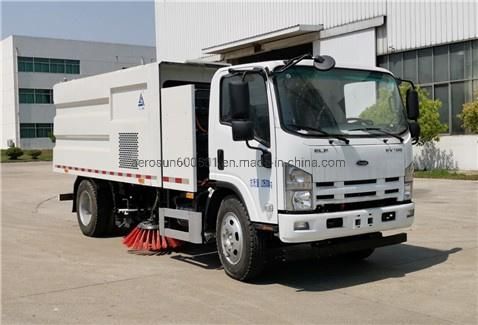

Aerosun EV CGJ5100TXSQLBEV cleaning sweeper truck adopts ISUZU pure electric chassis, which can be used for cleaning and high-pressure cleaning of urban roads, squares, airports, docks and other roads. It can be used as a road sweeper alone or simultaneously for high pressure cleaning and sweeping the road. It has a variety of functions such as road sweeping, road cleaning, road edge and its stone facade washing and spray dust removal. It can be used as a road sweeping vehicle, cleaning vehicle, roadside cleaning vehicle and spray dust removal vehicle. After the operation, the road surface is free of dust and clean water, and the road surface is cleaned to reveal the original appearance of asphalt or concrete.
1.Features of new energy products - high safetyIn conjunction with Dongfeng Motor, the special new energy sanitation chassis is customized for the working conditions of sanitation equipment. According to the working conditions of sanitation equipment, the vehicle is equipped with multiple protection, such as battery dustproof and waterproof (IP67), insulation resistance detection, online diagnosis protection, high-voltage wire harness insulation protection, charging port protection, high-voltage distribution protection, etc., to ensure safety.
2. PARAMETRS
| Product model | CGJ5100TXSQLBEV |
| GVW | 10500KG |
| Overall dimension (L × W × H) | 7175×2200×2650mm |
| Chassis model | QL1100BEVEMLAY |
| Motor | TZ370XS-LKM0851, 120kw |
| Clean & sweep width | 3.5m |
| Total volume of clean water tank | 3.2m3 |
| Total volume of garbage tank | 6.2m3 |
| Material of tank | stainless steel |
| Battery capacity | 314.14Kwh |
| Battery type | lithium iron phosphate |
| Charging time | Fast charge 2 hours, slow charge 4 hours |
| Charging pile power | 180Kw |
| High pressure pump pressure | 10 MPa |
| Wash & sweep speed | 3~15 km/h |
| Clean & sweep efficiency | ≥92% |
| Discharging angle | ≥48° |
3. Technical characteristics

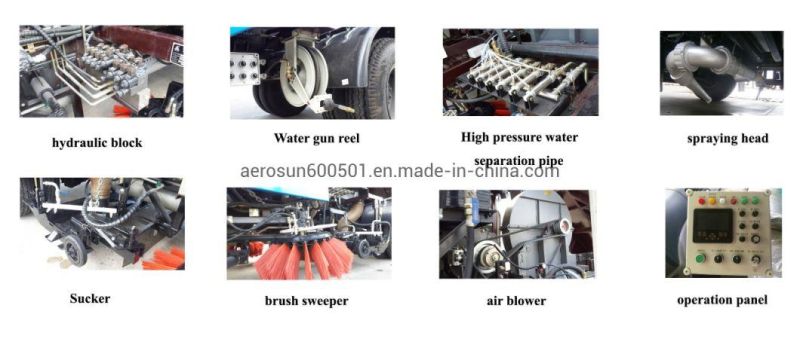

- It has a variety of operation functions, such as road cleaning, road sweeping, road edge washing, spray dust removal and so on.
- Adopts the arrangement mode of "middle two vertical sweep + middle wide nozzle built-in high pressure water spraying rod + middle high pressure side spraying rod". The operating device is highly concentrated, with low consumption of brushing, less splashing and high cleaning rate.
- The left and right high-pressure side spray rods and suction nozzles are arranged in V-shape, and are operated by pneumatic, with high water impact force and efficient collection of sewage. The spray rod mechanism has anti-collision and automatic reset functions.
- Intelligent control system based on CAN bus, LCD panel display, humanized operation. After the operation mode is selected, the startup and shutdown of each operation mechanism is automatically controlled by the program.
- The auxiliary engine is used to drive the high-pressure water pump, fan and working device, and the high-pressure water pump is individual driven by pneumatic clutch.
- High pressure water pump, unloading valve and high pressure nozzle adopt imported products, high reliability.
- It has the advanced technology of high pressure water control system, when switching the high pressure water pump starting and working water valve, the pump can automatic unloading, effectively protect the pump.
- The garbage tank is equipped with anti-overflow alarm device, which can prevent the sewage from spilling out of the pipe and causing secondary pollution. The self-cleaning device is used to clean the sewage tank automatically after dumping rubbish, which improves the working efficiency.
- The clean water tank is equipped with a low water level sensing alarm system, which automatically alarms when the water level is low to prevent damage caused by water shortage of the water pump.
- It has a low-pressure sprinkling water pump system, and two counter sprinkler heads are installed in the middle to realize fast flushing of the road surface.
