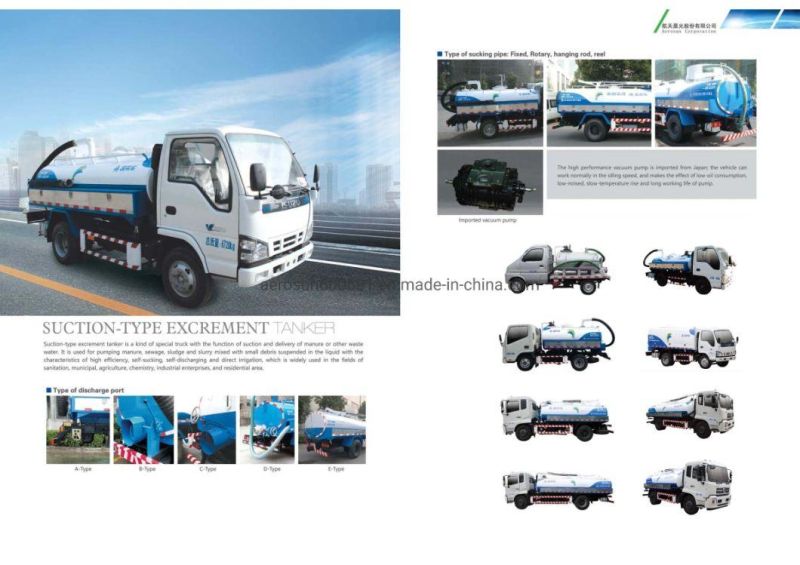

Aerosun EV 9.52cbm Cgj5180gxeeqbev Excrement Collector/Vacuum Truck
Aerosun Corporation- Certification：ISO9000, CCC
- Emission Standard：Zero
- Transmission Type：Automatic
- Fuel：EV
- Condition：New
- Trademark：Aerosun SanLi
Base Info
- Model NO.：CGJ5180GXEEQBEV
- Origin：China
Description
Special deviceEffective volume (L) 9520 Tank size (mm) 2126×1346×4800 Suction depth (m) ≥4 Filling up time (s) ≤720 Emptying time (s) ≤700 Vacuum pump type A55D Rated speed (rpm) 500(A55D) Rated air flow rate(L/min) 5500(A55D, 2 units) Limit Vacuum (MPa) -0.097
2.Main parts
2.1 This vehicle is mainly composed of chassis, tank assembly, left and right hose box, gas system, hydraulic system, suction device, discharge valve, frame tank body (optional assembly of some models) and so on.
2.2The main components of the gas system are: anti-overflow device, four-way valve, crude oil and gas separator, oil and gas separator, water and gas separator, vacuum pump and lubrication system, deodorizer (optional assembly of some models).
2.3The discharge valve is DN150 ball valve, optional additional reducer or electric actuator.
2.4 Equiped with a rotating suction head, and the length of suction hose is 5m.
3.Main features
3.1 The liquid tank is welded of 4mm steel plate. The cross section of the tank is ellipse. There are reinforcement rings and anti-wave plates welded in the tank to strengthen the stiffness of the tank and reduce the impact of liquid in the tank on the tank bottom during driving. The inner surface of the tank is coated with EPSP403 solvent-free epoxy phenolic paint, which has excellent anti-corrosion performance.
3.2 The rotary vane vacuum pump, imported from Japan, has the advantages of small noise, large suction, low fuel consumption and long service life.
3.3 The anti-overflow device in the gas system can prevent sewage from entering the gas circuit due to full suction and damage to the vacuum pump system.
3.4 The crude oil and gas separator, oil and gas separator and water and gas separator in the gas system realize secondary separation to ensure the thorough separation of oil and gas, water and gas in the pipeline and ensure the safe and efficient operation of the vehicle.
