Foton Petrol/Gasoline Light Duty 4m3/4 Cubic Meter/4000liters Hook Lift Garbage Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Type：Roll Off
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：3001-6000L
- Emission Standard：Euro 3
- Transmission Type：Manual
- Payload：2ton, 3ton, 4ton, 5ton
Base Info
- Model NO.：CLW5086LJC
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：FOTON
- Models：Small
- Usage：Arm Type
- Condition：New
- Chassis Brand：Dongfeng, HOWO, FAW, JAC, Foton, etc
- Engine：Wuling, 87HP
- Garbage Box Material：Carbon Steel
- Thickness of Box：Side 3mm, Bottom 4mm
- Loading&Unloading：Hydraulic System
- Container Roll on Time：50-60s
- Container Roll off Time：40-50s
- Control System：Multi-Valve
- Color：as Per Customer′s Request
- Warranty：1 Year
- Transport Package：Naked, RO-RO, Bulk, Container
- Specification：4cbm, 4m3, 4000Liters, 2ton, 3ton, 4ton, 5ton
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
ParametersOverall Dimension(L*W*H) mm 4630*1620*1945 Tank Cubage m3 4 Entrance Width mm 2000 Loading Capacity mt 3-4 Max Loading Mass kg 6000 Gross Vehicle Weight kg 4495 Compressing Ratio ° >=1:4 Max Hydraulic Pressure Mpa 19.6 Loading Cycle Time s <=30 Discharging Time s <=45 Max Torsion/Rev N*m/r/m 900/1400;925/1400;970/1400 Engine Model ISD245 50(OPTIONAL) Emission Euro 3,4,5 Fuel Type Petrol, Gasoline Max Driving Speed Km/h 90 Chassis Model Option:Dongfeng,Isuzu,Hino,Sinotruk,JAC,FAW,Foton... Wheel Base mm 3070 Front/Rear Axle mm 1800/3500 Curb Weight kg 2150

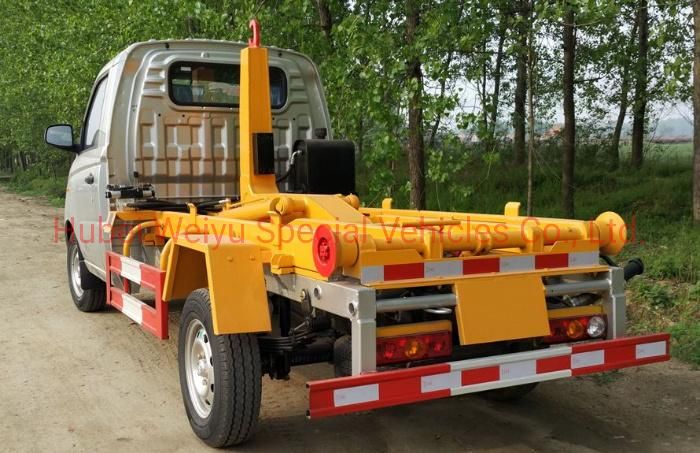

Reference Photos

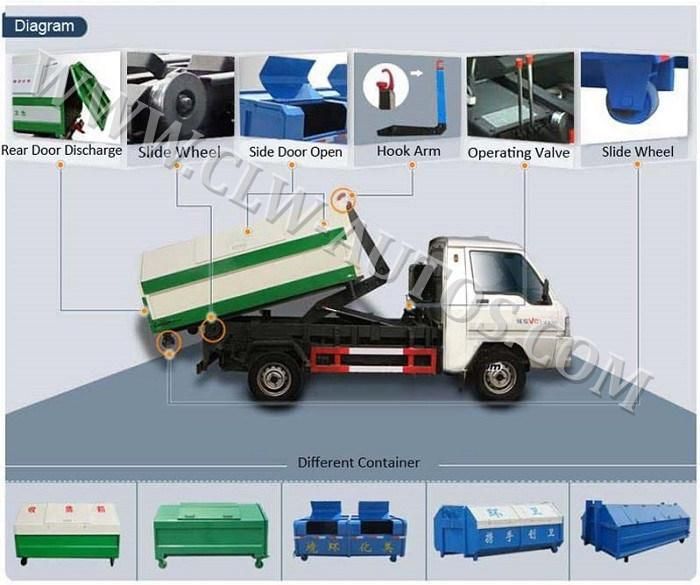

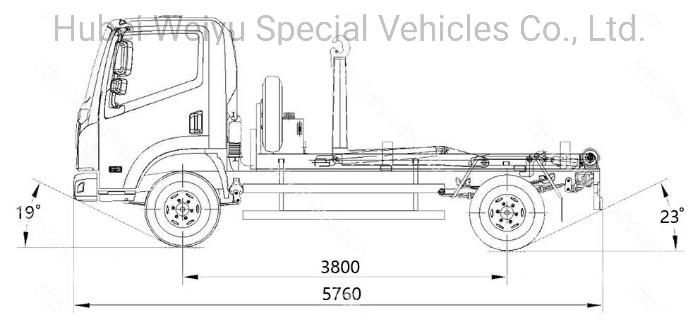

Main Structure and Diagram

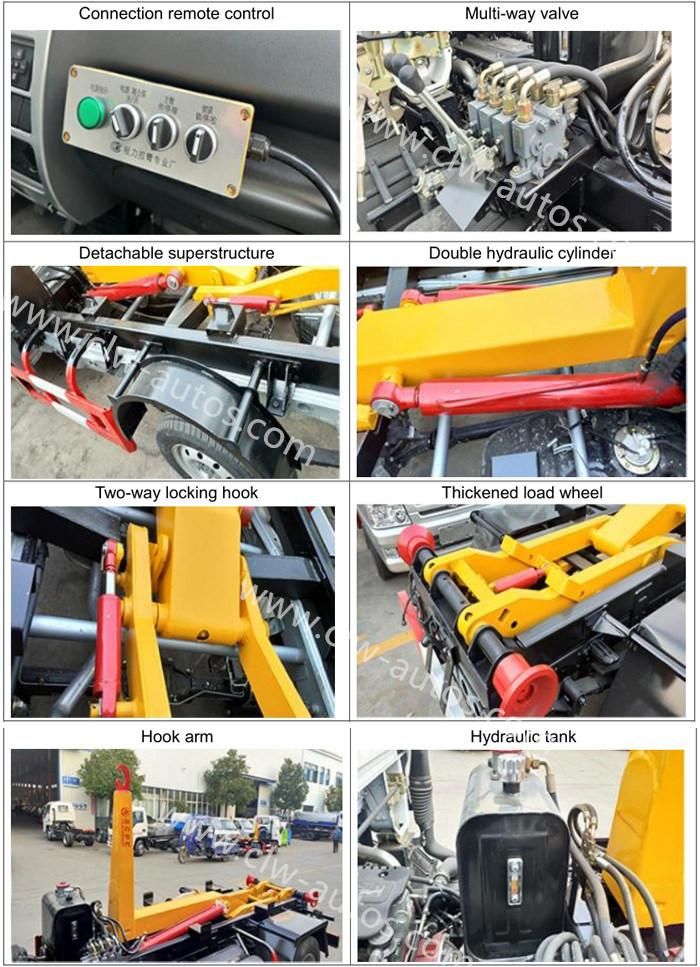

Main Parts

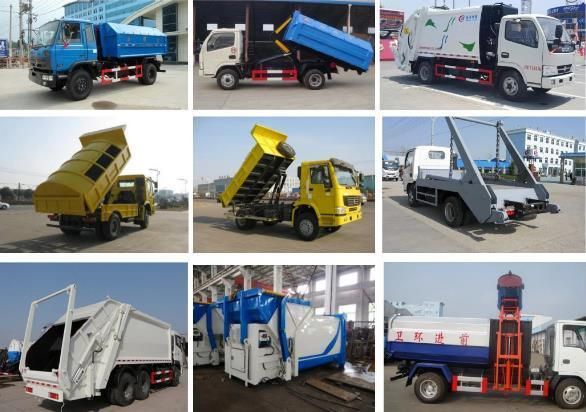

Different types of garbage truck
Company Introduction
Certificates
Our Overseas Exhibition
Contact Flora for more details: +86-13971508969 (Mobile)
