• Model NO.：CLW5369PB
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＞8L
• Condition：New
• Loading Capacity：3000 Liters
• Material：Carbon Steel
• Tank Thickness：4 mm
• Wheel Base：2800 mm
• Engine：Quanchai
• Horsepower：68 HP
• Water Pump：China Famous Brand
• Water Pump Flow：20 Cbm,H
• Tire：6.00-15
• Water Sprinkle Width：15 M
• Water Suction Height：7 M
• Cannon Range：30 M
• User Manual：Yes
• Warranty：One Year
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5500x1700x2100mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x2ChassisBrandDongfengCurb weight(kg)2480  kgLoading weight(kg)1405 kgGross weight(kg)4015 kgWheelbase(mm)2800 mmDimensions(mm)5500*1700*2100 mmFront Loading Capacity (Ton)1.8Rear Loading Capacity (Ton)3Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity6 pcs with one spare tireSpecifications6.00-15TransmissionManual type,5 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandQuanchaiFuel typeDieselPower(kw)50 kwHorsepower(HP)68 HPCylinder number6Emission standardEuro 2UpperWater tankCapacity(cbm/tons)3 /3Tank Dimension(mm)2800*1200*800Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

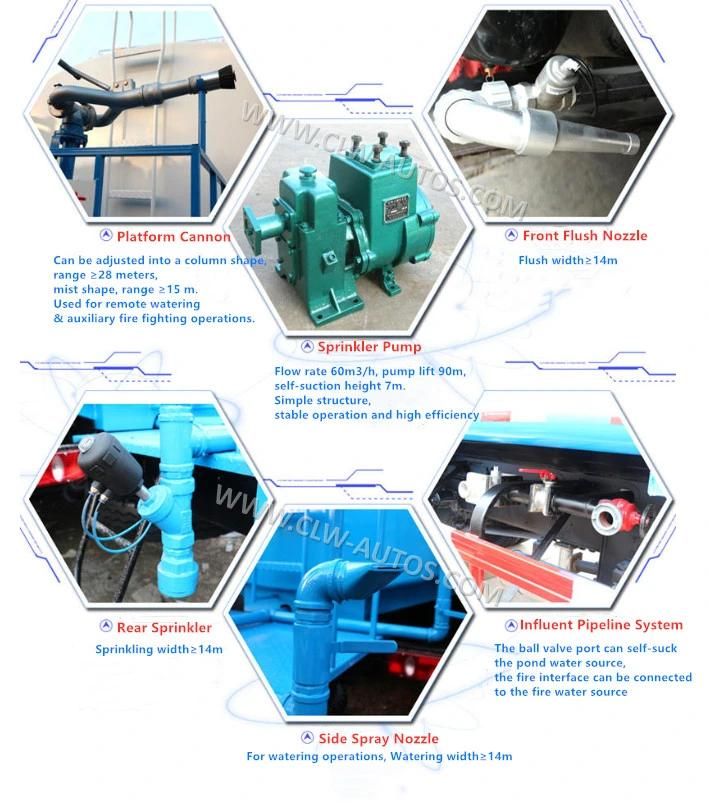

Parts Photos

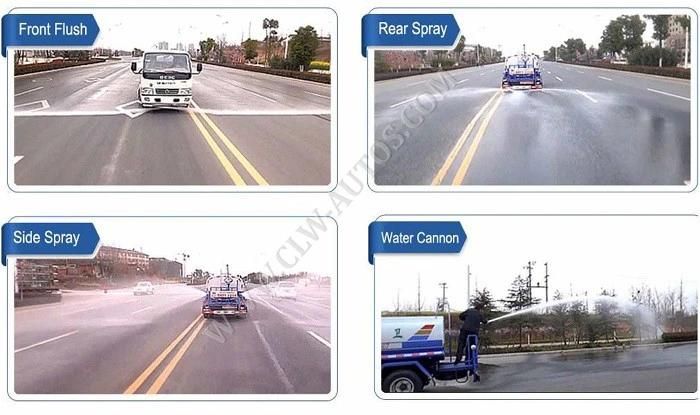

Working Show

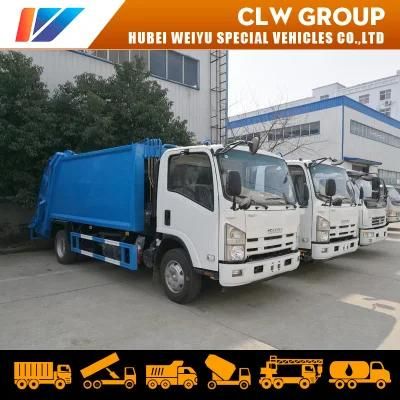

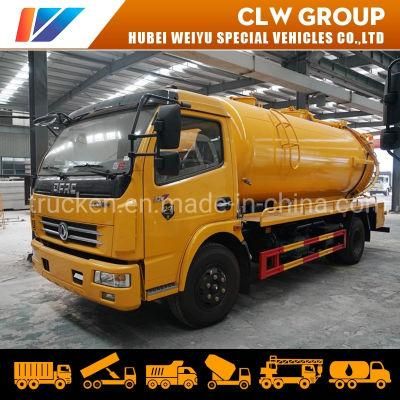

Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting
