• Model NO.：CLW50780
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Diesel 156HP Chaoyang
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 140HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Sweeper：2 Unit
• Water Cleaning System：Front Flush, Side,Rear Spray
• Water Level Alarm System：Yes
• Operating Manual：Yes, English Version
• Logo：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked Packing
• Specification：5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Cabin

Driving type 4x2 LHD

single row,with A/C ,with two seats

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7000×2200×2700Wheel base (mm)3800Approach/Departure angle(°)21/12Weight in KGSTare Weight6405payload4850Front axles loading capacity1x6280Rear axles loading capacity1x4720Max. driving speed(km/h)90EngineBrandChaoyang Horse Power(HP)156Emission standardEuro IIIGearbox5 forwards & 1 reverseSteeringleft hand driveTire8.25-16,6 tires with one spareMax. Cleaning Width3MSweeper Speed3~20 km/hMax. Cleaning Capacity60000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Hopper5000liters,double layer,Stainless steel insideWater tank4000LitersAuxiliary EngineModel&ManufacturerJIANGLING JX493ZQTypeFour-injection,water-cooling,turbo-charged,diesel enginePower77hp/3600r/minMax. Rotation Speed2400r/minOil typeDiesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

2 brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

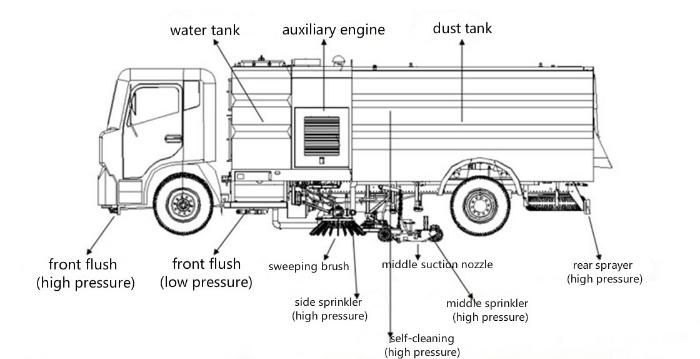

Product Diagram

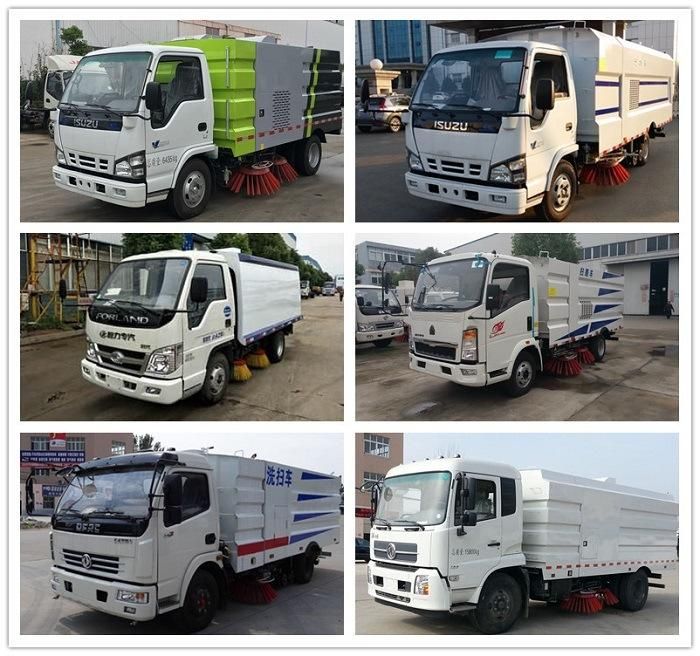

Related Product
