• Model NO.：CLW50698
• LED Tube Core Type：IV
• Self-powered：Self-powered
• LED Screen Type：P6
• Power Supply Mode：Own Generator-powered
• Truck Chassis Brand：Dongfeng
• Hand Driving：LHD or Rhd
• Frame Body：Composite Steel
• LED Screen：Waterproof, Shake-Proof, High Brightness
• Floor：Aluminum Patterned Floor
• Control System：Computer,Electrical Distribution Box
• Power Supply：Silent Diesel Generator or Indoor Power Supply
• Sound System：Loudspeaker 4PCS, Amplifier 1PC
• Logo：as Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5995X2040x2990mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5990×1990×2950(mm)Gross Vehicle Weight4495(Kg)Curb Weight4365(Kg)Chassis SpecificationChassis parametersChassis BrandDongfengCabinSingle, Left Hand Driving, with A/CEngineModel4 CylindersPower70KW/95HPEmission standardEURO IIIDisplacement2.771LFuel typeDieselGearbox5 Forward & 1 Reverse GearFront and Rear Axle load2T/4 TWheel base3300(mm)Overhang( Front/Rear)1015/1620(mm)Angle(Approach/departure)24/12 (°)Brake SystemOil brakeSteering GearPower AssistantTire700-16, 6 Pieces with 1 Spare TireMaximum speed90(km/h)SuperstructureLED ScreenPixel

Outdoor full colour display screen

P6

Dimension(LxW)(mm)

Both side: 3840*1792

Rear:1280*1440

Description

Screen lift on both sides

Waterproof, shake-proof, high brightness, long life

General configuration

1. OUMA brand,Silent diesel generator, 15KW

2. One set industrial computer with control system

3. Sound system: Loudspeaker 4pcs, amplifier 1pc

4. Internal and external electrical distribution box.

5. Circulating ventilation and cooling systems.

6. 5CM composite steel frame body

7. Aluminum patterned floor

Remarks

Equipped with Hydraulic stage

The color of the superstructure is oprional.

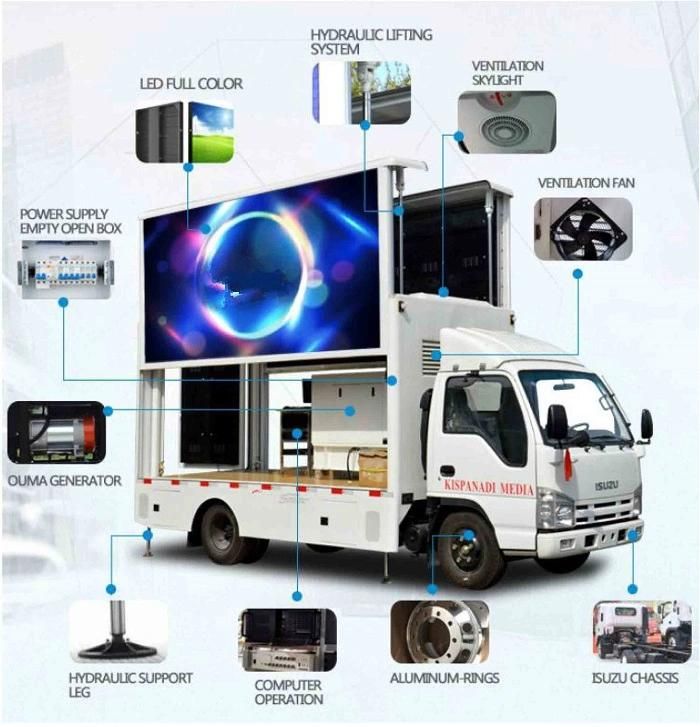

Product Diagram

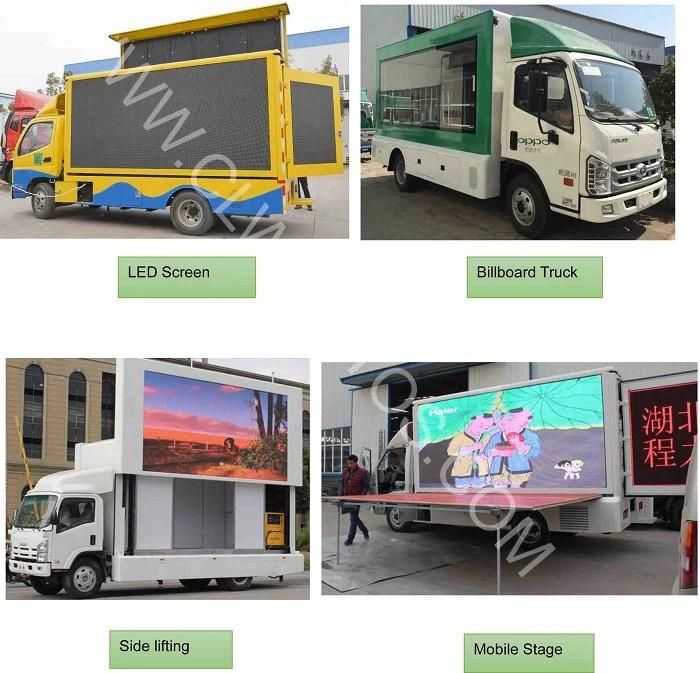

Optional Parts

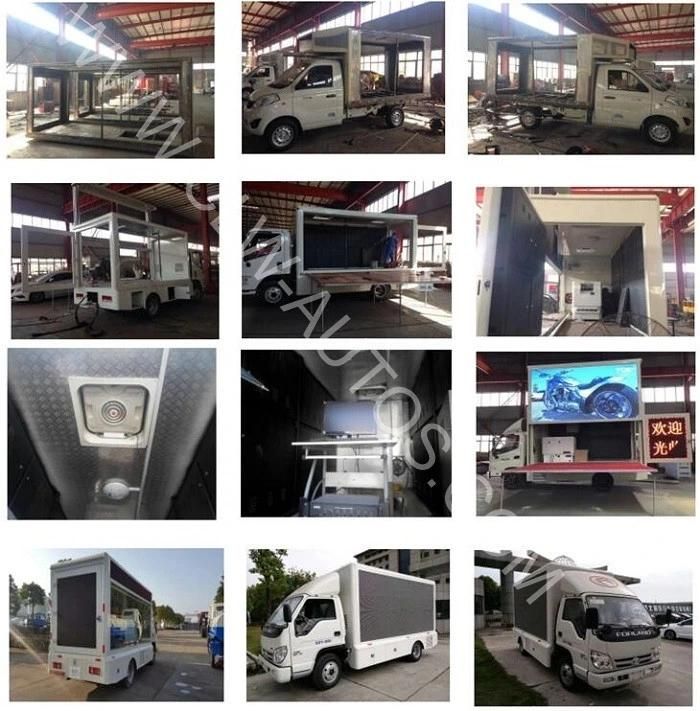

Production Process







Overseas Training

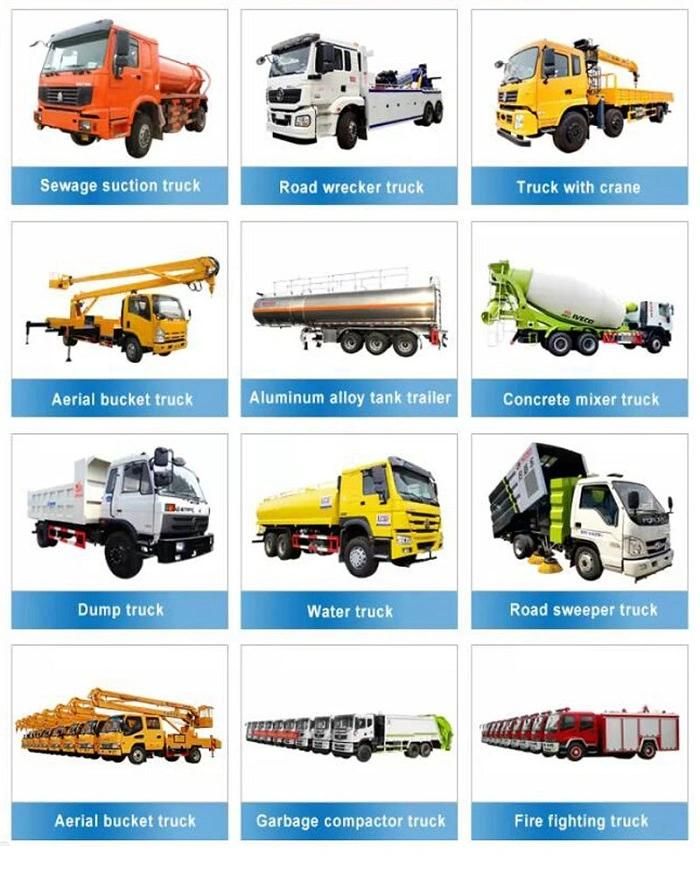

Other Special Truck Series



Company Introduction



Overseas Exhibition and Local Support



Customer Visiting








Contactor
