Dongfeng Flatbed Tow Truck 120HP Tow Truck

CLW Heavy Industry Co., Ltd
  • Certification：ISO9000, CCC, TS16949, EPA
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Towing Tonnage：10T
  • Fuel：Diesel
  • Bearing Capacity：Medium

Base Info

  • Model NO.：CLW7748
  • Brand：Dongfeng
  • Condition：New
  • Product Name：Dongfeng Tow Truck
  • Overall Dimension：Customized 7420X2300X2560 mm
  • Cabin：2~3 Persons
  • Gross Vehicle Weight：7490 Kg
  • Wheel Base：3300mm 3800mm 3950mm
  • Engine：Chaochai Engine, 4 in-Line Cylinders
  • Engine Horsepower：120HP Euro III
  • Body Material：Q235A Carbon Steel
  • Lifting Weight：3000kg
  • Wheel Lift Extension：1340mm
  • Transport Package：by Bulk by Roro by Container
  • Specification：8TONS 10TONS 15TONS
  • Trademark：CLW BRAND
  • Origin：Hubei. China
  • HS Code：8805290000
  • Production Capacity：1000PCS,Year

Description

Basic Info.

Model NO. CLW7748 Brand Dongfeng Condition New Product Name Dongfeng Tow Truck Overall Dimension Customized 7420X2300X2560 mm Cabin 2~3 Persons Gross Vehicle Weight 7490 Kg Wheel Base 3300mm 3800mm 3950mm Engine Chaochai Engine, 4 in-Line Cylinders Engine Horsepower 120HP Euro III Body Material Q235A Carbon Steel Lifting Weight 3000kg Wheel Lift Extension 1340mm Transport Package by Bulk by Roro by Container Specification 8TONS 10TONS 15TONS Trademark CLW BRAND Origin Hubei. China HS Code 8805290000 Production Capacity 1000PCS/Year

Product Description

DONGFENG Flatbed Tow Truck 120HP Tow Truck

Dongfeng Flatbed Tow Truck 120HP Tow Truck
Item No.Parameters
Overall Dimension7420x2300x2560 mm
Driving ModelRight hand drive
Cabin2~3 persons
Gross Vehicle Weight7490 kg
Curb Weight5495 kg
Loading Weight3000~4000Kg
Wheel Base3800 mm
Front/rear Tread1835/1640 mm
Approach/Departure Angle20/10 degree
Front Axle3150 kg
Rear Axle4340 kg
EngineChaochai Engine, 4 in-line cylinders
Engine horsepower120HP EURO III
Displacement3856mL (Diesel)
Max Driving Speed90 km/h
Tire7.50-16( 7 pieces)

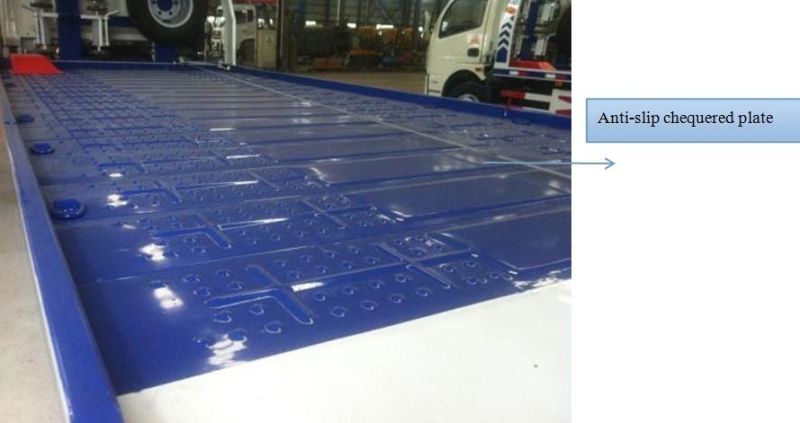

Loading Plate
Body MaterialQ235A carbon steel
Lifting Weight3000kg
Loading Plate Dimensions4450*2200mm
Loading Plate Glide Range2700mm
Min. Slope Anglo8 degree
Steel Rope Length21m

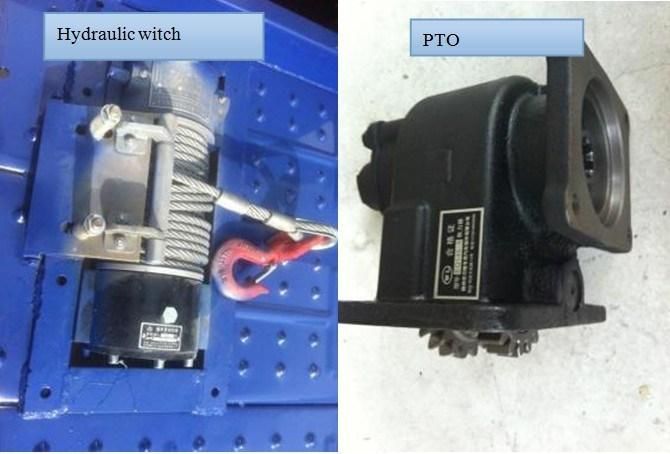

Winch Speed5m/min
Towing Weight4000kg

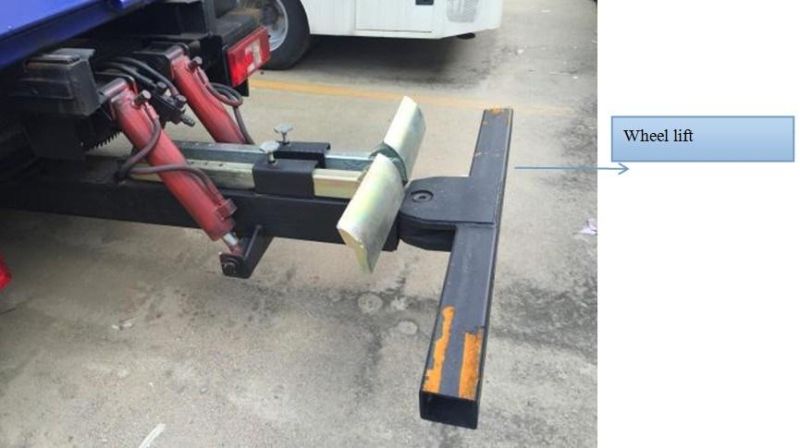

Wheel Lift Max. Length1640mm
Wheel Lift Extension1340mm
Tool Box no.1
Auxiliary wheel no.2
"L" bracket no.1
LOGOCompany Logo or any advertisement can be printed on the carriage body according to the customer's design.
