• Model NO.：clw5697
• Fuel：Diesel
• Bearing Capacity：Powered Mechanical
• Brand：Dongfeng
• Condition：New
• Product Name：Mobile Crane Truck
• Color：Customer Requirements
• After-Sales Service Provided：Overseas Third-Party Support Available
• Chassis Brand：Dongfeng
• Capacity：3-8 Ton Truck Crane
• Engine：Dongfeng Cummins Environmental Protection
• Tire：Radial Tire 9.00r20
• Optional Attachments：Remote Control Equipment
• Hydraulic Parts：Telescopic Boom Mobile Crane Made
• Key Words：Mini Crane 8tons 10tons
• Transport Package：by Bulk by Roro by Container
• Specification：10TONS 12TONS 15TONS
• Trademark：DONGFENG
• Origin：Hubei. China
• HS Code：8701909000
• Production Capacity：1000PCS,Year

Specification

Drive model

4x2,LHD

Max. Driving Speed(km/h)

90

Cabin

Passengers  Allowed in front row

3

Vehicle

Curb Weight(kg)

2805

Overall Dimensions(L x W x H)(mm)

5995*2250*3200

Approach/Departure angle(°)

20/17

Wheel Base(mm)

3360

Overhang (front/rear) (mm)

1160/1475

Wheel Track (front/rear) (mm)

1825/1540

Engine

Model

4DW93-84

Air-in Type

Inline four cylinder, supercharged intercooler

Fuel

diesel

MAX Power(HP)

90HP

Emission standard

Euro II

Cylinder Number

4

Rated Speed(RPM)

3000RPM

MAX Torque(N.M)

220N.m

MAX Torque Speed(RPM)

2100rpm

Displacement(L)

2.54

Gear Box

Shift

5

Running system

Leaf Spring

8/9+6

Tire

6+1

Brake

Oil-Cut

Equipment for 5tons Crane Mounted Parts

Working Platform

360°turning(left or right), H-shape legs 360°

Cargo Box Dimension

3400×2160×600mm

Material of box body

Carbon steel

Extendable boom section

2

Boom Type

Straight

Lifting Max. Weight

5000KG

Lifting Max. Height

10500 mm

Working Radius

8700 mm

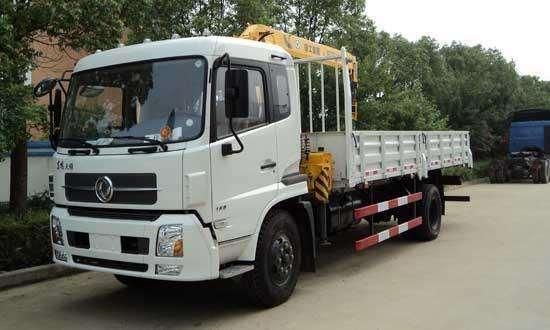

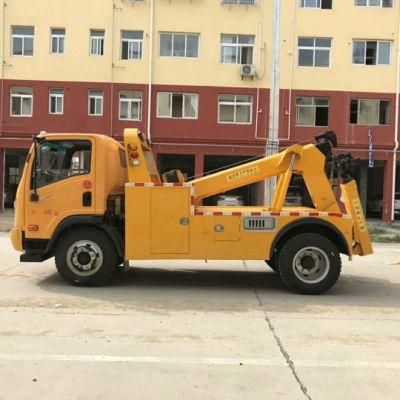

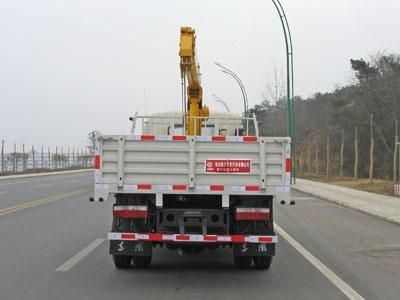

More pictures for reference

 USD 800 for All Spare Parts Below:

No.

Parts Name

Quantity

1

Fuel Filter

3

2

Lubricating Oil Filter

3

3

Air Cleaner

3

4

Clutch Plate

1

5

Brake Disk Set(Front)

2

Brake Disk Set(Rear)

2

6

Fan Belt

1

7

Air Condition Belt

1

8

Relay

1

9

Release Bearing(Inner And Outer)

1

10

Seal Kit For Hub(Rear And Front)

1

11

Seal Kit For Differential Pinion(Front And Rear)

1

12

Cross Joint For Transmission-Front Differential

1
