Dongfeng 153 Model 10cbm Water Bowser Water Tank Truck Cheap Price
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Volume：10001 - 15000L
- Certification：ISO9000, CCC, EPA, EEC, CE
- Emission Standard：Euro 2
- Sprinkling Area：12 - 16m
Base Info
- Model NO.：CLW50B4
- Transmission Type：Manual
- Payload：8-10ton
- Fuel：Diesel
- Drive Wheel：4×2
- Engine Capacity：＜4L
- Condition：New
- Chassis Brand：Dongfeng, Sinotruk, Foton, Isuzu, FAW, etc
- Drive Mode：4*2 4*4 6*4 8*4, etc.
- Curb Weight：5495kg
- Engine：170HP
- Tank Material：Q235B and Stainless Steel for Optional
- Tank Size：8cbm; 10cbm
- Tank Capacity：8ton;10ton
- Tank Thickness：4mm; 5mm; 6mm
- Water Pump Flow：20 Cbm,H
- Water Diversion Time：Less Than 15min
- Water Suction Depth：7m
- Water Sprinkle Width：15m
- Water Cannon Range：30m
- Transport Package：Naked Packing, RO-RO, Bulk Ship
- Specification：7800*2420*3100mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Technique parameter | |||
Name | Dongfeng 153model water bowser truck | L×W×H mm | 7800×2420×3100(mm) |
Chassis Model | EQ5072 | Water tank Dimension(mm) | 4400×2200×1400(mm) |
total mass | 15800(Kg) | Approach/Departure angle | 16/8(°) |
Rated mass | 9550(Kg) | front/rear suspension | 1365/2435(mm) |
curb mass | 6055(Kg) | Max. speed | 85(km/h) |
Engine | manufacturer | displacement(ml) | power(kw) |
| Dongfeng Cummins Engine Co., Ltd. | 6700 | 136 |
Emission standards | GB17691-2005Euro3,GB3847-2005 | ||
Axle | 2 | front tread | 1900/1800(mm) |
wheelbase | 4500 | rear tread | 1800(mm) |
tyre | 6 | tyre size | 9.00-20,9.00R20,10.00-20,10.00R20 |
fuel type | diesel | spring | 10/10+8 |
axle load | 5900/9900 | cab passenger | 3 |
Note | Tank capacity:10.0 m³ | ||

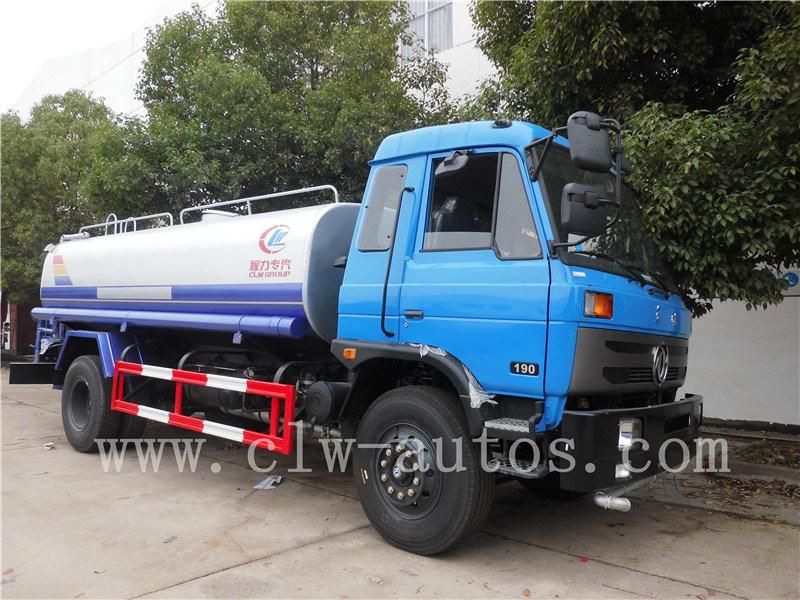

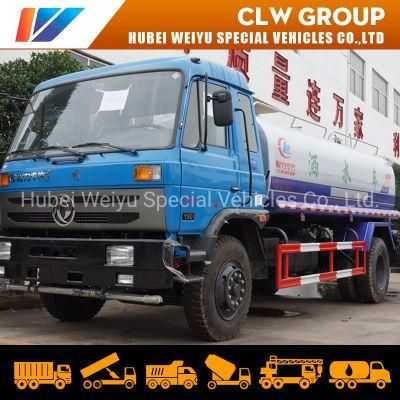

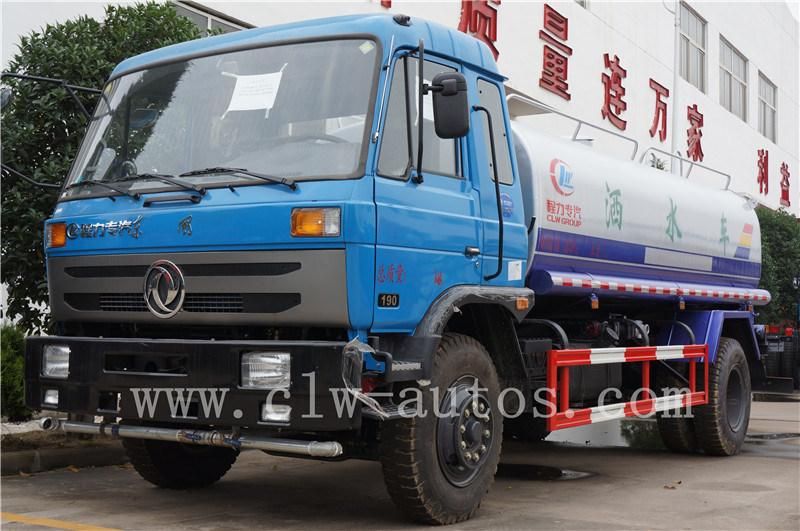

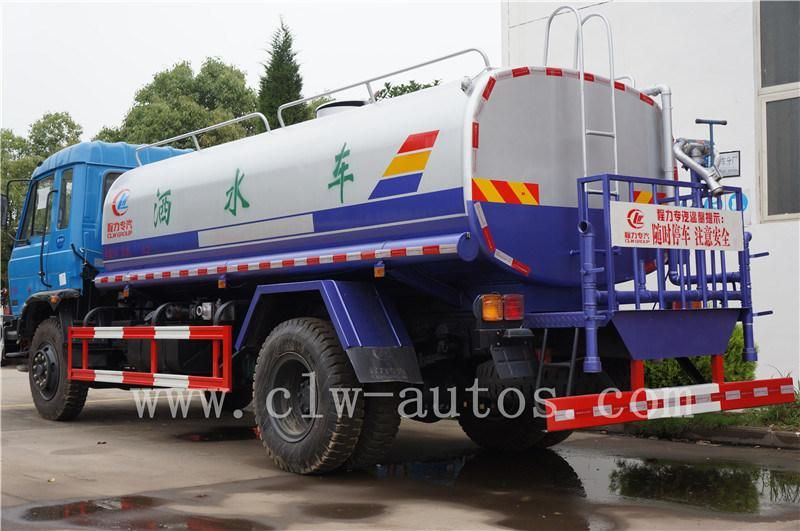

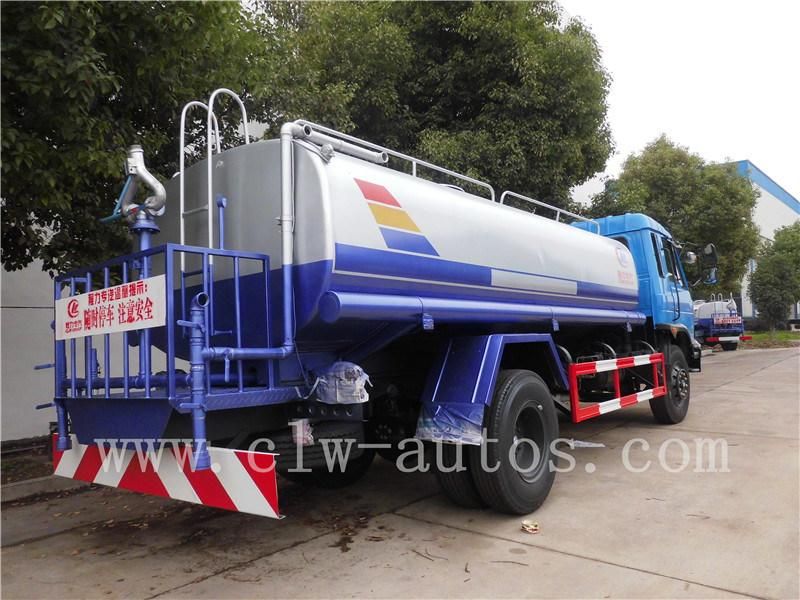

Product Show

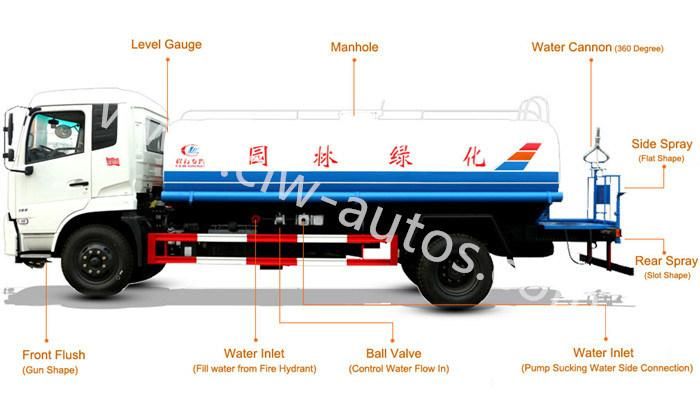

Truck digram

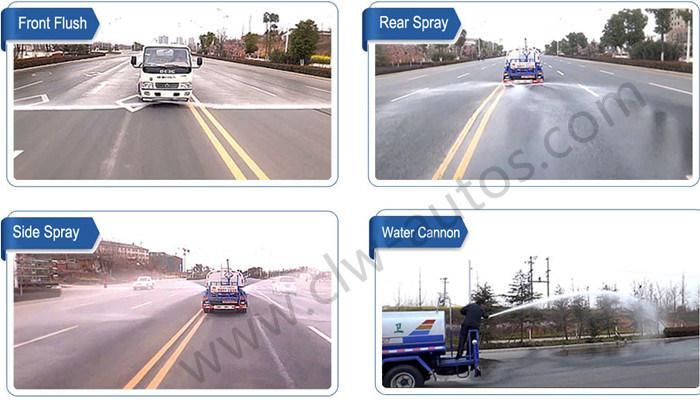

Main Parts

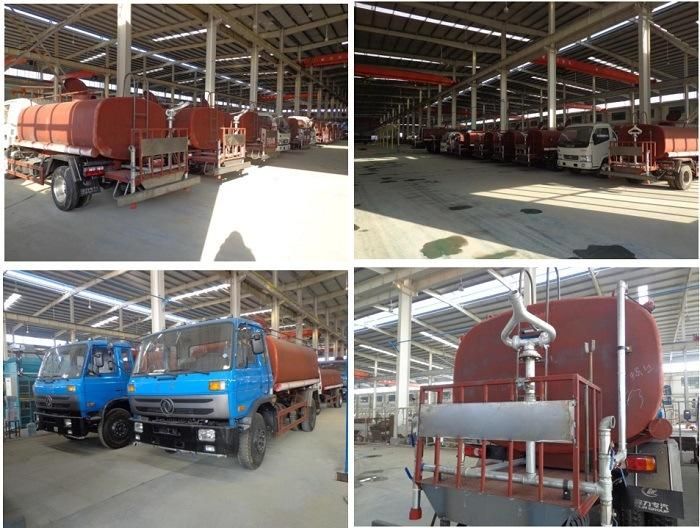

Factory Show
Company Introduction
Certificates
Overseas Exhibition
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
