Specialized Vehicle

China Isuzu Truck with 8 to 12 M3 Mixer Tank

Shanghai CIMC J.T Vehicle Manufacturer Co., Ltd.
  • Certification:ISO9000, CCC, TS16949
  • Transmission Type:Manual
  • Emission Standard:Euro 4
  • Displacement:9
  • Payload:20T
  • Fuel:Diesel

Base Info

  • Model NO.:QL5250
  • Drive Mode:6x4
  • Maximum Horsepower:300-400hp
  • Condition:New
  • Mixer Tank Volume:8-12 Cbm
  • Motor:350 HP
  • Engine:350PS
  • Brand:Isuzu Truck
  • Transport Package:Nude
  • Specification:EMARK, GCC, VCA
  • Trademark:ISUZU
  • Origin:China
  • HS Code:8705400000
  • Production Capacity:20000 Unit Year

Description

Basic Info.

Model NO. QL5250 Drive Mode 6x4 Maximum Horsepower 300-400hp Condition New Mixer Tank Volume 8-12 Cbm Motor 350 HP Engine 350PS Brand Isuzu Truck Transport Package Nude Specification EMARK, GCC, VCA Trademark ISUZU Origin China HS Code 8705400000 Production Capacity 20000 Unit Year

Product Description

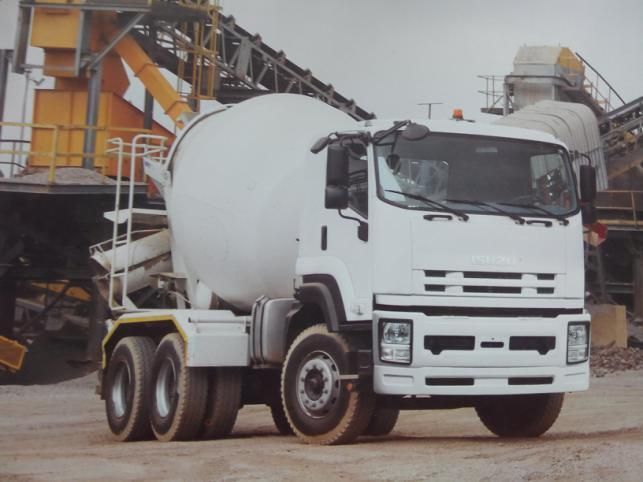

ISUZU MIXER TRUCK WITH 8-12 M3 mixer tank

China Isuzu Truck with 8 to 12 M3 Mixer Tank





Model QL5250ULCZ
Driving type: 6*4 left hand driving

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Displacement: 9.8 L

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R)

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9,  4.1,  4.3

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds



Parameter of the Mixer Tanker Agitating Volume m³ 8
Charge speed  m³/min ≥3
Discharge speed m³/min ≥2
Surplus % ≤0.5
Drum speed rpm 0~16
Drum inclination  º 15º
Drive system Decelerator ZF Germany P5300
Pump EATON USA 5423-159
Hydraulic motor EATON USA 5323-138
Water supply system Water tank volume L/Form of 400/Electric water pump
