Factory Directly Sell Emergency Monitoring Ambulance
Nanjing Poweam Medical Co., Ltd.- Certification：ISO9000, CE
- Transmission Type：Manual
- Fuel：Diesel
- Emission Standard：Euro 2
- Length：＜3m
- Medical Equipment：With Medical Equipment
Base Info
- Model NO.：XML5035
- Horsepower：<100hp
- Axle：Single
- Condition：New
- Product Name：Emergency Stretcher Ambulance
- Engine：Electronic Fuel Injection
- Brake：Front Disc , Rear Drum
- Transport Package：Unpacked
- Specification：2200mm*1400mm
- Trademark：Poweam
- Origin：China
- HS Code：9402900000
- Production Capacity：200 Sets,Month
Description
Basic Info.
Model NO. XML5035 Horsepower <100hp Axle Single Condition New Product Name Emergency Stretcher Ambulance Engine Electronic Fuel Injection Brake Front Disc / Rear Drum Transport Package Unpacked Specification 2200mm*1400mm Trademark Poweam Origin China HS Code 9402900000 Production Capacity 200 Sets/MonthProduct Description
Factory Directly Sell Emergency stretcher ambulanceSpecification:
A | Technical specs of vehicle Chassis model: XML5035 | |
| Turning diameter(m):11 | ||
| Wheelbase (mm):2590 | ||
| Overall dimensions (mm): 4950(5030 new type optional)×1700×2420 | ||
| Dimension of patient's compartment (mm):2900×1540×1600 | ||
| Complete vehicle curb mass:(kg):1755 | ||
| GVW (kg):2860 | ||
| Engine Model:V20 | ||
Safety system: ABS+EBD, Driver airbag(optional) | ||
Fuel type: Petrol | ||
| Fuel consumption (L):11 | ||
| Engine type: electronic fuel injection | ||
| Displacement (ml.): 2237 | ||
| Emission standard:GB18352.5-2013 China | ||
| Max Power (kw): 81 | ||
Max. torque (Nm): 180 | ||
| Gearbox:5 speed, manual | ||
| Front overhang/Rear overhang:1220/1140 1300/1140 (mm) | ||
Front wheel tread/Rear wheel tread: 1450/1430 |
| Brake: front disc / rear drum | ||
| Max. speed (Km/h):130 | ||
| Steering system: gear, rack power-assisted steering | ||
| Fuel tank capacity(L):70 Tyre: 185R14C, 195/70R15C Meridian vacuum tyre | ||
B | Standard configuration of vehicle | |
1 | Electric side mirror | |
2 | Power windows | |
3 | Vehicle-mounted radio | |
4 | Central control door lock(remote key is optional) | |
5 | Hand-free Intercom system between driver's cab and patient's compartment | |
6 | 2 seats in driver's cab | |
7 | Upward open rear door | |
C | Air conditioner and lighting system | |
1 | Vehicle-mounted air conditioner in driver's cab | 1 |
2 | Vehicle-mounted air conditioner in patient's compartment | 1 |
3 | Ventilation fan mounted on the roof of patient's compartment | 1 |
4 | Illumination lights in patient's compartment | 4 |
5 | 1 illumination spotlight in interior rear side of vehicle | 1 |
6 | Ultraviolet radiation disinfector light | 1 |
D | Central power supply distribution system | |
1 | Automatic charging system | 1 |
2 | 10m mobile cable | 1 |
3 | 12V outlets in patient's compartment | 2 |
4 | 220V outlets in patient's compartment | 2 |
5 | 230V/16A waterproof outside outlet with protection cover | 1 |
6 | 12V DC power supply system | 1 |
7 | Intelligent inverted power supply system(12V -220V) | 1 |
8 | Central control system | 1 |
E | Emergency Alarm System | |
1 | Control plate of siren and alarm lamp mounted in driver's cab | 1 |
2 | Adjustable volume alarm apparatus | 1 |
3 | 100W loud speaker | 1 |
4 | Blue Flashing alarm light bar mounted on the front roof of vehicle | 1 |

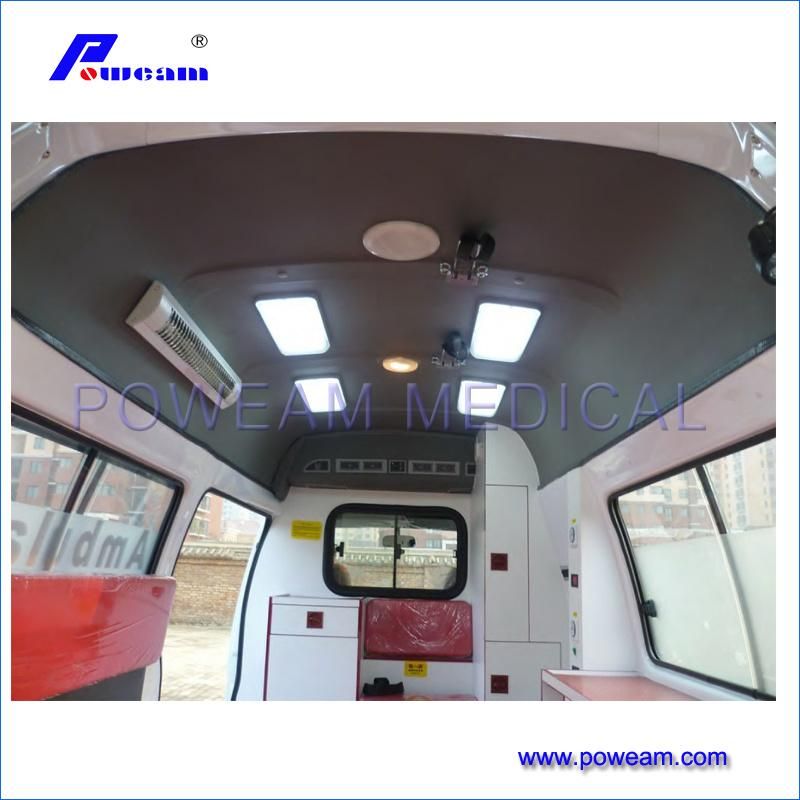

F | Patient's Compartment | |
1 | Compartment wall with PVC materials between driver's cab and patient's compartment, a glass window in wall to make observation | |
2 | A foldable doctor seat mounted to floor near to compartment wall | 1 |
3 | Long bench one piece (suitable for 3 people) with safe belts, mounted in left side of patient's compartment | 1 |
4 | Oxygen bottles (10L) ,mounted in right side of vehicle | 2 |
5 | Oxygen flow controller | 2 |
6 | Imported interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. | |
7 | Covered perimeter of patient's compartment, dust-proof, anti-skidding, washable | |
8 | Ventilation fan mounted in the interior roof of patient's compartment | 1 |
9 | Illuminating lights mounted to the interior roof of patient's compartment | 4 |
10 | Sliding transfusion hanging bracket mounted to the interior roof of patient's compartment | 1 |
11 | First-aid box cabinet installed in patient's compartment | |
12 | Multi-functional cabinet, used for storage of medicine and medical equipment, installed behind partition wall | 1 |
13 | Medicine cabinet (with drawers), mounted to the right front side of patient's compartment | 1 |
14 | Strong blue or red reflective strip in waist of body | |
15 | 220V outside power supply | 1 |
16 | Mobile Self-lifting stretcher | 1 |
17 | Scoop stretcher | 1 |
