• Model NO.：CLW
• LED Tube Core Type：II
• Self-powered：Self-powered
• LED Screen Type：PH12
• Power Supply Mode：Own Generator-powered
• Product Name：Mini Outdoor Mobile LED Display Advertising Truck
• Driving Type：LHD and Rhd
• Drive Mode：4X2
• Cab：Single Row Left or Right Hand Drive with AC
• Wheelbase：4700
• Color：Yellow Red White Optional
• Emission Standard：Euro III
• Overall Dimension：7970X2190X3730
• Max Speed：95km,H
• Horse Power：103
• Transport Package：Waxed or Naked Before on Board
• Specification：ISO, CCC, CE CE, ASME, ASTM, EEC
• Trademark：CLW BRAND
• Origin：Hubei Suizhou
• Production Capacity：500sets,Month

Vehicle parametersOverall dimension length/width/height (mm)7970×2190×3730Gross weight (kg)8445curb weight(kg)7990Front suspension / rear suspension(mm)1150/2120Approach/departure angle23/13Max speed95ChassisChassis modelBJ1089VDPFG-SDWheelbase (mm)4700Tyre specification8.25-16,8.25R16,8.25-20,8.25R20Fuel typeDieselEngine parametersEngineCA4DF3-14E3Exhaust/ Power (ml/kw)4752/103Engine ManufacturerGuangxi yuchai machine Co., LTDLifting systemHydraulic pump which can lift the screen up for 2mBrake systemAir brake systemScreen Controlling SystemSynchronized controlling systemPower parameterThree phases five wires, 380V, 50A, Average power consumption 0.5kwh/m². It is equipped with a 16kw generator.Screen ParameterOutdoor and full color, Resolution 480x240; Dots Brightness≥5500nits/m2;Pixel Density 10000dots/ m2; Lifespan:100,000hours.

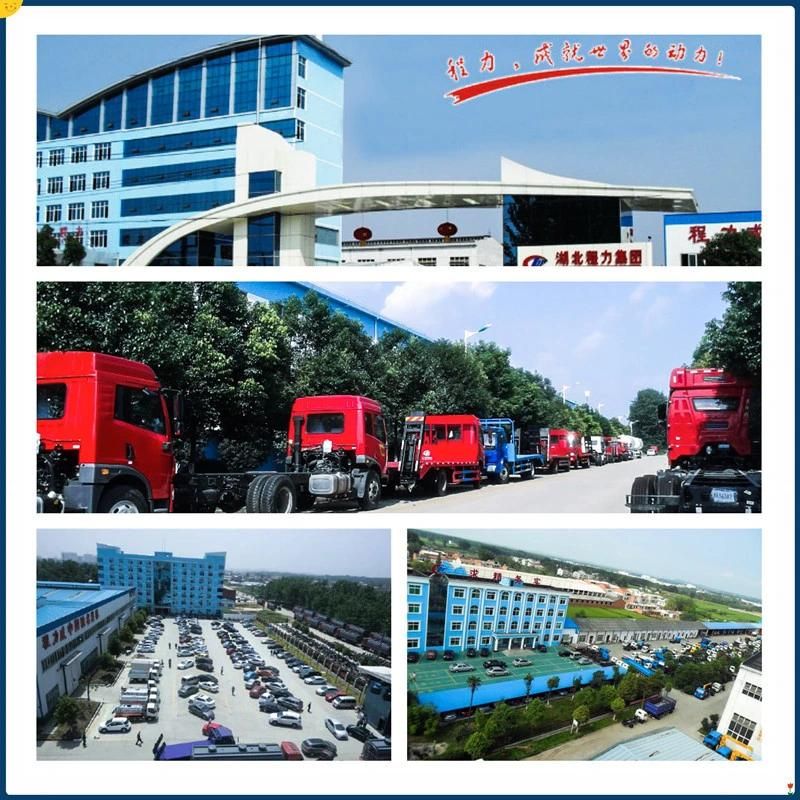

ABOUT US
 Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
   1.Quality control: our company truck pass ISO,CCC,BV certification.
    2.Design capacity :Our factory have over 200 technicians and designers.
    3. Exhibition: our factory attend Canton Fair every year.
    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
    5.Our company cooperate with famous chassis manufacturers, such as DongFeng, HOWO,Foton,FAW.

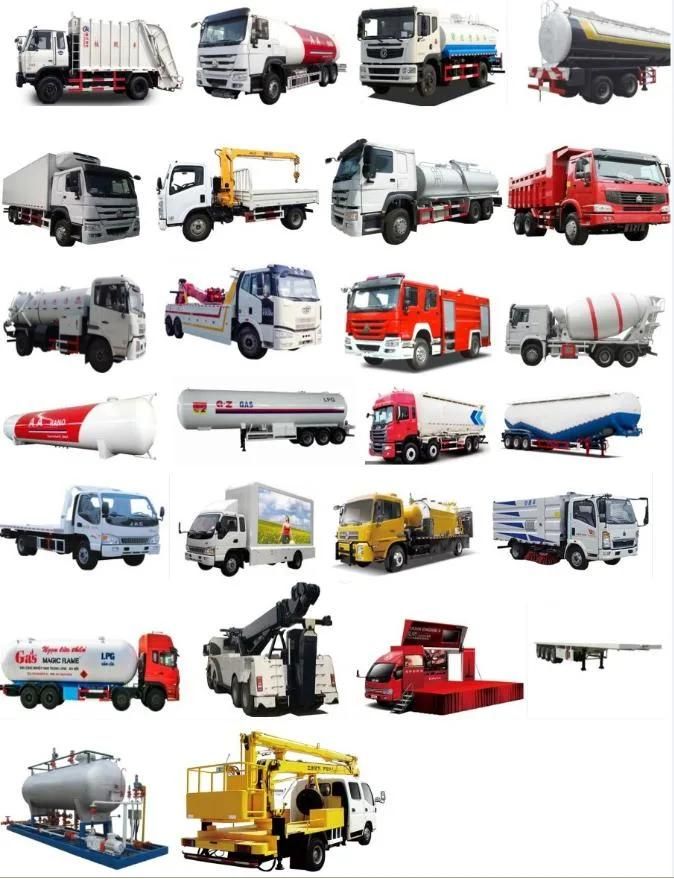

Chengli Special automobile Co.,Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck



Our clients



FAQ

1. Q: How about the quality of trucks of your factory?
    A:  Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
   A: Chengli special automobile Co.,Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
    A: CLW Heavy Industry Co., Ltd is one of the most  important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and  FAW, which provides guarantees for reasonable price and good  quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
