• Model NO.：ZZ1257M5617
• Bearing Capacity：Small
• Car Type：Van
• Condition：New
• Warranty：One Year or 100000km Which Comes First
• Dumping Type：Bidirection Dumping Style
• Color：Red, Yellow, Green, White, Blue.etc
• Usage：for Construction, Transportation and Mining Work
• Transport Package：Nude Packing After Painted Wax
• Specification：heavy duty truck
• Trademark：SINOTRUK New Yellow River
• Origin：China Main Land
• HS Code：8418699090
• Production Capacity：5000unites,Month

Cabin

Driving type 4x2

With three seats, With air conditioner, Left hand driven.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

8700×2490×3850

Wheel base  (mm)

4500

Wheel track  (front/rear) (mm)

1506/1466

Approach/Departure angle(°)

19/15

Weight in KGS

Tare Weight

5000

Loading Capacity

15000

Front axles loading capacity

5000

Rear axles loading capacity

10000

Max. driving speed(km/h)

90

Engine

Brand

YUChai

Model

YC4E160-33

Type

4-stroke direct injection , 4-cylinder in-line with water cooling

Horse Power(HP)

160HP

Emission standard

Euro 2

Gearbox

Manual type, 5 Forwards & 1 Reverse

Steering Gear

Power steering

Tire

7.00-16 with one spare tire , 7 pieces

Brake System

Service brake: dual circuit compressed air brake

Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

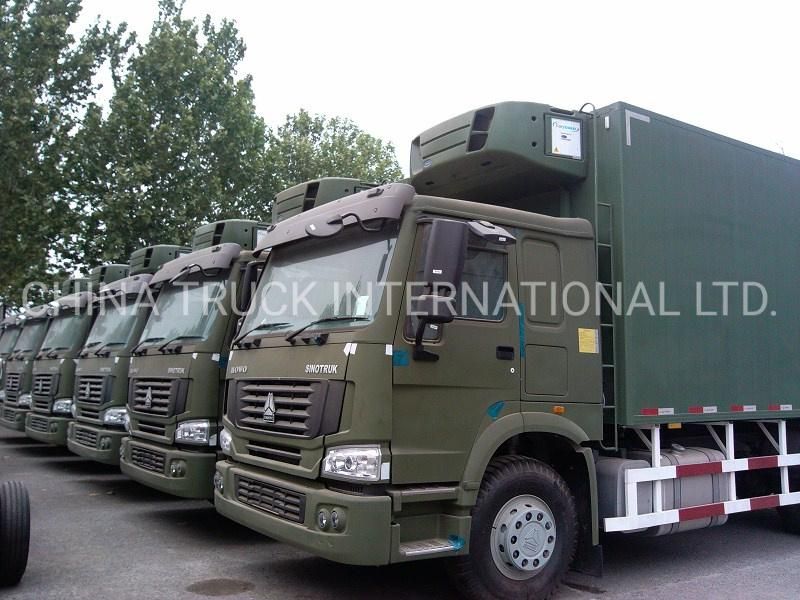

Refrigerator Van

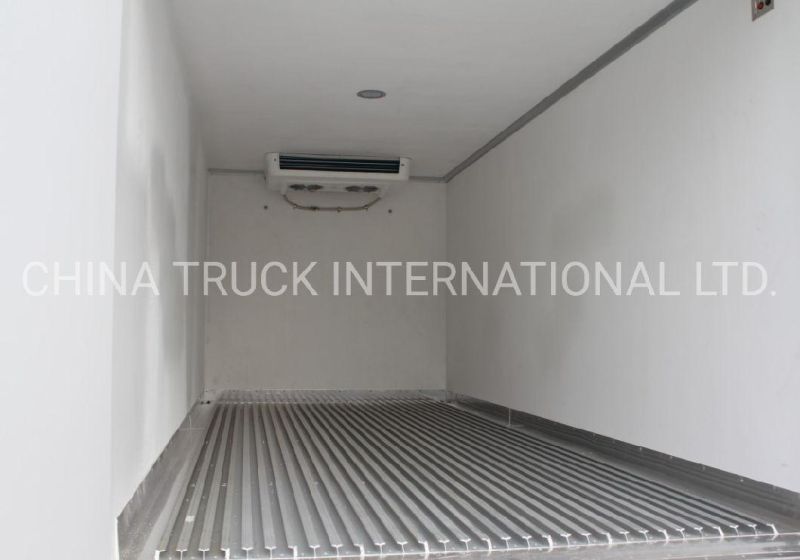

Refrigerator Van body



Dimensions(mm)

6100*1910*1900 mm

Van material

Glass fiber reinforced plastic

Insulating layer material

Polyurethane foam

Insulating layer thickness(mm)

80 mm

Self Contained Cooling Unit

Brand

American brand Carrier

Model

VIENT0350

Refrigerated Temperature(°)

-18ºC-0ºC

2. Our Factory
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
A technology R&D system built by Sinotruk covering the whole group taking R&D Center as dominant and matching
with manufacturing business divisions undertakes the  key national R&D projects, and cooperate and communicate
with top research and academic institutes in the world. It has become the  important R&D base and technical supporting
institute for  Product R&D, Experiment& Research and Quality Inspection of China's heavy duty truck industry.
3. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO




4. Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions


5. FAQ

Q1: I don't want this configuration

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1 unit.

Q3:  Production period?

A: (Truck & trailer) Within 30 days since the moment we got your down payment       (Parts)  Within 7 days since the moment we got your down payment

Q4: Payment term?

A: (Truck & trailer)  30% T/T as deposit, the balance should be paid before delivery. or L/C       (Parts)  100% T/T should be paid before delivery

Q5: Shipping?

A: (Truck & trailer)       by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.)       by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.)       (Parts)       by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

6. Warranty
1. One year quality guarantee or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

7. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of
Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
