• Model NO.：ZZ3257N4347W
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Sinotruk
• Models：Medium
• Usage：Compression Type
• Condition：New
• Warranty：12 Months or 100000km, According Which Comes First
• Color：Red, Yellow, Green, White, Blue and Others
• Driver Seat：Air Suspension Seat
• Transport Package：Nude Packing After Painted Wax
• Specification：10745, 10545, 10680, 10245x2496x3450, 3800
• Trademark：SINOTRUK-HOWO
• Origin：China
• HS Code：8704230090
• Production Capacity：5000units,Month

Products Technical Specification

Type

4*2 Garbage Compactor Truck

Brand

HOWO

Cab

Single row

Vehicle Description

Overall dimensions(mm)

6500*2280*2680

G.V.W (kg)

8280

Curb weight(vehicle) (kg)

6205

Loading capacity (kg)

5000-8000

Max speed (Km/h)

95

Engine Description

Engine model

CY4102-CE40

Maximum power

83kw/113hp

Displacement (lit)

3856

Chassis Description

Chassis Model

CSC5087ZYSZ

Wheel base(mm)

3360

F/R track base(mm)

1750/1640

F/R overhang(mm)

1180/2170

Approach/Departure angle(°)

20/10

Spring plate

11/9+7

Front axle / rear axle load capacity(t)

2.2/5

Type of fuel

Diesel

Gear box

5-speed with over drive

Brake system

Air braking

Operation control system

Power steering wheel

Electric system

24V

Tires&Tire quantity

7.50-16 & 6+1

Compactor Description

Effective dustbin volume(m3)

6

Dustbin material

Q235 Carbon Steel

Thickness(mm)

Side plate:4mm;Bottom plate:5mm

Precompressor capacity(m3)

1

Rated pressure of hydraulic system(Mpa)

16

The loading device mouth height from the ground(mm)

900

Precompressor working period(s)

6-8

Precompressor lifting period(s)

15

Pushing the board to unloading garbage period(s)

30

Pushing board from

Hydraulic

Effluent tank capacity(L)

6

Dustbin tank capacity(L)

250

Hydraulic oil tank capacity(L)

80

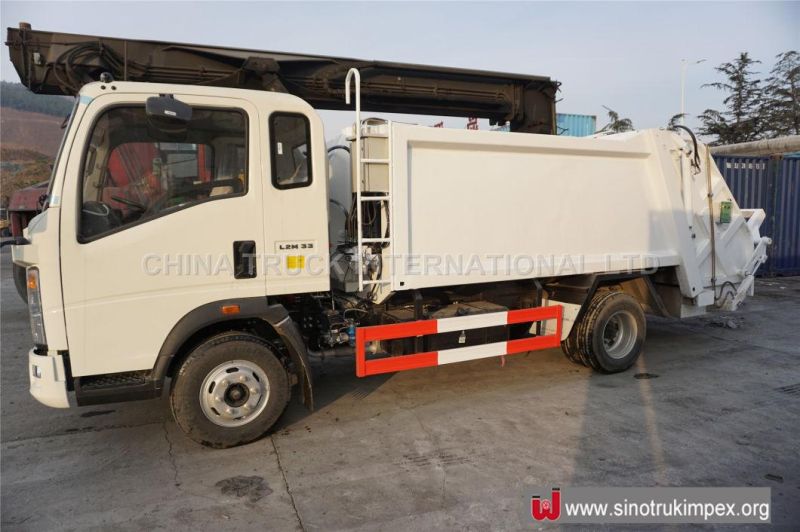

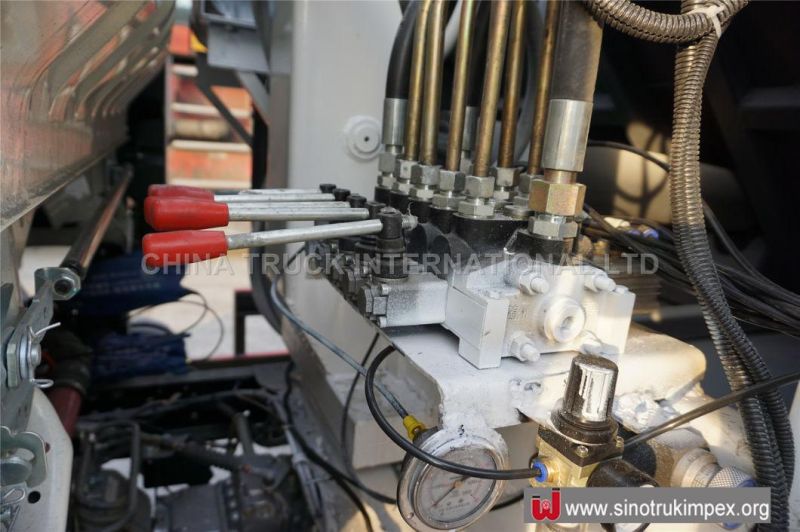

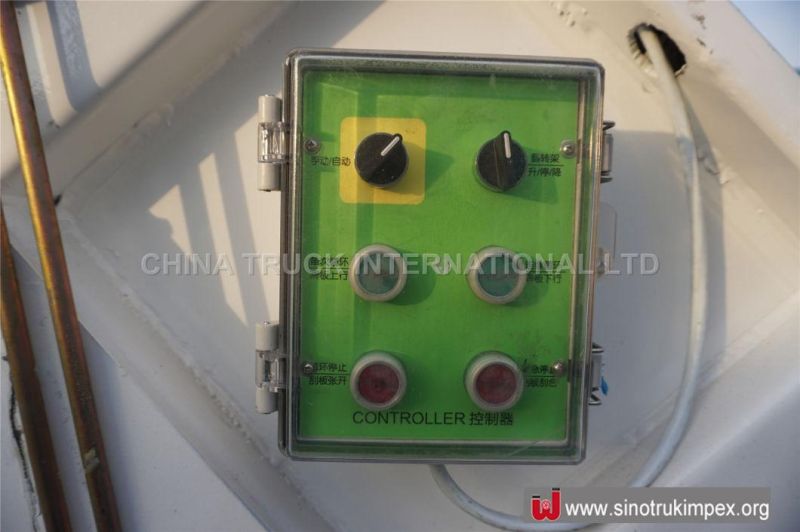

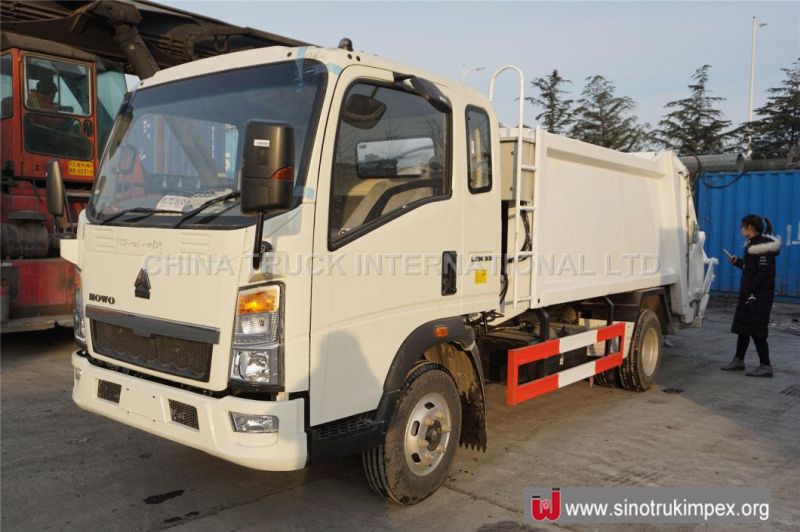

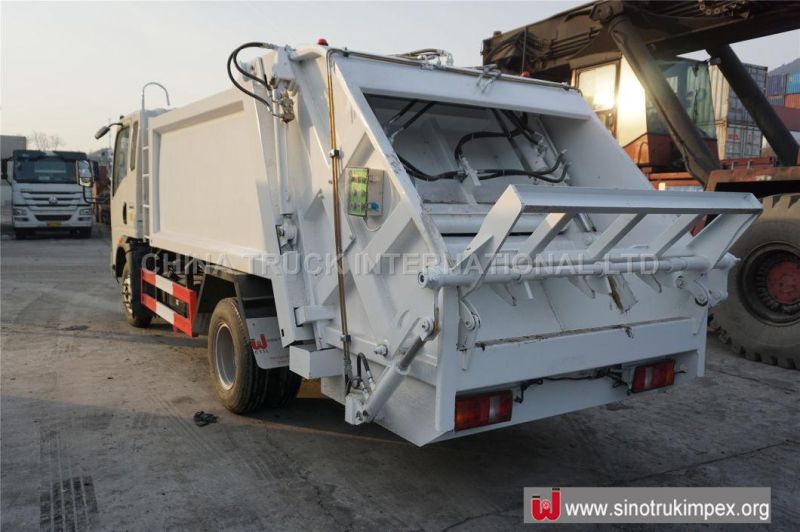

2. Compactor Garbage Truck Photos

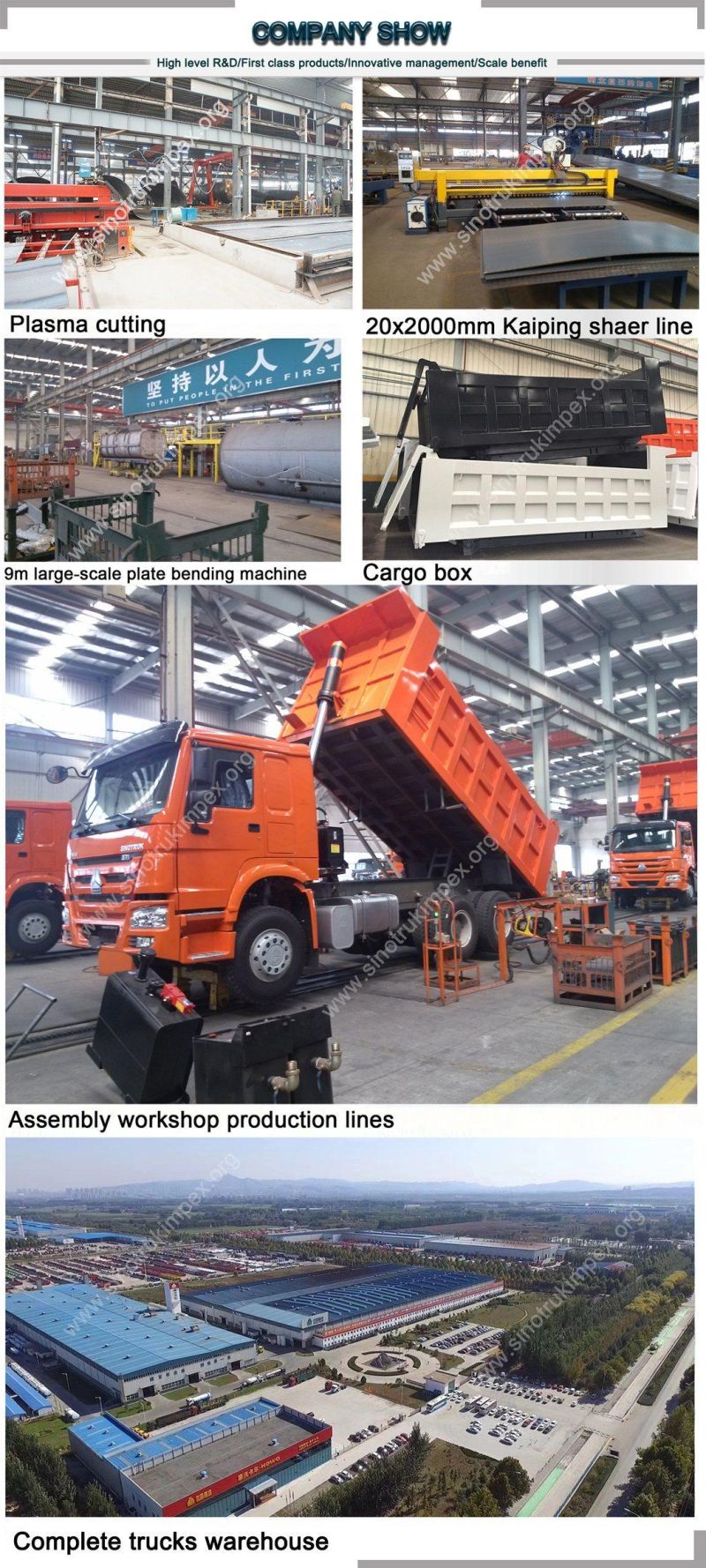

4. Our Factory

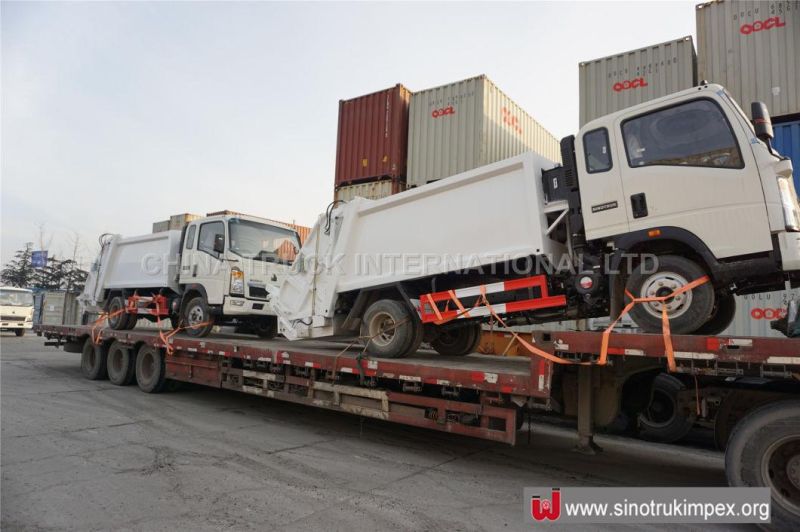

5. Packing: Nude packing after painting wax or according to your requirement.

Shipping:By bulk cargo carrier, RORO

6. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 100 countries and regions
