Factory Price Isuzu Fvr 4X2 6 Wheel 241 HP Fire Fighting Sprinkler Truck
China Truck International Limited- Volume：10001 - 15000L
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 5
- Transmission Type：Automatic
- Payload：12t
- Fuel：Diesel
Base Info
- Drive Wheel：4×2
- Engine Capacity：6 - 8L
- Condition：New
- Engine：6HK1-TCL
- Cylinder No.：4
- Transmission：Qingling Mld-6q
- Wheelbase：4500mm
- Tire Size：11r20
- Power Steering：Yes
- ABS：Yes
- Free Maintenance Battery：Yes
- Displacement：7.79L
- Overal Dimension：8200X2500X2947mm
- Transport Package：Nude Packing
- Specification：ISO, TS16949, CCC
- Trademark：ISUZU
- Origin：China
- HS Code：8704230000
- Production Capacity：1000PCS,Month
Description
Vehicle ParametersVehicle Model: QL1180XMFRY Overall Dimension(L x W x H): 8200x2500x2947mm Curb Weight: 5500Kg GVW: 18000Kg Wheelbase: 4500mm Drive Type: 4x2 Engine Engine Model: 6HK1-TCL Engine Power: 177Kw Delivery Capacity: 7790ml Horsepower: 241Ps Emission standard Euro5 Transmission Transmission: QingLing MLD-6Q Forword Gear: 6 Speed Gear Backward Gear: 1 Speed Gear Seats Front Seat: 3 Chassis Front Wheel Distance: 1960mm Rear Wheel Distance: 1855mm Axle Loads: Double Axles Tires: 7 Tire Model: 11R20 Configuration: Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance Battery, Data Recorder
TANK SPECIFICATION :
TANK ACCESSORIES AND FITTINGS :
2.More Photos of ISUZU Water Sprinkler Truck :
3.Packing:
By Bulk
By Ro-Ro
By Frame
Container
4.Our Main Products:
Our products include full series Truck&Trailers,such as:
*Dump Truck
*Tractor Truck
*Container chassis semi-trailer series
*Cargo semi-trailer series
*Tipper semi-trailer series
*Low bed trailer series
*Liquid tanker series
*Power tank transport series
*Concrete mixer series
*LPG TANKS
.etc,and spare parts
5.Our Advantages:
(1)Products Quality Certification SGS CCC ISO
(2)Perfect after-sale service
(3)More than 20 years' experience as a manufacturer
(4)Customized products available with us
(5)Export to more than 90 countries and regions
6.FAQ
Q1: What about your products quality ?
A: Quality is our culture! "Our factory has advanced production technology and management team!
We always attach great importance to quality controlling from the very beginning!
Q 2: Can I have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
And we are well capable in offering overseas after-sales service. Besides, we also provide rational
packing and shipping program,let shipment save money and security.
Q 4: How to guarantee customers get the goods smoothly after they pay ?
A: Don't worry, dear. We have been in this field for more than 8 years, we will send you production photos once in a while, and we will help you to book the latest ship.
Q 5: What's the delivery time ?
A: The delivery time is within 30 working days after receiving your advance payment.
Q 6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
Q 7: Do you have any used truck and semi trailer for sale ?
A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
show you our stock if you need.
Q 8: What logistics ways we can work for shipment?
A: We can ship construction machinery by various transportation tools.
(1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.,we can ship construction machinery by road or railway.
(3) For light spare parts in urgent demand, we can ship it by international courier service, such as
DHL, TNT, UPS, or Fedex.
7.Company Information:
China Truck International Limited was founded in 2011,located in Yangzhou,China.We focus on trucks,construction machinery and all the parts exporting.Our products are exported to more than 100 countries and regions,such us South America,Middle East,Europe and Asia.Our annual sales amount is about 20,000,000 dollars.
TANK SPECIFICATION :
| Capacity: | 12000L +3~5%. |
| Compartments: | One compartment |
| Shape of tank: | Ellipse, double "D". |
| Tank material: | Carbon steel, the thickness of the shell is 4mm nominal ; |
| Dish ends and bulkhead material: | Carbon steel, dished and flanged; |
| Painting: | Outer surface paint. Color according to the customer's requirement. |
| Test pressure designed: | 36kpa. |
TANK ACCESSORIES AND FITTINGS :
| Manhole: | Two 20" diameter manholes. |
| Bottom loading system: | One 3" stainless steel pipe line Pipe line outlet is lies at right side of tank, located in the front of rear axle. Each pipe line outlet, a 3" stainless ball valve is fixed. |
| Measurement ruler: | NIL |
| Vapour Vent: | NIL. |
| Vapour Recovery Piping: | NIL |
| Vapour Recovery Adaptor: | NIL |
| Overfill Prevention: | NIL |
| Ladder: | A detachable Carbon steel ladder is equipped at the front of the tank |
| Walkway: | Anti-skid walk way along the entire length of tank. |
| Handrail: | NIL. |
| Hose carriers: | Two pcs. Carbon steel |
| Hose: | Two pcs. 3"x4m, 3" carbon steel female camlock coupling on both end. |
| Pump: | Stainless steel material, driven by PTO |
| Fire extinguisher box: | Two boxes are fixed on the left and right side of the tank. |
| Fire extinguisher: | Two 4kg dry powder fire extinguisher. |
| Fender: | Plastic material mudguards with plastic flap. |
| Tool Box: | Supplied by CIMC |
| Drain pipe; | Mild Steel |
| other: | One earthing reel. |
| Side guard: | Both. Manufacture's standard design |
| Rear bumper: | Manufacture's standard design |

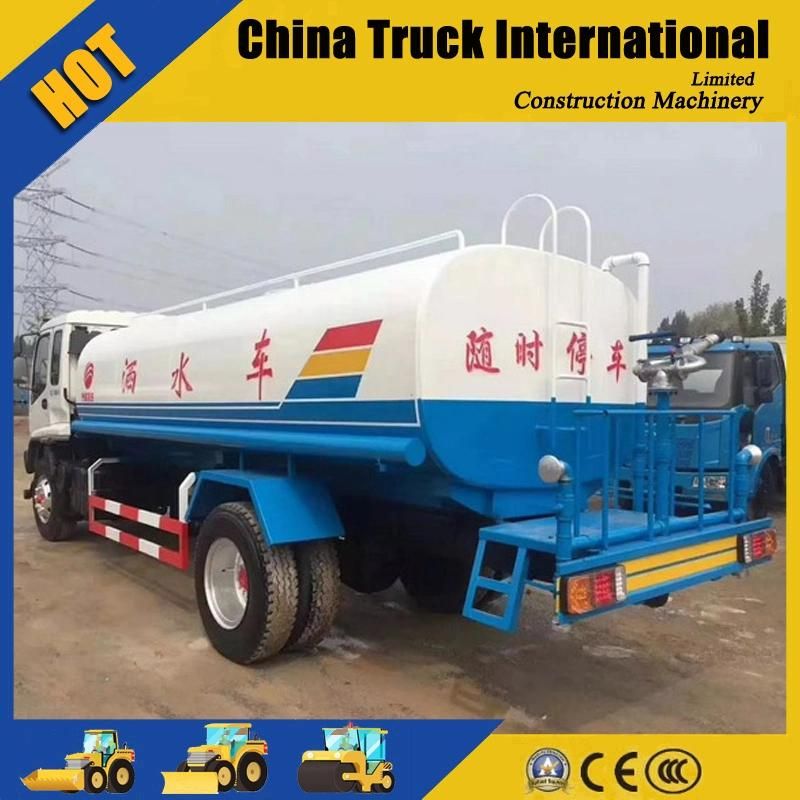

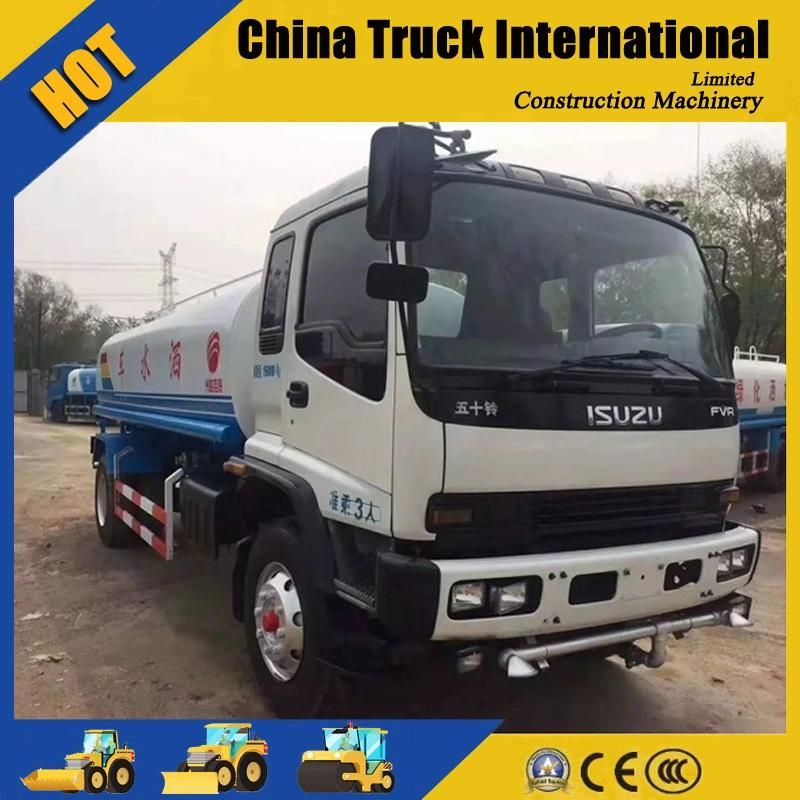

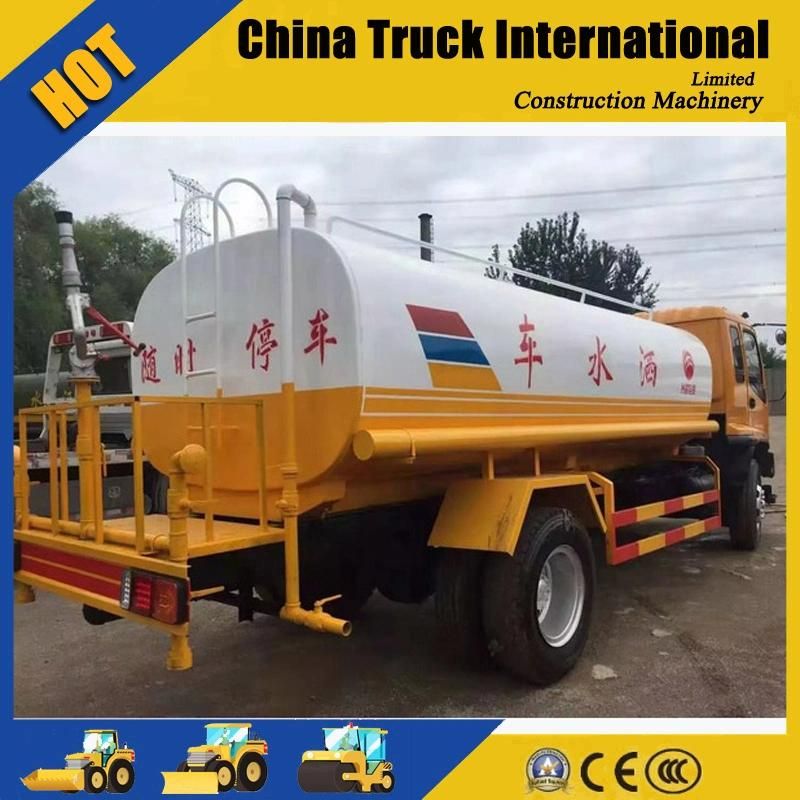

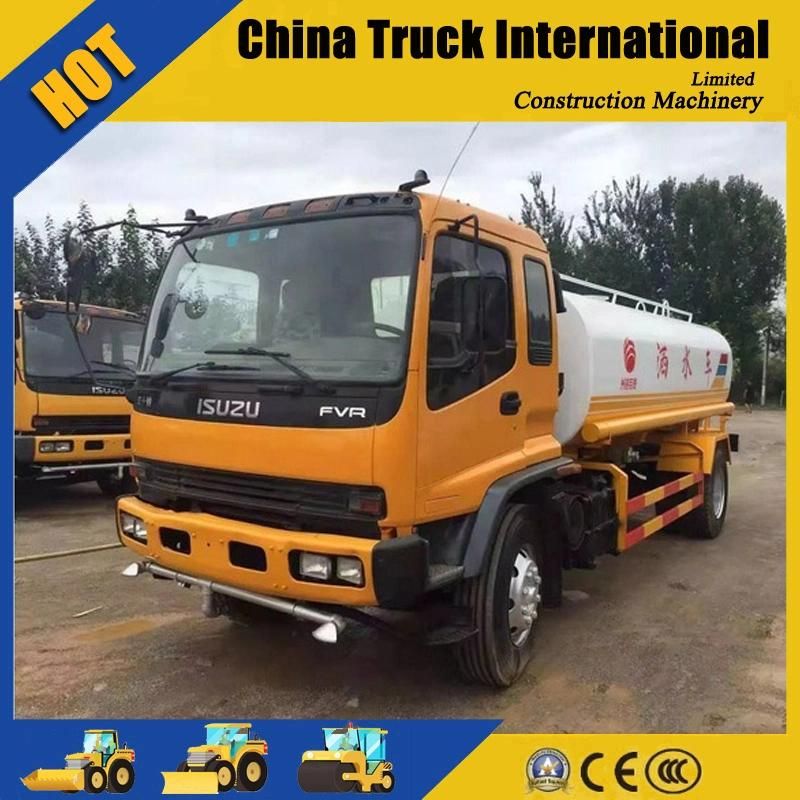

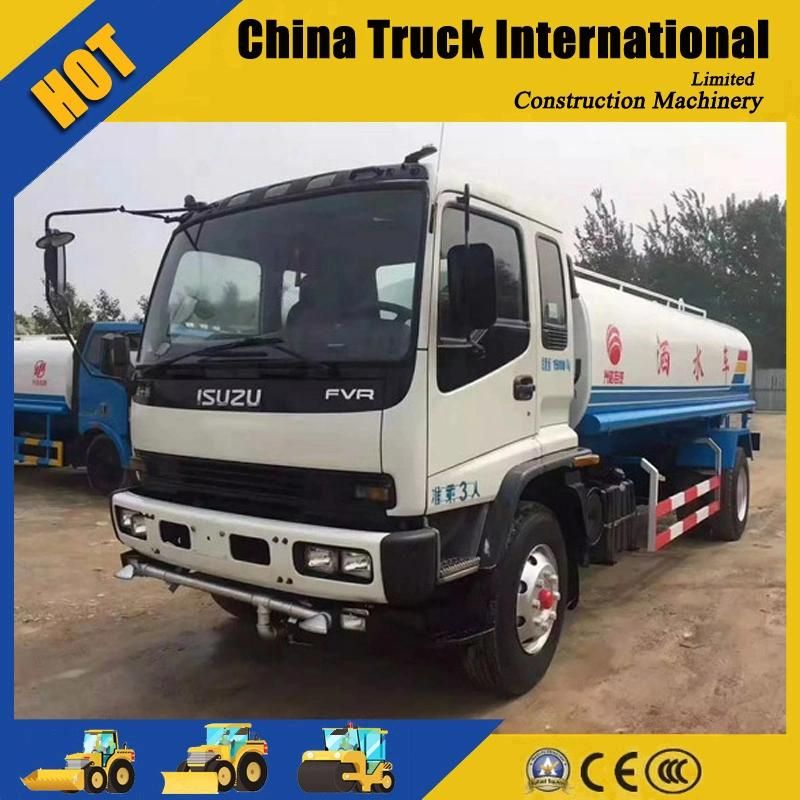

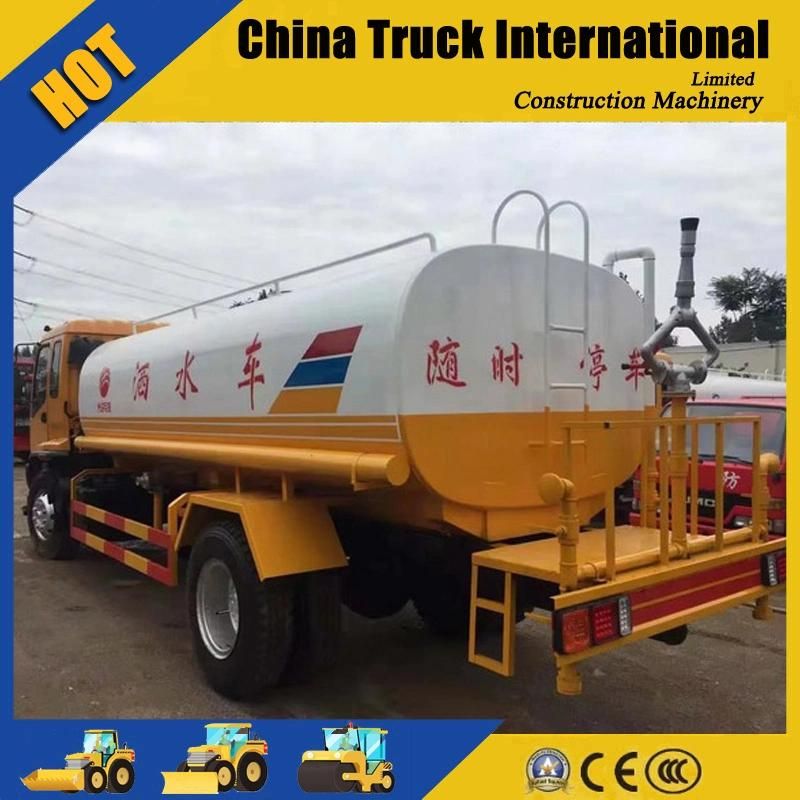

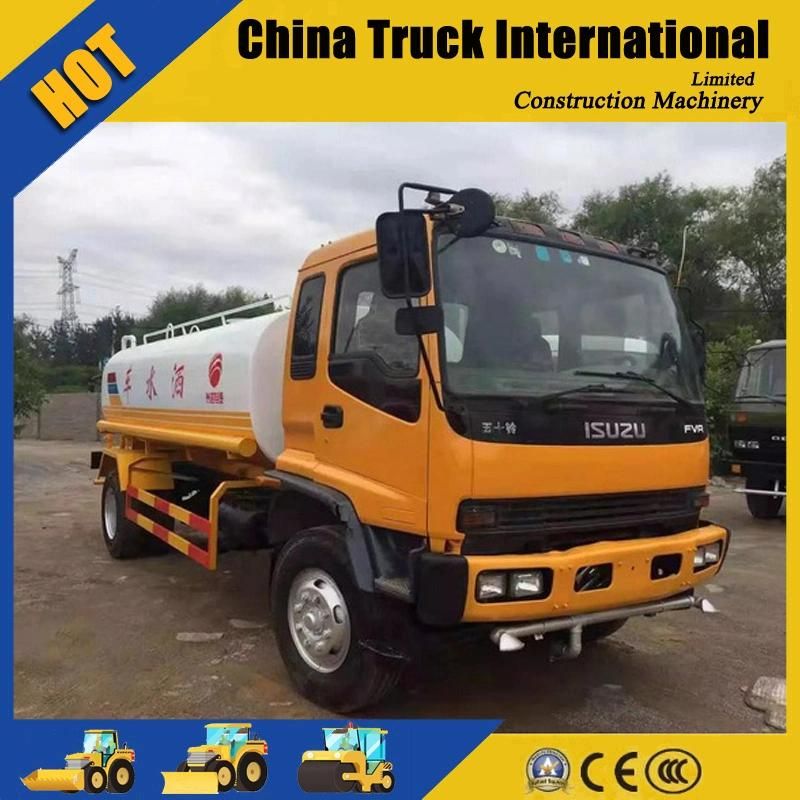

2.More Photos of ISUZU Water Sprinkler Truck :
