• Brand：SINOTRUK
• Condition：New
• Wheel Base：2050+4400+1400 mm
• Gearbox：12 Forward & 2 Reverse
• Max. Loading Weight：25000kg
• Winch Rating Pulling Capacity：20000 Kg
• Hydraulic Tailgate：1200 mm
• Wire Rope：40 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Towing Fork：4 Sets
• Too Box：1 Set
• Auxiliary Lamp：1 Set
• Yellow Warning Lamp：1 Set
• Working Video：Yes
• User Manual：Yes
• Transport Package：Bulk Ship, RO-RO
• Specification：113800x2550x3250 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 CabinDriving type 8x4, Left hand driving HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for reference.Vehicle Main DimensionsOverall dimensions (L x W x H) mm11460×2500×3270Wheel base  (mm)1800+4600+1350Wheel track  (front/rear) (mm)2022/1830/1830Approach/Departure angle(°)16/18Weight in KGSTare Weight24870payload30000Front axles loading capacity2x9000Rear axles loading capacity2x16000EngineBrandSinotrukModelWD615.47Type4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)371Emission standardEuroGearboxHW19710, 10 Forwards gear & 2 reverse gearTire12R22.5  tubeless tire with one spareClutchReinforced diaphragm clutch, diameter 430 mmSteeringZF8098Oil tank400L                                  Special Device For Wrecker SystemHoisting OrganRated under-pulling capacity40000Max Under-hoisting Capacity (kg)16000Max Under-hoist length (mm)1630Under hoisting work angle-10~85°Lifting Organ
 Max lifting capacity(kg)30000Max lifting high(mm)12000Telescope length(mm)6000Winch15000kgs×2Steel rope50M,Φ22Crane luffing angle5°~  60°Crane rotation angle360°All Rotation
Landing LegDistance between front legs(mm)6100Distance between rear legs(mm)4000

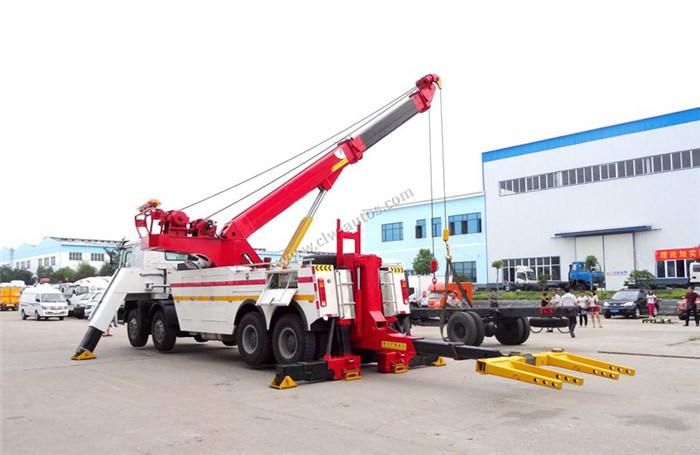

 Truck Details

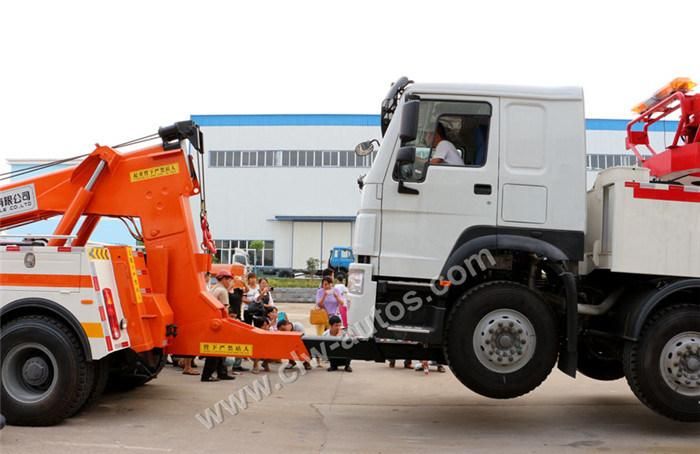

Working Show






Factory Overview




Overseas Exhibition and Local Support
