• Model NO.：CLW5204VX
• Drive Wheel：4x2
• Hoesrpower：156HP
• Condition：New
• Hand Driving：LHD or Rhd
• Dust Capacity：6000 Liters
• Sewage Pump：Vacuum Pump
• Pump Brand：Chinese Famous Brand or Italy Pump
• Pressure：Yes
• Hydraulic Lifting Discharge：Yes
• Suction Hose：6 Meters
• Anti Overflow Level Gauge：Yes
• Cleaning Hose：60 Meters
• Oil and Gas Separator：Yes
• Operating Video：Yes
• Logo：as Customer′s Request
• Warranty：One Year
• Glass Window：Yes
• Oil Gas Separator：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6cbm, 6000liters, 6000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)7360Curb Weight (kg)3590Curb Weight (kg)3640Overall Dimensions L*W*H(mm)6200*2300*2800 Engine BrandQuanchaiFuel TypeDieselPower156HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)3856Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)2500/5000Tire No.6Tire Specification7.00-16/ 7.50R16Wheelbase (mm)3800Axle No.2Gear Box6 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeOil brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)4000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterSuction hose length8 metersTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

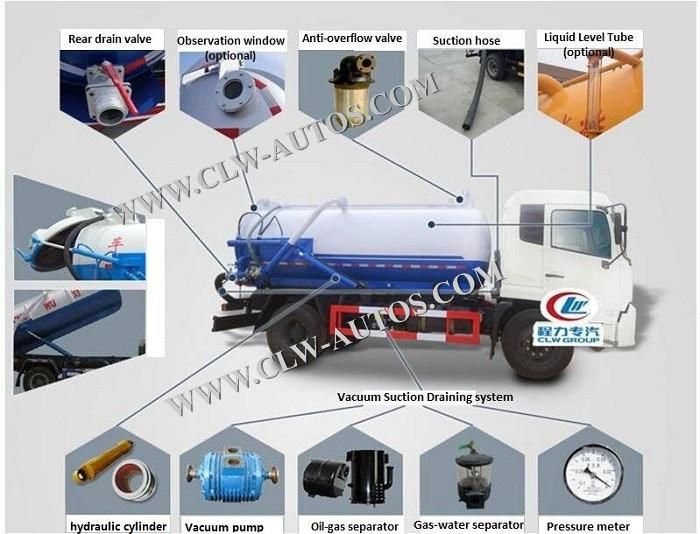

Product Diagram

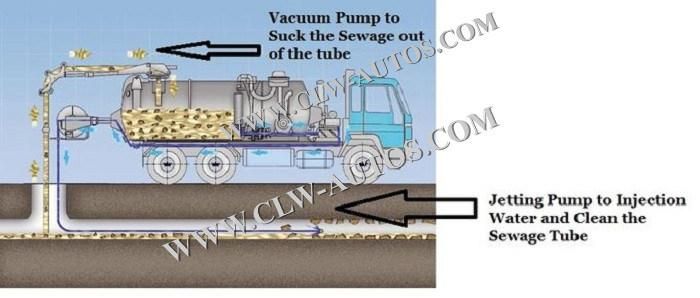

Working Diagram

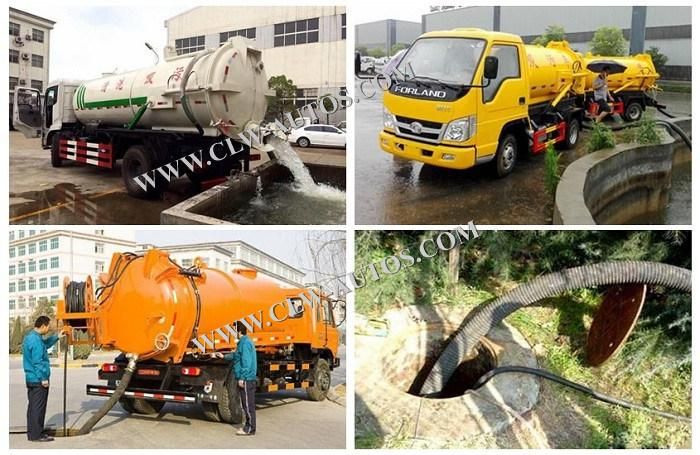

Working Show




Company Introduction




Overseas Exhibition and Local Support




Customer Visiting




Cargo Shipment Methods
