• Model NO.：CLW5368mv
• Drive Wheel：4x2
• Hoesrpower：180 HP
• Condition：New
• Material：Carbon Steel
• Hand Driving：LHD or Rhd
• Sewage Capacity：10000 Liters, 10cbm
• Sewage Pump：Vacuum Pump
• Brand：Chinese Famous Brand or Italy Pump
• Pressure Gauge：Yes
• Glass Window：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow Valve：Yes
• Discharge Valve：Yes
• Hand Washing Device：Optional
• Operating Video：Yes
• Logo：as Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：8300x24900x3380 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)15800Curb Weight (kg)8805Curb Weight (kg)6800Overall Dimensions L*W*H(mm)8300*2490*3380 Engine BrandCumminsFuel TypeDieselPower180 HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)4500Engine Type6 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)4500/9000Tire No.6+1 spareTire Specification9.00R20Wheelbase (mm)4700Axle No.2Gear Box6 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeOil brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)10,000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

Product Diagram

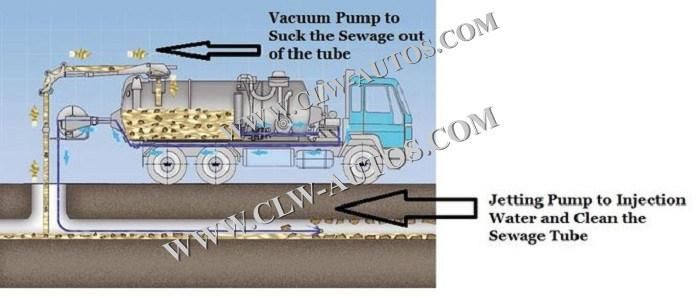

Working Diagram

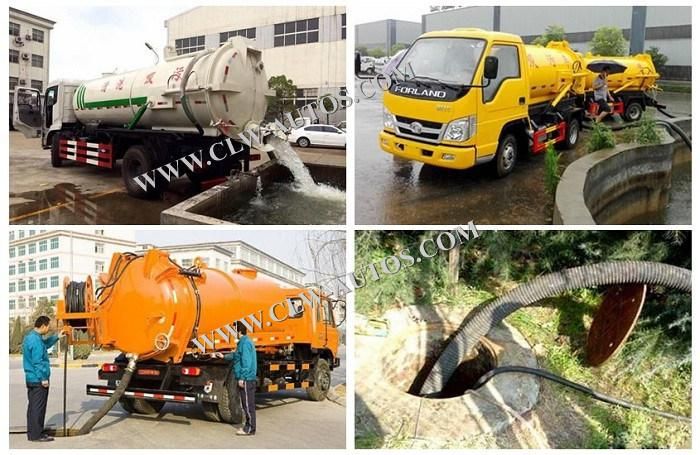

Working Show




Company Introduction




Overseas Exhibition and Local Support




Customer Visiting




Cargo Shipment Methods
