• Model NO.：CLW53257CO
• Transmission Type：Manual
• Payload：5ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Swing Arm Type
• Condition：New
• Engine：190HP Cummins
• Axle Loading：5ton Front, 10ton Rear
• Gearbox：8 Forward & 1 Reverse
• Brake System：Air Brake
• Tire：10.00-20, 10.00r20
• Garbage Container：10cbm
• Material：4mm Bottom, 3mm Side
• Painting：Anti Corrosion Paint
• Hydraulic System：Oil Tank & Cylinder
• Swing Arm：2 Unit Steel
• Valve：Multi-Valves
• Skip Loader：5cbm, 6cbm, 8cbm
• Landing Leg：2 Unit Landing Leg
• Hopper Shape：Square, Triangular, etc
• Hopper Connection：2 Strong Chain
• Transport Package：Naked Pack with Wax
• Specification：5Ton ~ 7Ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7370X2470X3330 (mm)Gross Vehicle Weight12490(Kg)Curb Weight6295(Kg)Chassis SpecificationChassis BrandDongfeng145Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelB170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power125KW/170HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearboxFast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3950mmFront/Rear Axle Loading4990/7500(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00-20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 10CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

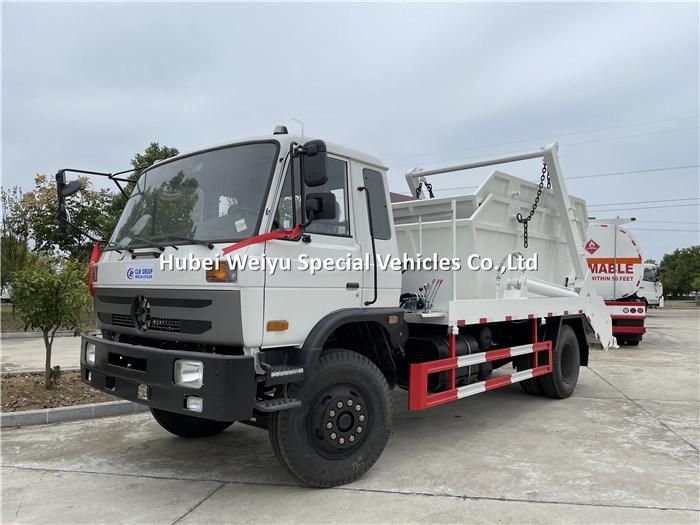

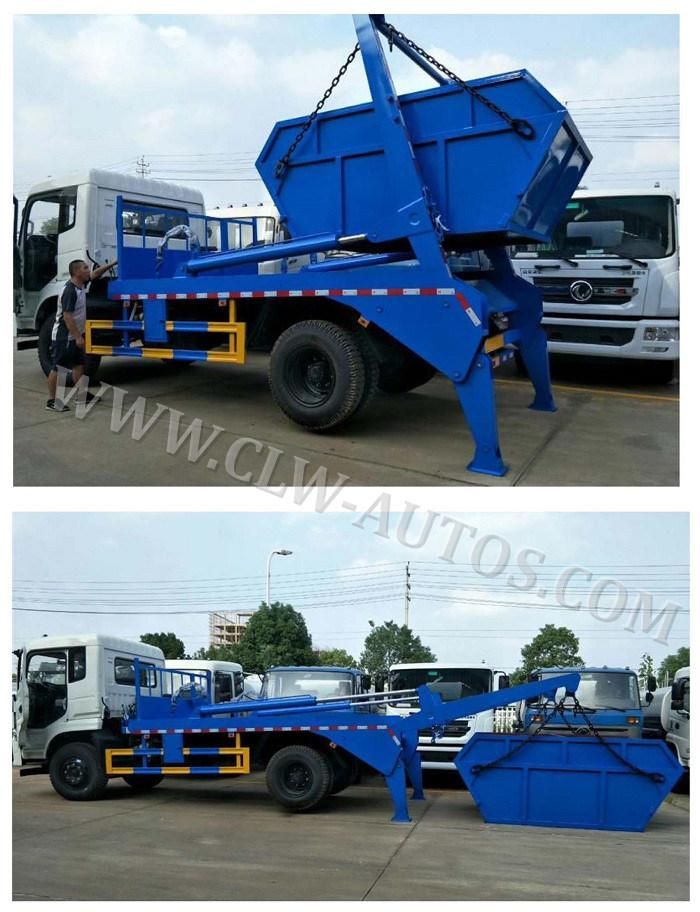

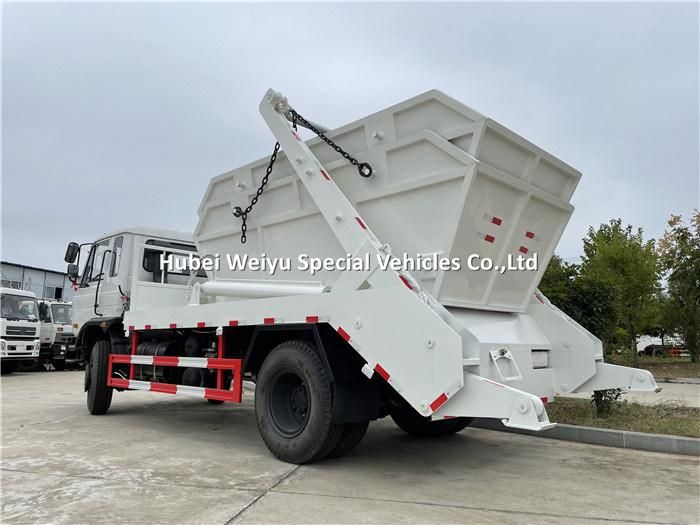

   Product Show

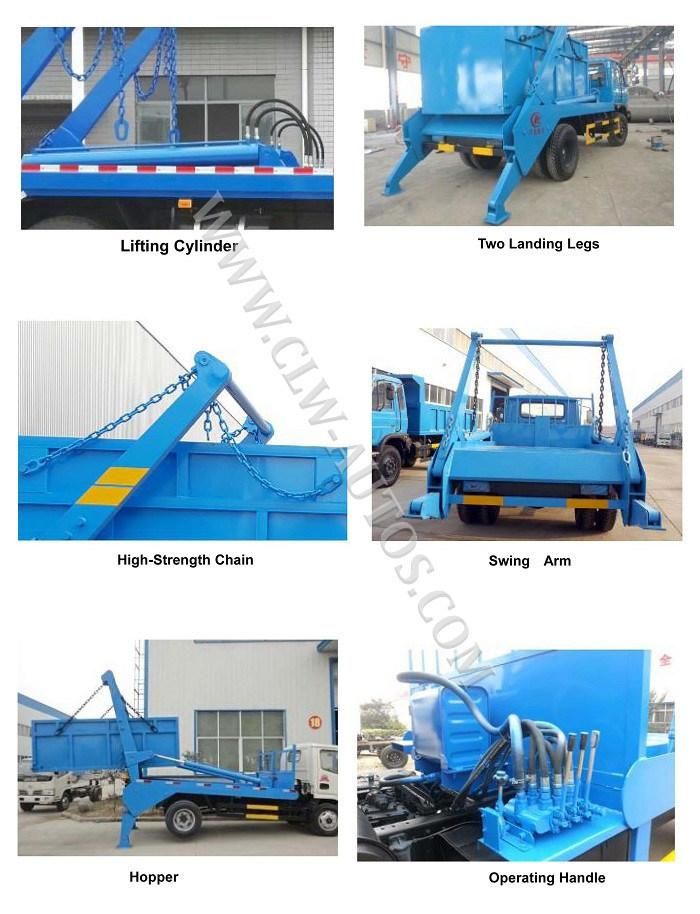

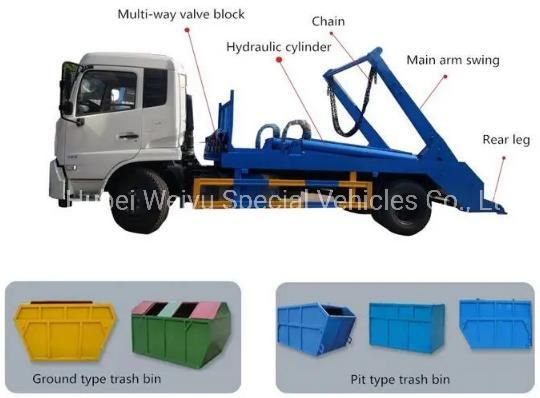

   More details for swing arm garbage truck









   Company Introduction


   Certificates


   Bulk Delivery



   Regular Overseas Exhibition and After Sales Service




   Please Contact Eric in Below Ways:
