• Model NO.：CLW51478CN
• Fuel：Diesel
• Bearing Capacity：Light
• Brand：SINOTRUK
• Condition：New
• Wheel Base：4700mm
• Gearbox：6 Forward & 1 Reverse
• Tire：10.00r20
• Max. Loading Weight：5000kg
• Flatbed Dimension：6100*2300mm
• Winch Rating Pulling Capacity：4000 Kg
• Wire Rope：21 Meters
• Logo：as Per Customer′s Request
• Operation Video：Yes
• User Manual：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：8880x2460x2550 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Overview Product Description

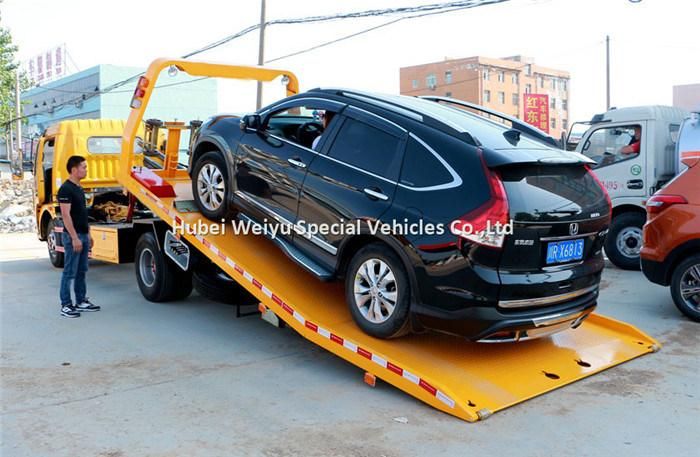

1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isu-zu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Product Parameters



General Technical ParametersOverall Dimension8880x2460x2550 (mm)Gross Vehicle Weight11995kgCurb Weight7300kgChassis SpecificationChassis ParametersChassis BrandHOWO CabinSingle, Left Hand DrivingEngineModel4 CylindersPower118 KW/160HPEmission StandardEURO 3Displacement6494MLFuel TypeDieselGearbox6 Forward & 1 Reverse GearFront and Rear Axle Load3600 kg/8000 kgWheel Base4700 (mm)Overhang( Front/Rear)1015/2450(mm)Angle(Approach/departure)24/9(°)Brake SystemAir brakeSteering GearPower AssistantTire10.00R20, 6 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureFlatbedDimensions6100x2300 (mm)Max. Loading Weight5000(kg)Operating Stroke2900 (mm)Min. Angle of Slope10(°)Platform Height from the Ground1070(mm)WinchQuantity1pcWinch Rating Pulling Capacity5000 (kg)Length of Steel Cable21 (m)Hoisting OrganRating Under-Pulling Capacity5000 (kg)Rating Under-Hoisting Capacity2390 (kg)Fully Extended Max Under-Hoisting Capacity1760 (kg)Max Under-Hoist Useful Length1700 (mm)Remarks1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars Detailed Photos
