• Use：Burnishing
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Transport Package：Nude with Wax
• Specification：8785x2490x3350
• Trademark：CLW -dongfeng
• Origin：Suizhou, Hubei Province, China
• HS Code：8704230090
• Production Capacity：100units,Month

Basic Info.

Use Burnishing Cleaning Process Cold Water Cleaning Condition New Transport Package Nude with Wax Specification 8785x2490x3350 Trademark CLW -dongfeng Origin Suizhou, Hubei Province, China HS Code 8704230090 Production Capacity 100units/Month

Product Description

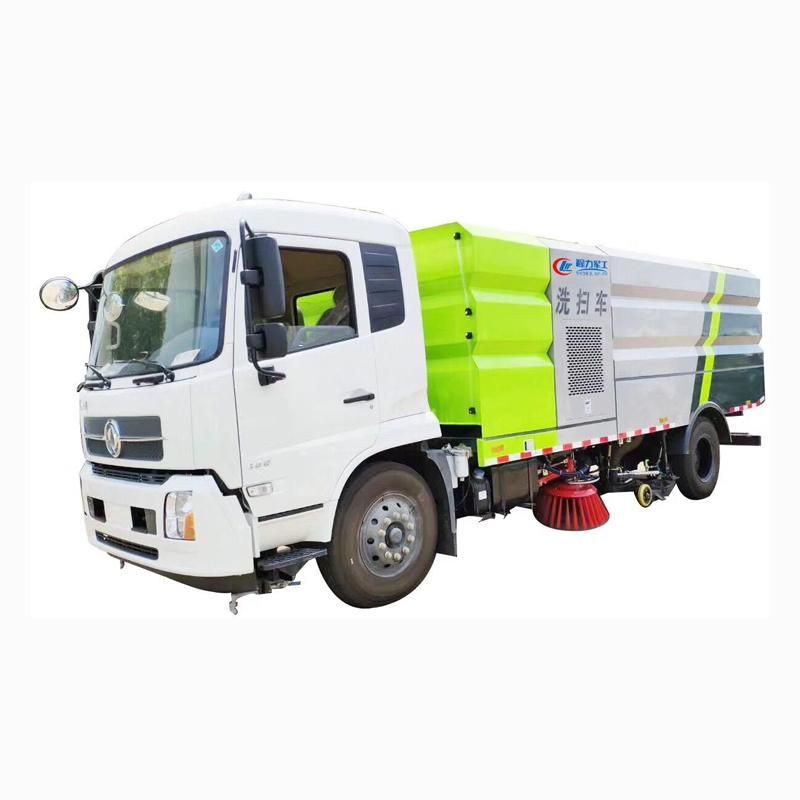

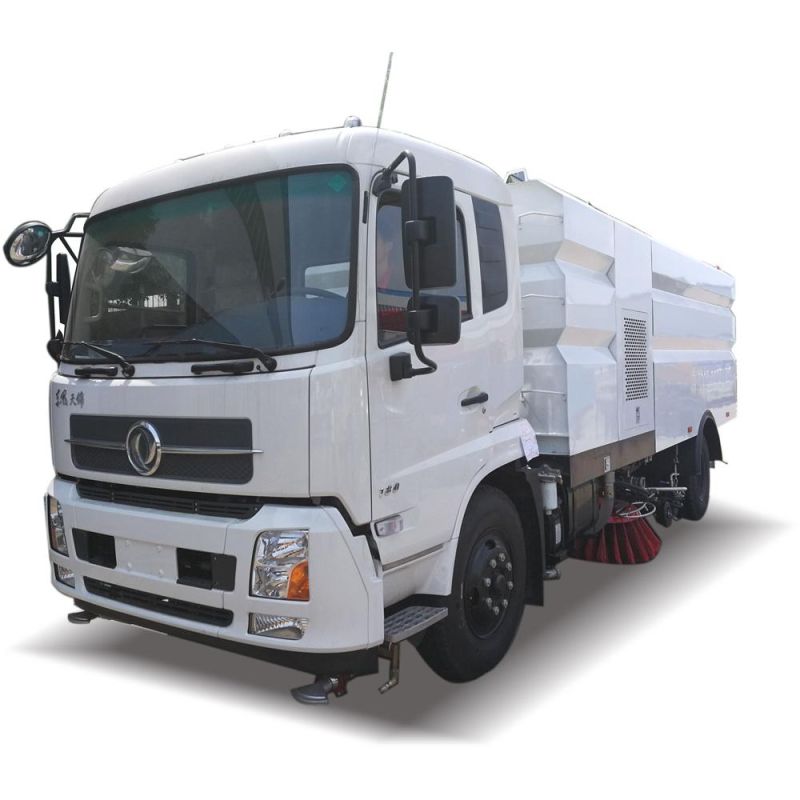

Dongfeng vacuum sweeper truck
Product information


Product Name	dongfeng vacuum sweeper truck
Driving Type	4x2,left hand drive
WEIGHT
Kerb Weight	Approx.8500kg
Dimension
Wheelbase	4700 mm
Overall Size	Approx.8785x2490x3350mm
ENGINE
Engine Model	B170 33
No of Cylinder	6
Displacement	5900ml
Max Output	125KW
Emission Standard	EURO 2
DRIVE TYPE
Transmission	6 speeds,6 forwards and 1 reverse
Steering	With power steering
Brake	air brake
Front axle/rear axle	4.5 T/9T
CAB
Cabin	dongfeng
Configuration	with A/C
Seat quantity	single row
TIRE
Tire specification	10.00R20,6+1
CONFIGURATION

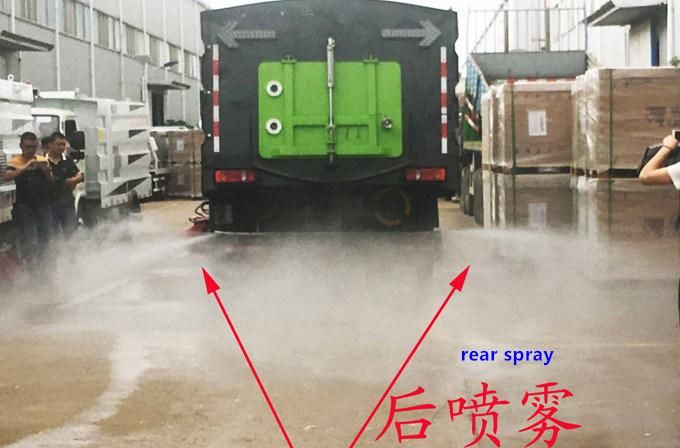

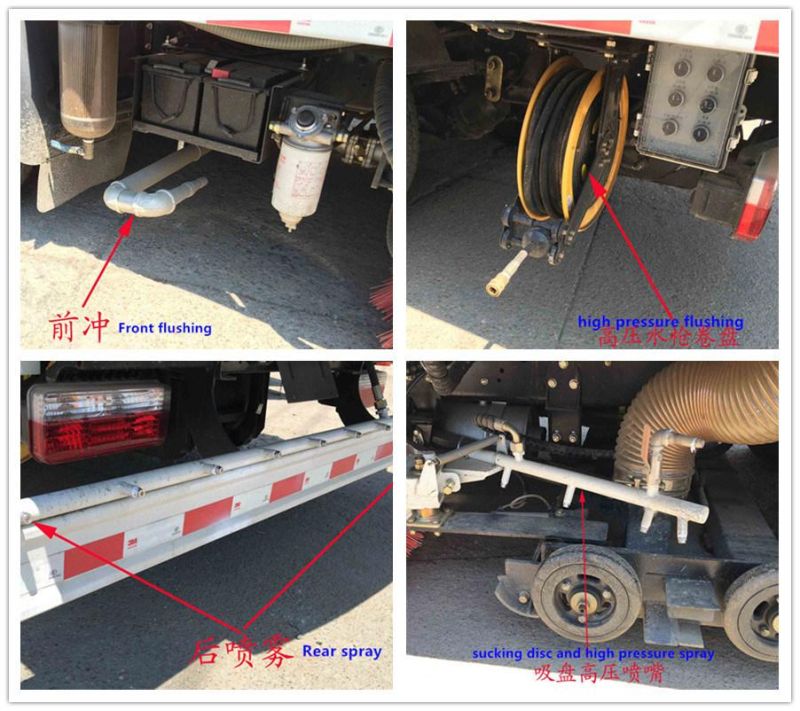

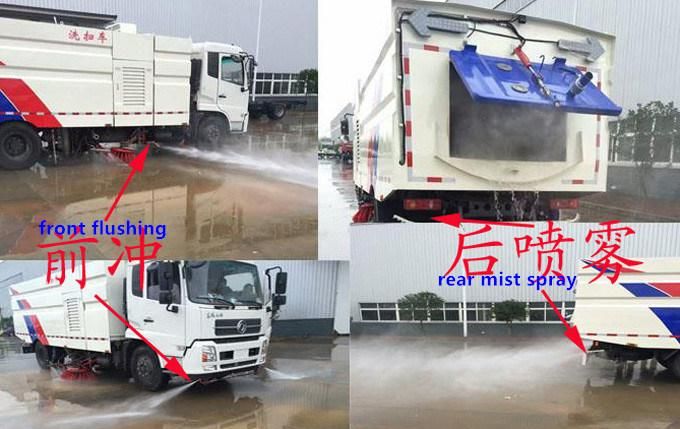

Road Sweeper Truck(water tank 4m3,Dust tank 8m3)	1. Center 4 sweeping disc, Sanyo cycloidal motor, Schneider control switch, Hai Purui solenoid valve group, Xiamen Nanchao separation clutch, maintenance-free centrifugal fan, stainless steel garbage bin, garbage bin lifting and unloading, tail LED arrow light , North Industrial Electronic Water Pump. 2. Sweep width 2.8M, suction particle size Φ120mm. 3. Optional configuration:  front flushing,rear sprinkler, front spray, self-cleaning function of garbage bin
Vacuum Sweeper Truck(water tank 2m3,Dust tank 8m3)	1. Center suction cup, Schneider control switch, Haipuisi solenoid valve group, Xiamen Nanchao clutch, maintenance-free centrifugal fan, alloy garbage bin, alloy water tank, imported pulse valve, manual pump emergency system 2. Tianjin is Cummins 140 hp auxiliary engine, Hai Puruis hydraulic valve group, Xiamen Nanchao automatic clutch, Guangzhou Tianhe hydraulic oil pipe, North industrial electronic water pump, Schneider control switch

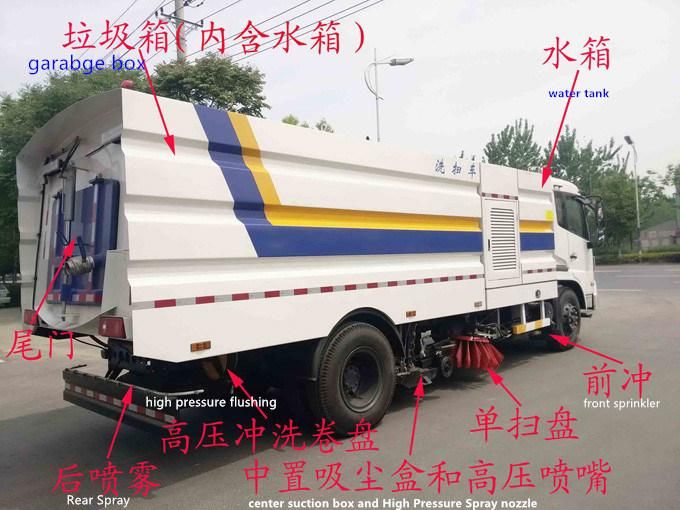

Cleaning Sweeper Truck(water tank 8.5m3,Dust tank 7m3)	Center 2 sweeping disk, Cummins 170 hp auxiliary engine (Dolly card is 140 hp Cummins auxiliary engine), Germany PF high pressure water pump (front rushing side spray medium spray after spray side flushing car water gun garbage bin self-cleaning device ), high-pressure road along the cleaning nozzle, Weilong low-pressure pump, (front) stainless steel waste bin, stainless steel high-pressure pipeline, German controller Siemens electrical original, water tank with anti-overflow or low water level alarm device; reversing and washing state indoor Monitor, 18m high pressure rinsing reel, maximum cleaning width 3.5m; cleaning pressure 10Mpa, suction particle size 120mm



Company information1.  ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
 2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
 4. Export market: Africa,Asia,South America,Pacific and so on
 5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON, JAC,JMC ,SHACMAN,FAW and etc.

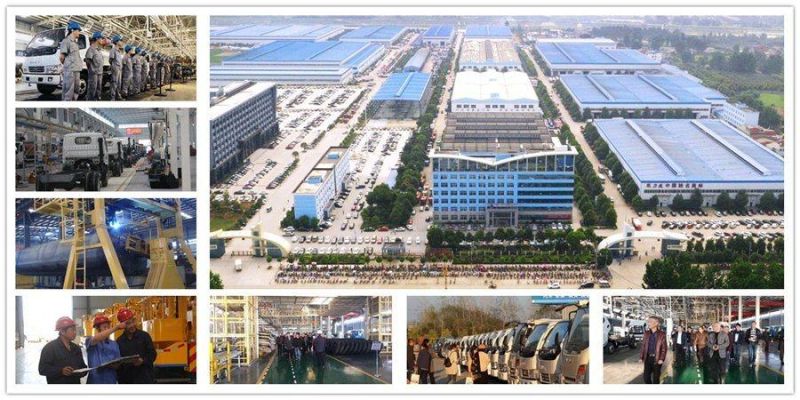

 6.Factory Show:




Service1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.

Success Case Show




Customer Visit



 FAQ 1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
 2.What about quality ?

Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.

our company truck pass ISO,3C,ASME certification.
 3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.And if need the invitation letter ,pls send your private information and company information to me.
