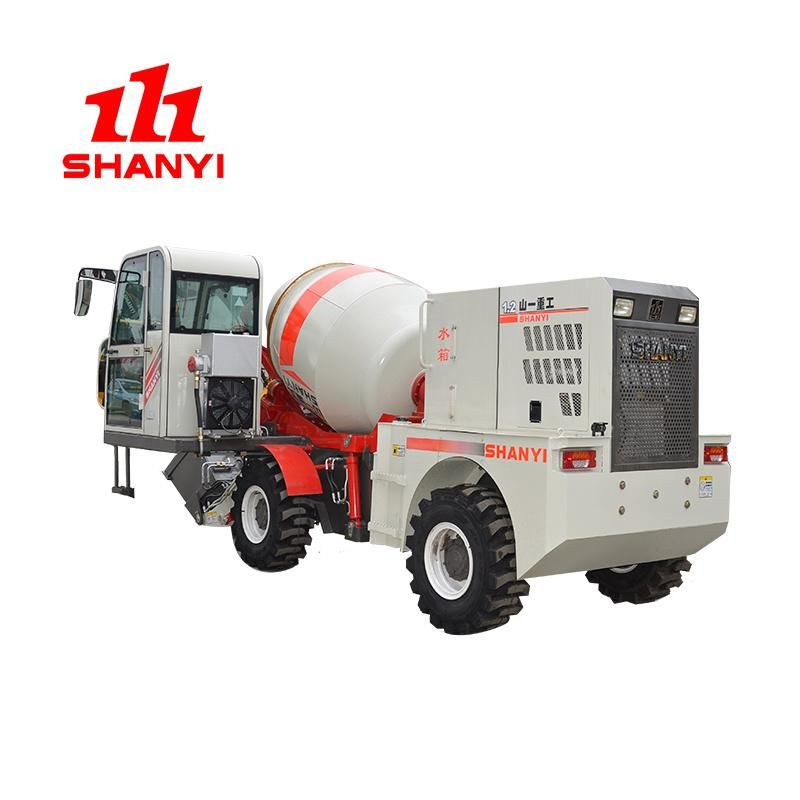

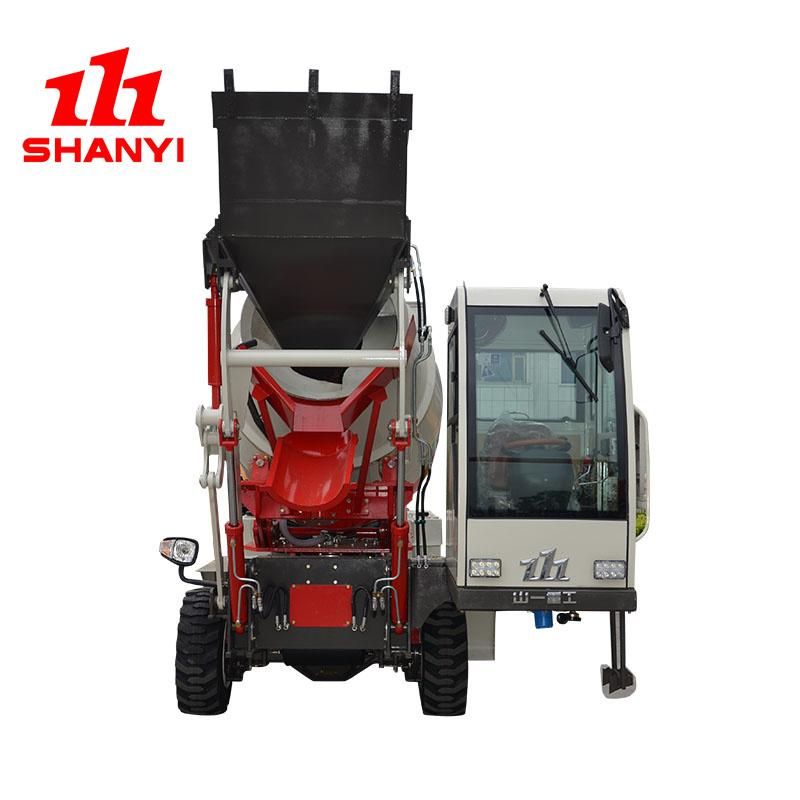

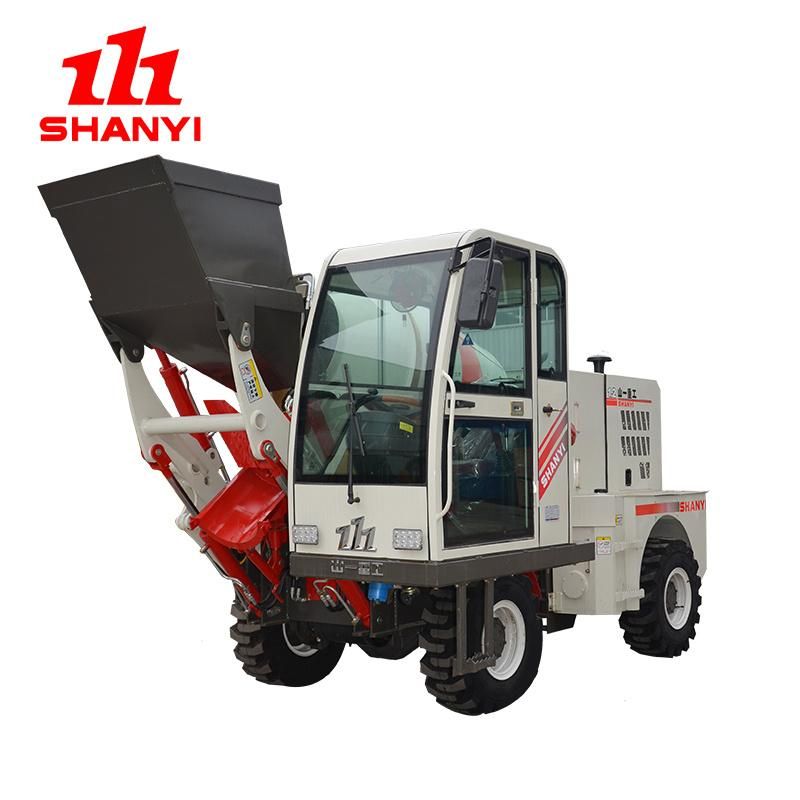

1.2 Cbm Self Loading Concrete Mixer Truck Concrete Truck Mixer Price
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：National Emission Standards
- Displacement：1.3
- Payload：2.4t
- Fuel：Diesel
Base Info
- Model NO.：SYC-1.2
- Drive Mode：4*4
- Maximum Horsepower：<200hp
- Condition：New
- Model：1.2cbm
- Axle：Wheel Deceleration
- Overall Weight：4500kg
- Engine Model：Yn27gbz
- Rated Power：55kw
- Specification：6000*2440*2460mm
- Trademark：Shanyi
- Origin：Shandong
- Production Capacity：2000 Sets,Year
Description
Diesel engine
Type YN27GBZ Total displacement, cylinder: 2700cc, four-in-line
Injection: direct injection and mechanical control
Cooling system: water-cooling, dry air filter
Maximum: 237N'm, 2000r/min
Mixing and unloading
Double-cone drum with double-spiral mixing screws and convex bottom.
The geometrical volume of drum is 2200L. The rotation speed of drum is 15r/min.
The output of concrete is 1.2m³/tank
Product display

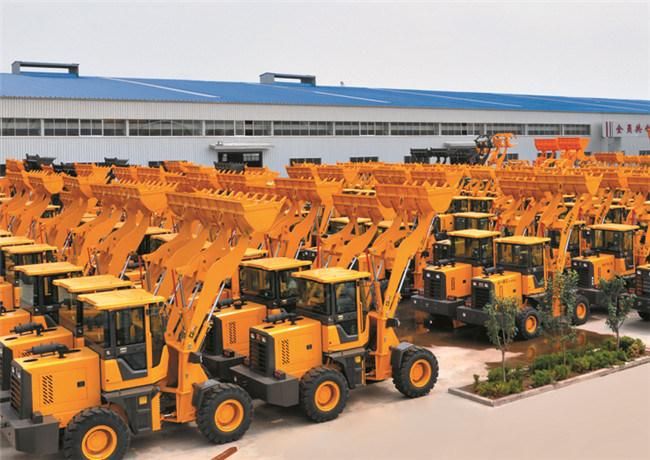

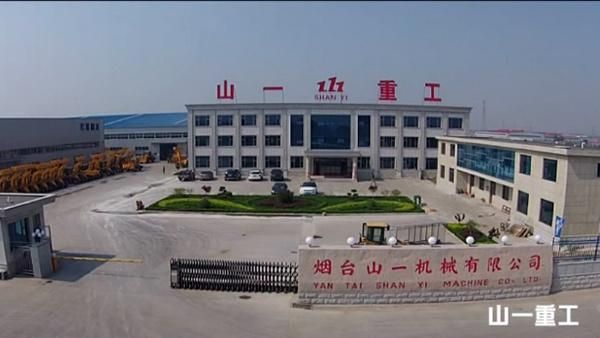

Our conpany
