• Model NO.：CLW509KD2
• Fuel：Diesel
• Tank Volume：6000L
• Drive Wheel：4x2
• Hoesrpower：130 HP
• Condition：New
• Material：Carbon Steel
• Hand Driving：LHD or Rhd
• Sewage Capacity：6000 Liters, 6cbm
• Sewage Pump：Vacuum Pump
• Brand：Chinese Famous Brand or Italy Pump
• Pressure Gauge：Yes
• Glass Window：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow Valve：Yes
• Discharge Valve：Yes
• Hand Washing Device：Optional
• Operating Video：Yes
• Logo：as Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7100x2100x3000 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)11500Curb Weight (kg)6500Overall Dimensions L*W*H(mm)7100*2100*3000 Engine BrandYuchaiFuel TypeDieselPower130HPEmission StandardEuro 3Displacement(ml)4260Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfeng DuolikaFront/Rear Axle Load(KG)2500/3500Tire No.6Tire Specification8.25-20Wheelbase (mm)3800Axle No.2Gear Box5 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeAir brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)3000Water tank Volume(L)3000Tank shapeRoundTank Material5mm thickness carbon steelSuction Depth(m)More than 6 meterSuction hose length8 metersTank Tipping angle(°)More than 45Vacuum PumpHighly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.Rear doorOpen and closed by hydraulic cylinders

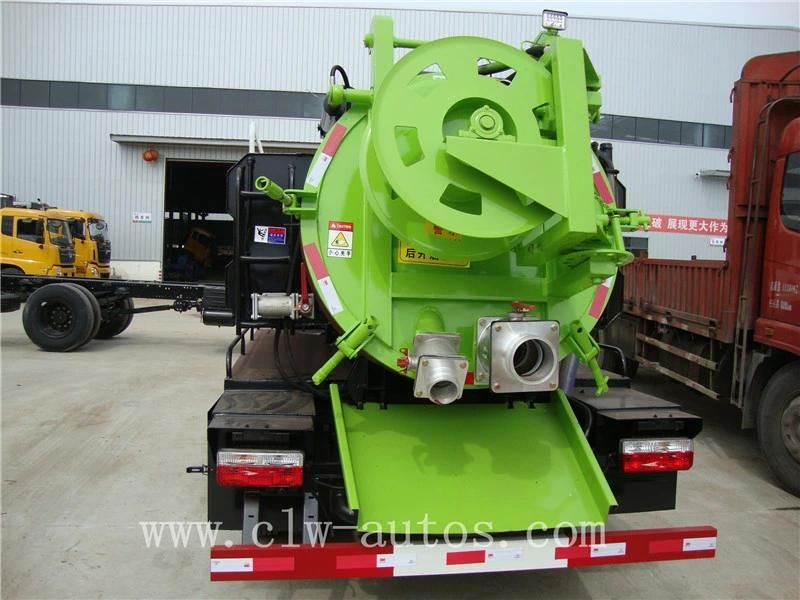

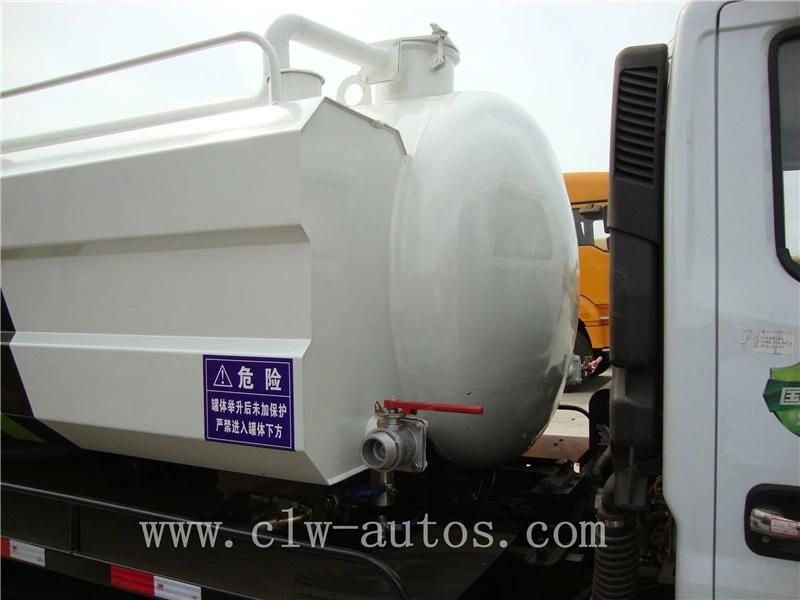

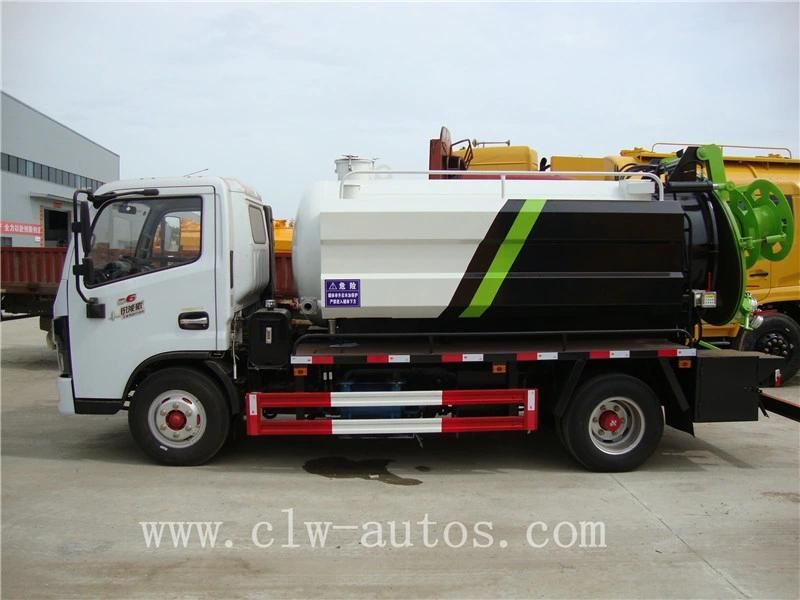

Reference photos

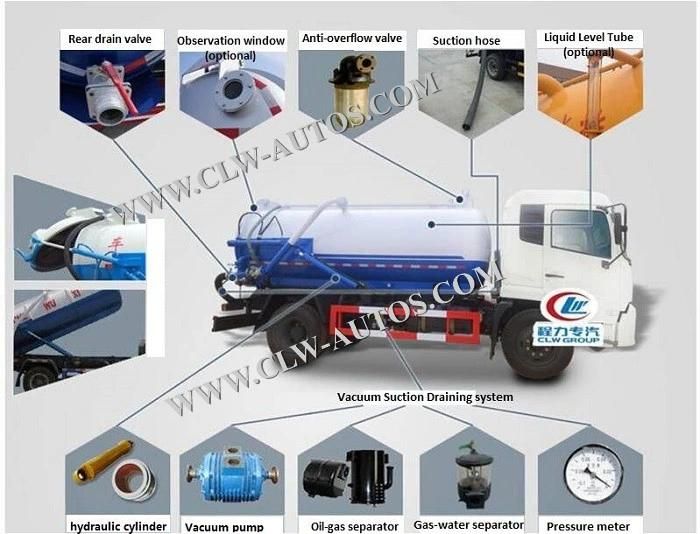

Product Diagram

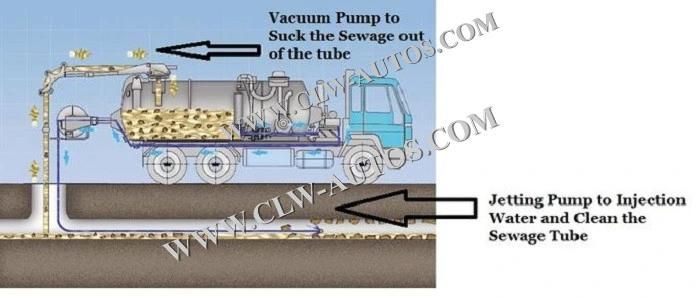

Working Diagram

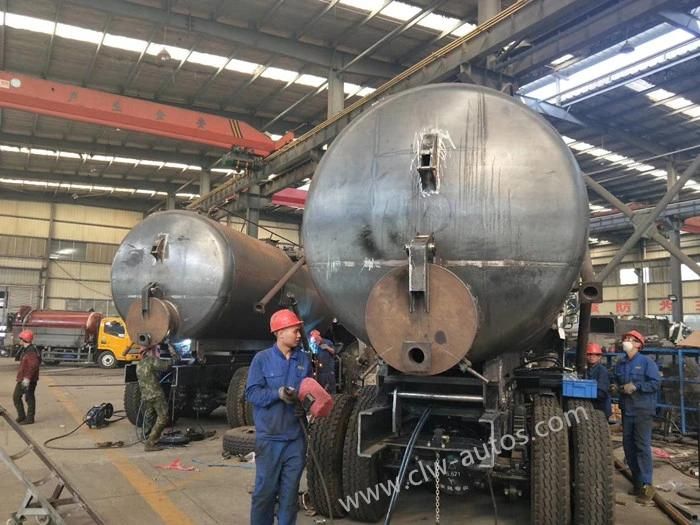

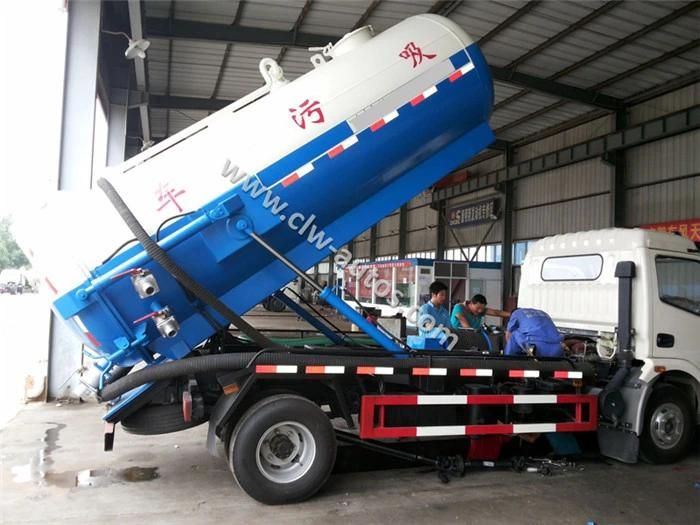

Production Workshop

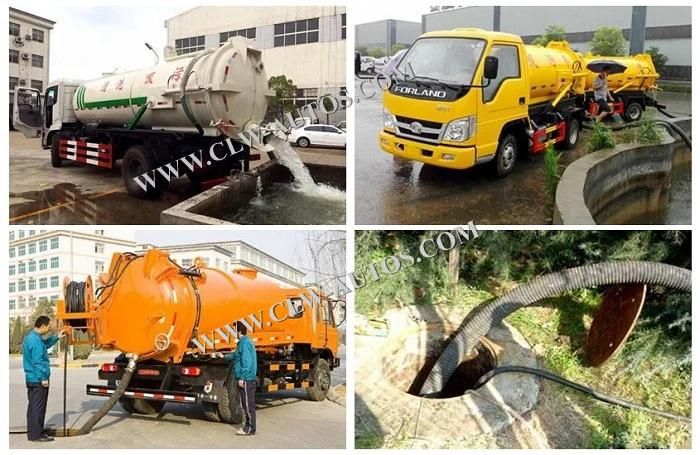

Working Photos



Other Special Truck Series


Company Introduction


Overseas Exhibition and Local Support


Customer Visiting
