• Model NO.：CLW5011KDKF9
• Bearing Capacity：Medium
• Car Type：Van
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
• Engine Power：115HP
• Wheel Base：3360mm
• Refrigerator Box Size：4180*1920*1800 (mm)
• Box Material：Fiberglass
• Insulating Layer：8cm Polyurethane Foam
• Refrigeration Brand：Thermoking, Carrier or Chinese Famous Brands
• Applicable Temperature：-18~0 Degree
• Logo or Pattern：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：16cbm, 18cbm, 20cbm, 3t, 4t, 5t
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Axle

Number of axles: 2

Axle-load: 1800/2695

Wheel base(mm): 3360

Traction system

4*2

Fact cubage(m3)

12

GVW(kg)

4495

Curb weight(kg)

2710

Overall dimensions(mm)

5995×2200*3000

Upper box body size(mm)

4180*1920*1800

F/R track base(mm)

1590/1525

F/R overhang(mm)

1085/1550

Approach / departure angle(°)

23/17

Max speed(Km/h)

95

Equipment and Function

Chassis & preservation box body--standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc

Refrigerated Unit

-18 degrees

Product cycle

15-20 days

Warranty

12 months, from the date of supply

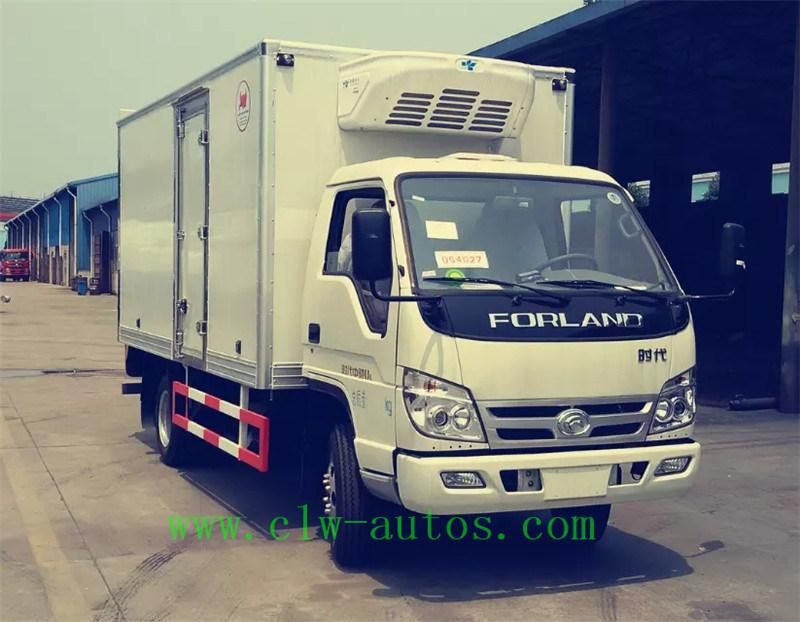

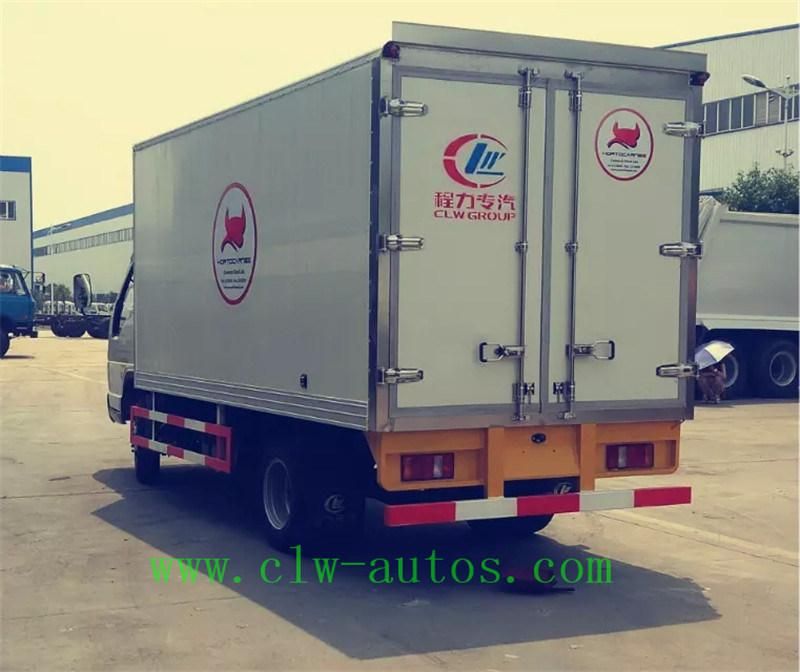

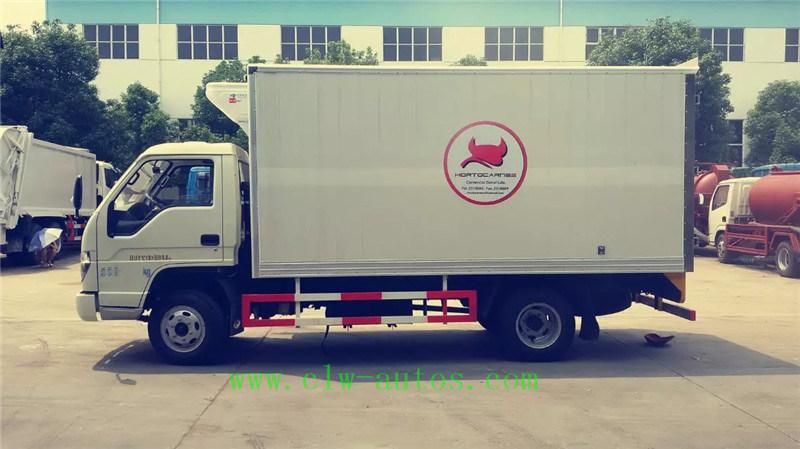

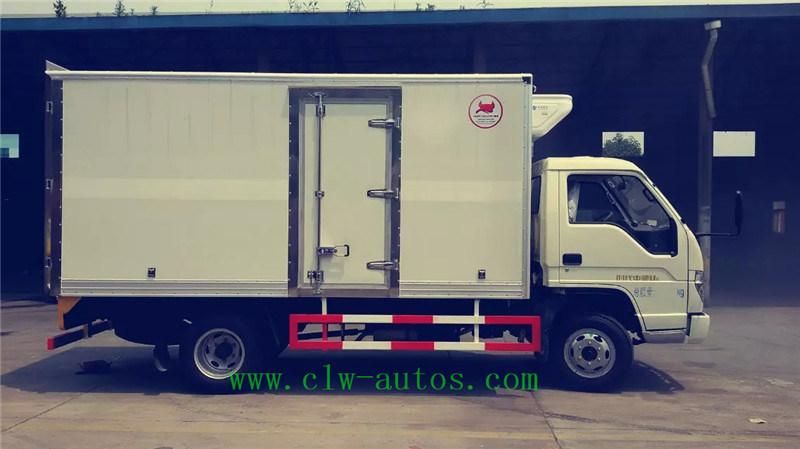

Reference Photos

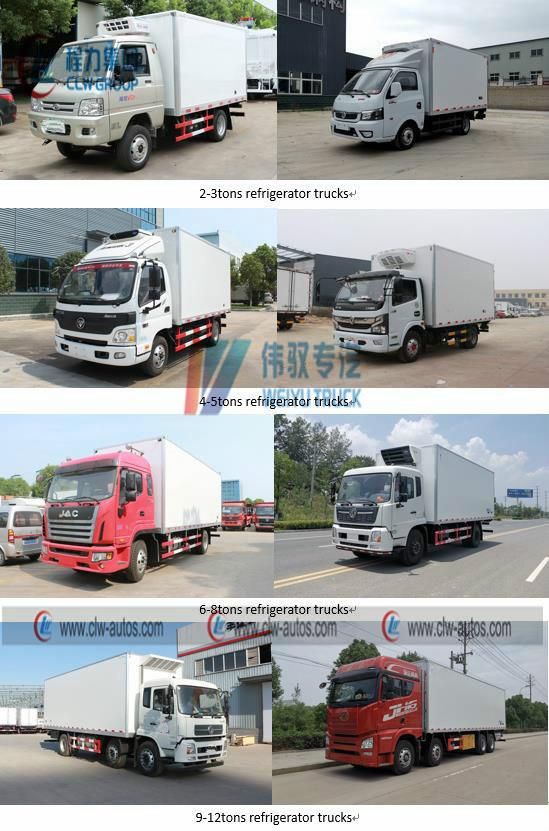

Different Capacities of Refrigerator Trucks

Certificates

Overseas Exhibitions
