• Model NO.：CLW5086LJC
• Payload：2t, 5t, 10t, etc.
• Fuel：Diesel
• Drive Wheel：According to Customer Needs
• Brand：According to Customer Needs
• Models：According to Customer Needs
• Usage：Dump, Sealed, Arm Type
• Condition：New
• Garbage Box Material：Carbon Steel
• Capacity：4cbm-20cbm
• Thickness of Box：4mm, 5mm
• Operating System：Hydraulic System
• Controlling Way：Manual and Electrical Control
• Campacting Ratio：0.8-0.9 Ton,M3
• Compression Ratio：3-4
• Compression Cycle Time：No More Than 15s
• Unload Garbage Time：No More Than 23s
• Hydraulic Pressure：16MPa
• Colour：Customized
• Delivery Time：15 Days
• Transport Package：Container
• Specification：4160*1520*1940mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units,Month

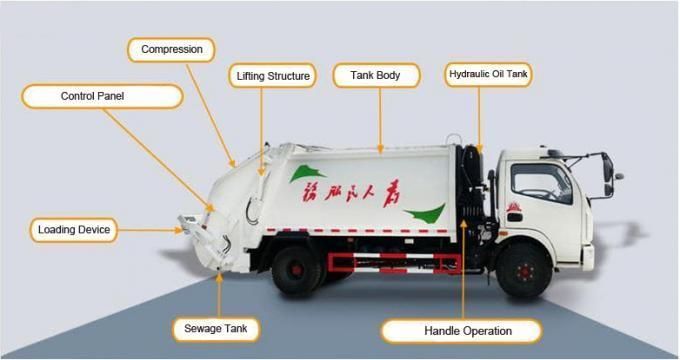

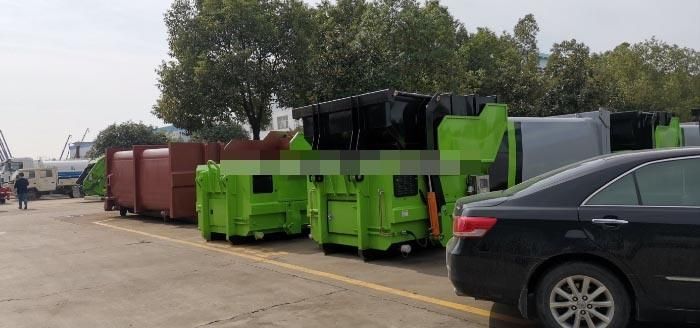

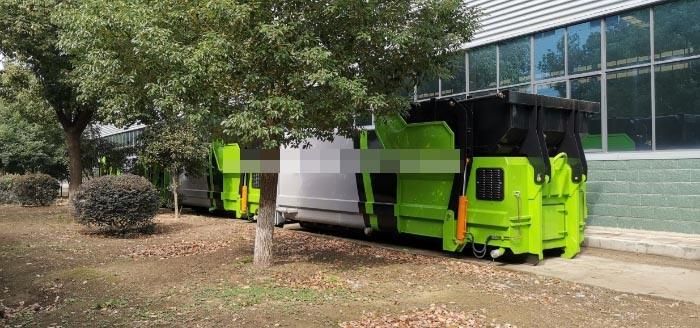

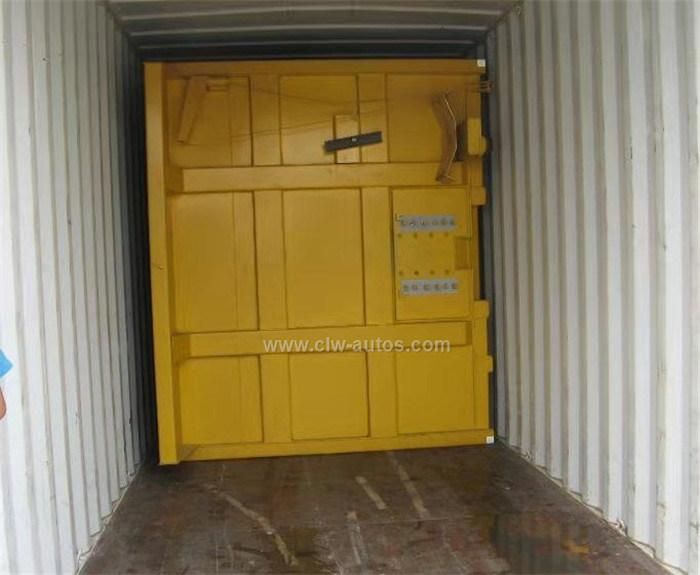

Refuse compactor structure parameters

Equipment

Structure

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems

Loading capacity

8m3,10m3,-20m3
Compactor Body 4m3
Compactor Body 6m3
Compactor Body 8m3
Compactor Body 10m3
Compactor Body 12m3
Compactor Body 16m3
Compactor Body 18m3

System of loading

Mechanized, rear loading

Modes of the pressing

Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic

Body

Version

All-metal

Shape

arc-shaped

Sidewalls

Q345 Sheet carbon steel (thickness: 4mm)

Bottom

Q345 Sheet carbon steel (thickness: 4 mm)

Roof

Q345 Sheet carbon steel (thickness: 4 mm)

Front frame

Q345 Sheet carbonaceous steel (thickness: 5 mm)

Rear frame

n-shaped profile from sheet carbon steel (thickness:5 mm)

Basis

120x120mm (thickness: 5 mm)

Loading bunker

Loading bunker

All-metal with sidewalls and a loading ladle

Volume

1.0 m3

Sidewalls

Q345 Sheet carbon steel (thickness: 6 mm)

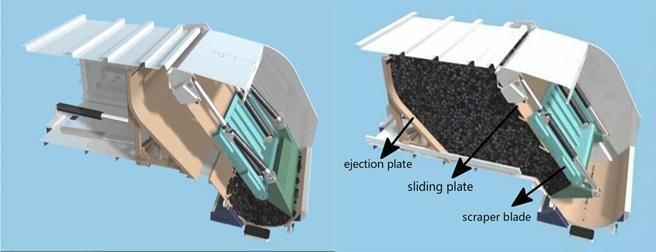

Scraper&pushing-out plate

Q345 Sheet carbon steel (thickness: 8 mm)

Liquid drain

Drainage channel,sewage tank

Working zone Lighting

2 lamps

Mechanism of raising

Two hydraulic cylinders

Ensuring tightness

Between the body and lifting back part in the lower part profile acid-proof rubber is used.

Pressing system

Features

Control mode diversification,bidirectional compression

Pressure

16Mpa

Compaction ratio

4.0:1

Loading cycle

25-30 second

Unloading cycle

25-35 second

pressing mechanism

The giving plate and hinge related pressing plate moving on two directing bars

Pressing mode

Automatic pressing

(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately

Control of  pressing

Control from the external panel on the bunker

Lifting rear part

Mechanism of lifting

Two hydraulic cylinders

Function description

Suitable for various rubbish bins

Others

Color and Logo

Optional

Standard configuration

Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control,PLC electric automatic control.

Selective configuration

multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.
