• Model NO.：20 ton Light Dump
• Fuel：Diesel
• Drive Wheel：4×2
• Models：Small
• Usage：Compression Type
• Condition：New
• Loading Material：for Transporting Household Garbage
• Color：as You Like
• Suspension：Air Suspension Seat
• Warranty：One Year or 100000km Which Comes First
• Transport Package：Nude Packing After Painted Wax
• Specification：heavy duty truck
• Trademark：SINOTRUK
• Origin：China
• HS Code：870423
• Production Capacity：3000pieces,Month

Truck Model

ZZ3257N3647A, Left Hand Drive or Right Hand Drive model

Truck Brand

SINOTRUK -HOWO

Dimension(Lx W xH)

8545x2496x3386

Cargo body size (L*W*H, mm)

5800x2300x1400

Cargo body thickness(mm)

bottom:8mm, side:6mm, or customized as you required

Lift type of Carriage

Ventral lifting or front tipping

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

12290

Loading Weight(kg)

25000

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.47,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

371HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20, 12.00-20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

   Tips to build your truck bodyTransport medium Floor(mm) Side(mm)Soil or Stone 8 4Construction Waste 10 6Big Ore 12 8Coal 6 4clay 8 4Grain or  Chemical fertilizer 6 4

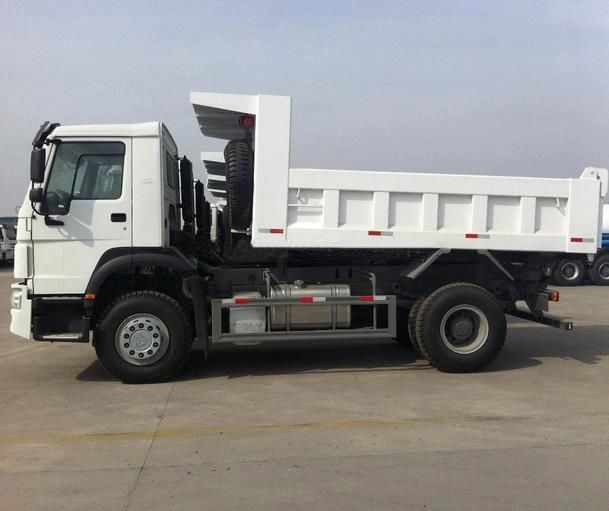

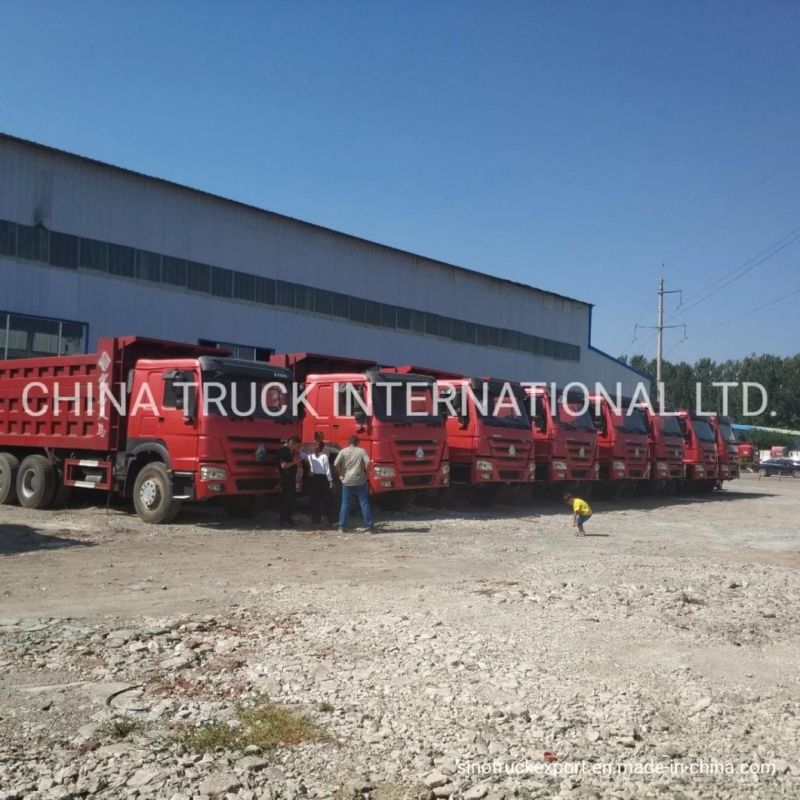

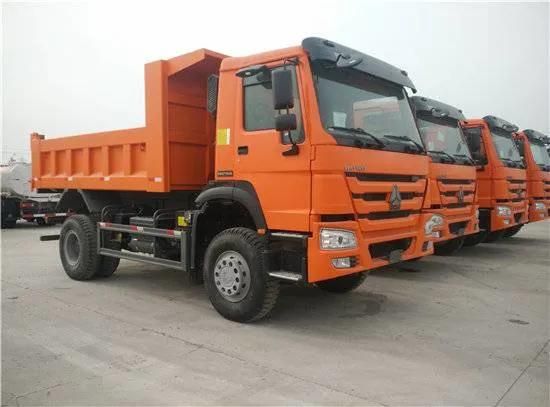

Brand new HOWO dump trucks in our warehouse, waiting for delivery. In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.

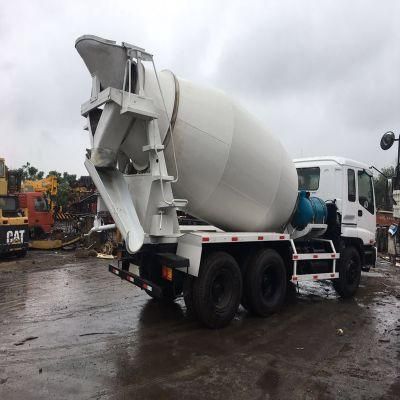

Used trucks in our warehouse, waiting for customers coming to choose and delivery!

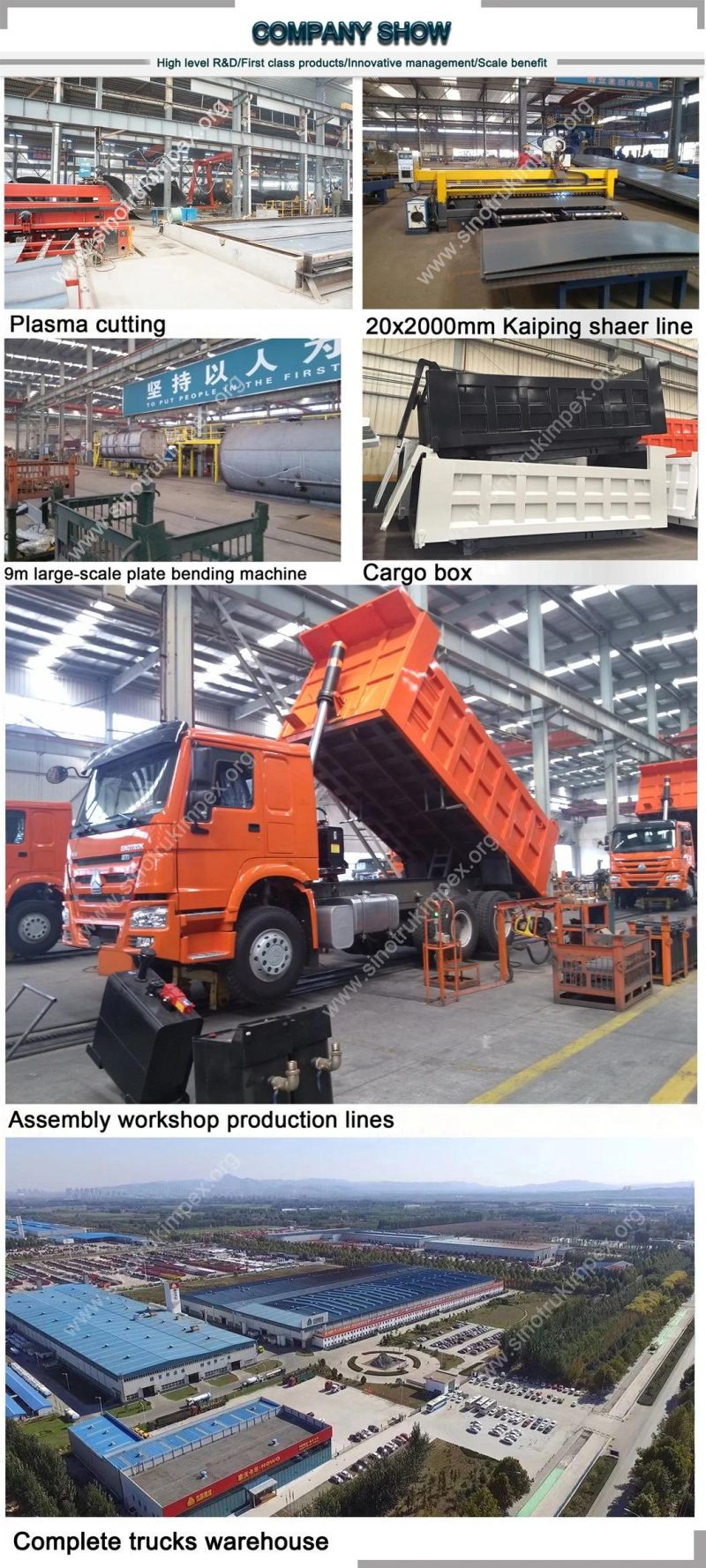

2.Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.


3.Packing: Nude packing after painting wax or according to your requirement.
   Shipping:By bulk cargo carrier, RORO

4. FAQ

Q1: I don't want this configuration.

A:  The configuration can be changed according to your needs

Q2: Minimum order quantity?

A:  MOQ is 1 unit.

Q 3:  Production period?

A:  (Truck & trailer) Within 30 days since the moment we got your down payment         (Parts)  Within 7 days since the moment we got your down payment

Q 4: Payment term?

A:  (Truck & trailer)  30% T/T as deposit, the balance should be paid before delivery. or L/C          (Parts)  100% T/T should be paid before delivery

Q 5: Shipping?

A:    (Truck & trailer)          by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.)          by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.)         (Parts)          by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea

Q 6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance   beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc.

 5.Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions

6. Main products


7. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

8. Happy to tell all of our customers, in order to meet all the requires from different countries, we have built used truck second hand truck business, we will buy some second hand truck with good condition and put them in our warehouse so that you can choose the trucks you liked when you are in China. If unconvenient for you, we can choose for you! Only good condition, good price, earn long-term business!

9.Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country
