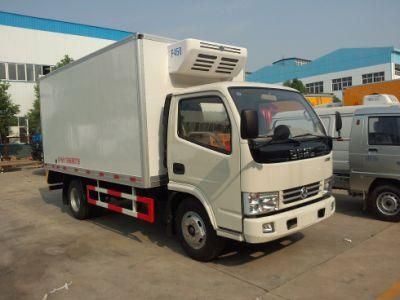

Top Quality 5 Ton Refrigerator Truck

CLW Heavy Industry Co., Ltd
  • After-sales Service：Warranty 1 Year or 50000km
  • Warranty：Warranty 1 Year or 50000km
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload：5t
  • Emission Standard：Euro 3
  • Transmission Type：Manual

Base Info

  • Model NO.：CLW5061
  • Horsepower：＜150hp
  • Fuel：Diesel
  • Bearing Capacity：Small
  • Car Type：Van
  • Condition：New
  • Brand：Clw
  • Driving Model：4X2
  • Wheel：6 Wheels
  • Capacity：5 Ton
  • Exhaust/Power(Kw)：95HP
  • Tire：7.00-16
  • Volume：13cbm
  • Name：5 Ton Refrigerated Truck
  • Material：Carton Steel Q235B, Stainless Steel 314, Alloy
  • Engine Model：Cummins, Deutz Ranault, Yc Sc Wd Zz
  • Transport Package：Naked, Nade, Bulk, Container, Waxing, RO-RO
  • Specification：CE
  • Trademark：chengli heavy industry co., ltd
  • Origin：Huebei, Wuhan
  • HS Code：8705909090
  • Production Capacity：1000set,Year

Description

Vehicle Main DimensionsDimensions(L x W x H)mm5995*2020*3000Wheel base (mm)3300Overhang (front/rear) (mm)1032/1663Wheel track (front/rear) (mm)1506/1466Approach/Departure angle(°)19/10Weight in KGSCurb Weight3500GVW.6495Max. driving speed(km/h)90EngineModelCY4102-C3FType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)95HPDisplacement3.856LEmission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)120Tire7.00-16 tire , 6 pieces including 1 spare tireBrakesdual circuit compressed air brakeVanMaterial1.    Fiber steel double deck
2.    with 8CM thickness polyurethane
3.    Fiber steel/Stainless steel/Color plate can be chosenTipper Box Dimension4100*1850*1800mmThickness10CM
 Truck refrigerated unit
 Unit modelL-Z25Applicable temperature (ºC)-18~0Applicable volume(m3)10~18Voltage 12/24VDCCooling capacity (W)0ºC2250-20ºC1230Dimensions(mm)Condensing unit1020*520*320evaporator1000*530*170Weight(KG)Condensing unit22evaporator16
