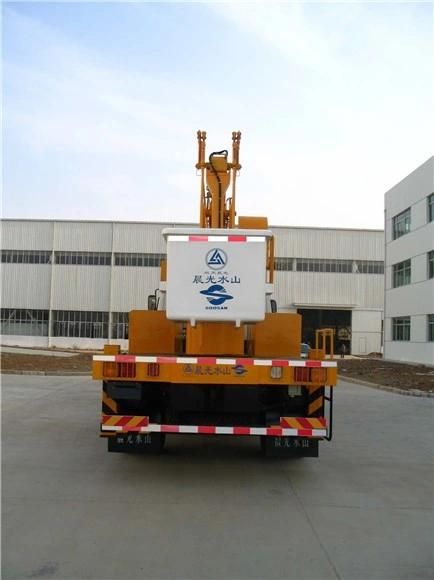

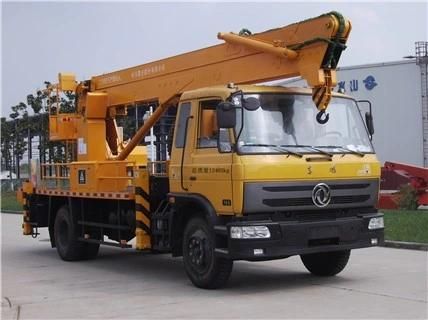

Aerosun Cgj5120jgk Folding Arm Aerial Lift Trucks with Max. Work Height 20m
Aerosun Corporation- Certification:ISO9000, CCC
- Emission Standard:Euro 3
- Fuel:Diesel
- Transmission Type:Automatic
- Condition:New
- Trademark:Aerosun SanLi
Base Info
- Model NO.:CGJ5120JGK
- Origin:China
Description
Integrating the advanced technology from overseas, Aerosun has developed a series of new products such as the aerial lift trucks with the height range from l0m to 30m and the self-propelled aerial working platforms with the height range from 8m to 43m. It adopts the structure of telescope type, folding type and other types, which can be widely used in the fields of airport, municipal project, park, communication, power station, transportation, advertisement, photography, etc.
AERIAL UNIT DETAILS
- 20m Working Height
- 12m Side Reach
Folding arm
- Full Hydraulics Controls
- 360 degree platform rotator
BODY DETAILS
- Baosteel excellent hot rolled steel plate for actuating arm
- 8850×2470×3805mm overall dimension
- Master lock system for all doors
- CAN-BUS control system
- Non Skid coating on walking surfaces
CHASSIS DETAILS
- DONGFENG EQ1126KJ1
- Euro III
- 5.9 Liter/ 132Kw Diesel Engine
- Automatic Transmission
- 4x2
- AM/FM/CD Radio
- ABS
