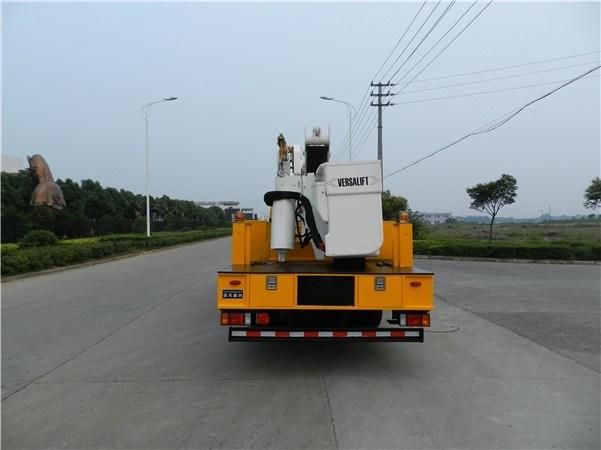

Aerosun Cgj5106jgk Insulated Mixing Arm Type Aerial Lift Trucks with Max. Work Height 17m
Aerosun Corporation- Certification：ISO9000, CCC
- Emission Standard：Euro 4
- Fuel：Diesel
- Transmission Type：Automatic
- Condition：New
- Trademark：Aerosun SanLi
Base Info
- Model NO.：CGJ5106JGK
- Origin：China
Description
Integrating the advanced technology from overseas, Aerosun has developed a series of new products such as the aerial lift trucks with the height range from l0m to 30m and the self-propelled aerial working platforms with the height range from 8m to 43m. It adopts the structure of telescope type, folding type and other types, which can be widely used in the fields of airport, municipal project, park, communication, power station, transportation, advertisement, photography, etc.
AERIAL UNIT DETAILS
- 17m Working Height
- 11m Side Reach
Insulated mixing arm type
- Full Hydraulics Controls
- 360 degree platform rotator
BODY DETAILS
- Baosteel excellent hot rolled steel plate for actuating arm
- 7900×2300×3500mm overall dimension
- Master lock system for all doors
- CAN-BUS control system
- Non Skid coating on walking surfaces
CHASSIS DETAILS
- ISUZU QL11009LARY
- Euro IV
- 5.193 Liter/ 139 Kw Diesel Engine
- Automatic Transmission
- 4x2
- AM/FM/CD Radio
- ABS
