• Model NO.：4Ghjx2305hs
• Horsepower：210-260hp
• Axle：Micro
• Condition：New
• Wheelbase (mm：2455
• Fuel Tank Capacity(L)：75
• Gearbox：5 Speed, Manual
• Dimension of Patient′s Compartment (mm)：2820*1855*2340
• Overall Dimensions (mm)：4990*1855*2340
• Transport Package：Pallet
• Specification：CE,ISO,SGS
• Trademark：Istana
• Origin：Nanjing
• HS Code：9402900000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. 4Ghjx2305hs Horsepower 210-260hp Axle Micro Condition New Wheelbase (mm 2455 Fuel Tank Capacity(L) 75 Gearbox 5 Speed, Manual Dimension of Patient′s Compartment (mm) 2820*1855*2340 Overall Dimensions (mm) 4990*1855*2340 Transport Package Pallet Specification CE/ISO/SGS Trademark Istana Origin Nanjing HS Code 9402900000 Production Capacity 300PCS/Month

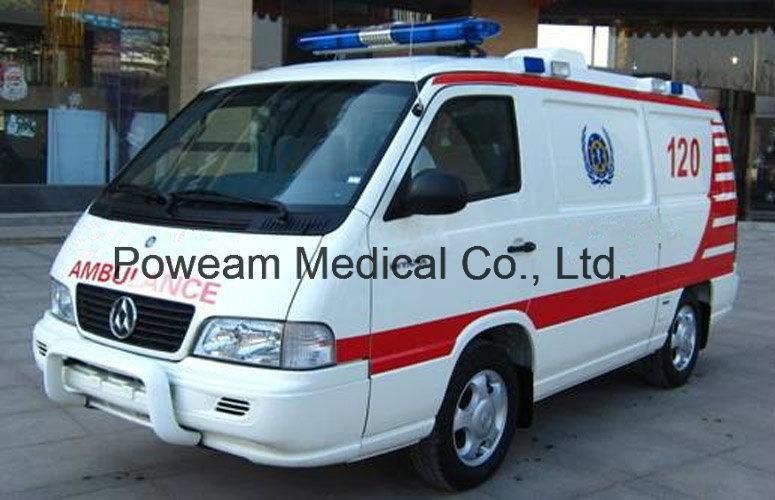

Product Description

A	Technical specs of vehicle
	Wheelbase (mm):2455
	Turning diameter(m):11
	Overall dimensions (mm):4990×1855×2340
	Dimension of patient's compartment (mm):2820×1650×1420
	Complete vehicle curb mass:(kg):2240
	GVW (kg):2850
	Number of seats: 4-7 seats
	Engine: M161G23D
	Fuel type:  Petrol
	Fuel consumption (L):<9.5/100km
	Engine type:electronic fuel injection
	Displacement (ml.):2295
	Emission standard:Euro IV
	Maximum power (KW):95.6
	Minimum torque:190N.m
	Gearbox:5 speed, manual
	Front overhang:independent suspension
	Rear overhang:adjustable rigidity single-leaf spring
	Max. speed (Km/h):>150
	Steering system:steering wheel
	Tire: 195/75R16
	Fuel tank capacity(L):75
B	Standard configuration of vehicle
1	Electric side mirror
2	Power windows
3	Vehicle-mounted radio cassettes
4	Central control door lock
5	Hand-free Intercom system between driver's cab and patient's compartment
6	2 seats in driver's cab
7	Upward open rear door
C	Air conditioner and lighting system
1	Vehicle-mounted air conditioner in driver's cab	1
2	Vehicle-mounted air conditioner in patient's compartment	1
3	Ventilation fan mounted on the roof of patient's compartment	1
4	2 illumination lights on left and right side of vehicle outside	4
5	1 illumination light rear side of vehicle outside	1
6	illumination light in patient's compartment	4
7	Ultraviolet radiation disinfector light	1
D	Central power supply distribution system
1	Automatic charging system	1
2	10m mobile cable	1
3	12V outlets in patient's compartment	2
4	220V outlets in patient's compartment	2
5	230V/16A waterproof outside outlet with protection cover	1
6	12V DC supply system	1
7	Intelligent inverted power supply system(12V -220V)	1
8	Central control system	1
E	Emergency alarm system
1	Control plate of siren and alarm lamp mounted in driver's cab	1
2	Adjustable volume alarm apparatus	1
3	100W loud speaker	1
4	Flashing alarm light bar mounted on the front roof of vehicle	1
5	blue flashing alarm lamps mounted two sides of vehicle roof	4
6	White illumination lights mounted to two sides of vehicle roof	4
F	patient's compartment
1	Compartment wall between driver's cab and patient's compartment, a glass window in wall to make observation
2	A foldable doctor seat (with safe belt) mounted to floor near to compartment wall	1
3	Long bench bed one piece (suitable for 3 people), mounted in right side of patient's compartment	1
4	Oxygen bottle (10L×2) ,mounted in left side of vehicle
5	Oxygen flow controller	2
6	Wall and door in patient's compartment, made of aluminous-plastic composite material
7	Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.
8	Raised edge of patient's compartment, dust-proof, anti-skidding, washable
9	Concealed type infusion support mounted to the interior roof of patient's compartment	1
10	Ventilation fan mounted in the interior roof of patient's compartment	1
11	Box type Illuminating lights mounted to the interior roof of patient's compartment	3
12	Storage cabinets which are used to store field first-aid kit mounted in the patient compartment.
13	Multi-functional cabinet, used for storage of medicine, first-aid case, also to be as a work bench	1
14	Vertical push-pull cabinet (3 layers) mounted in left front side of patient compartment.	1
15	Medical equipment support mounted above the medical equipment cabinet	1
16	Medical equipment cabinet mounted to the left side of Medical equipment cabinet	1
17	Strong blue or red reflective strip in waist of body
18	Mobile Self-lifting stretcher mounted in Patient's compartment	1
19	Adjustable shovel Stretcher mounted in Patient's compartment	1
20	220V outside power supply

Standard Configuration

1) Chassis Vehicle: 1 unit
2) Automatic loading-and-unloading stretcher: 1set
3) Oxygen supply system: 1set (10LX2 oxygen bottle)
4) Oxygen pressure indicator: 2 sets
5) Hands-free intercom system: 1set
6) Oxygen outlet: 2 sets
7) Oxygen switching device: 1 set
8) Oxygen flow controller: 2 sets
9) Heating system: 1set
10) 12V DC supply system: 1 set
11) 220V AC power socket: 2 sets
12) Ultraviolet radiation disinfector system and Waste can: 1set each
13) 100W alarm controller:1 set
14) Overhead blue flashing alarm lamp bar: 1 set,   blue flashing alarm lamps lights and white illumination lights mounted two sides of vehicle roof: 2 sets each
15)  12V ventilation fan system: 1set
16)  Fire extinguisher and fixed support: 2 sets in total (one in the driver's cab and one in the patient's compartment)
