8000liters 10t 12ton Water Foam Tank HOWO Fire Fighting Truck for Sale
CLW Heavy Industry Co., Ltd- Type：Tanker
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：7001-10000L
- Emission Standard：Euro 2
- Transmission Type：Manual
- Payload：20T
Base Info
- Model NO.：clw5160
- Fuel：Diesel
- Drive Wheel：6×4
- Horsepower：251-350hp
- Condition：New
- Product Name：HOWO Fire Fighting Truck
- Tank Volume：4000L, 4000liters 6000L 6000liters 8000L
- Brand Chassis：HOWO Foton FAW Shacman HOWO Fire-Fighting Truck
- Equipment：Bump, Ladder HOWO Fire-Fighting Truck
- Driving Model：4*2 6*4 8*4 LHD Rhd
- Transport Package：External Waxing
- Specification：CCC SGS CE ISO
- Trademark：CLW brand
- Origin：Hubei Suizhou
- Production Capacity：30000units,Year
Description
Water tanker: 12000L
Fire pump:CB10/60 flow: 60L/s
diversion time≤50s (Pressure: 1.0Mpa)
Fire monitor: PL48-64D flow: 48-60L/s range: water≥60m (Pressure: 1.0Mpa-1.2Mpa)
Power takeoff.
1. Cab
Manufacturer: SINOTRUK
Double row, 2+4 seats contains the driver seat,
With air conditioner.
With fire control panel, and a warning lamp control box.
The back seats bear 4 sets air respirator and fixed fixtures.
2. Power takeoff
Full power and sandwich type.

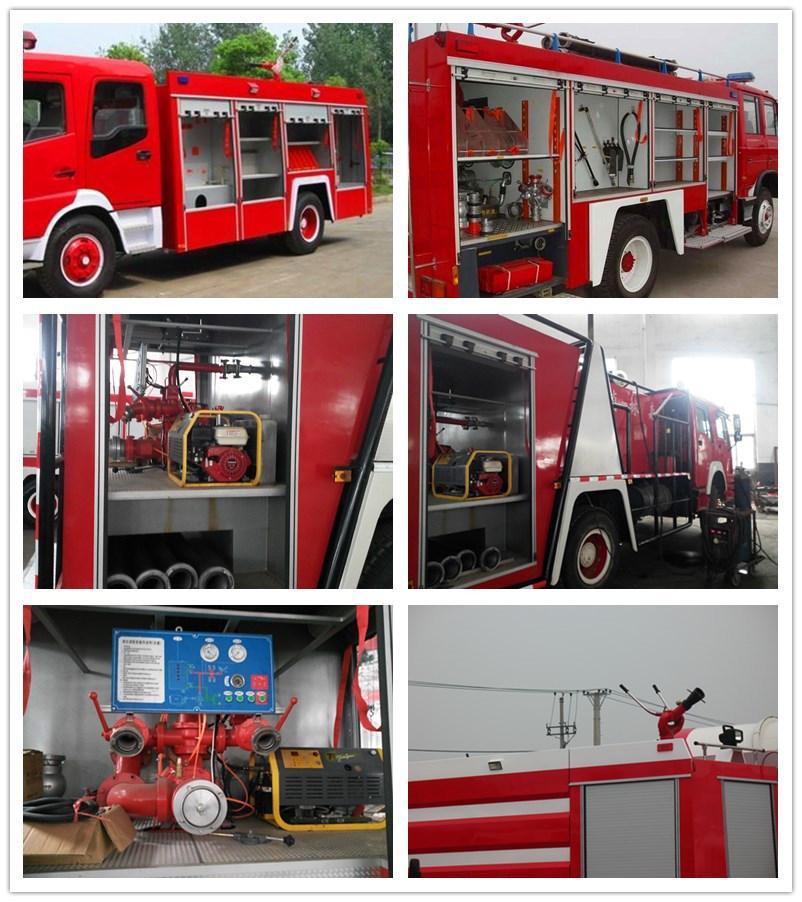

3. Pump room and Equipment room
Structure
Main structure is welded by Q235 material.
Pump room
Pump room is located at rear of truck with side and rear aluminum alloy roller shutters and spotlight.
With anti-slip footstep at two sides for parts of equipment and ramp at the rear of truck.
Equipment room
Equipment room is at the back of cabin with side aluminum alloy roller shutters and spotlight and with anti-slip footstep at two sides.
Storage box and push-pull tray are between equipment footstep box and equipment room.
4. Tank
Water: 12,000L
Material: carbon steel photostatic treatment.
Thickness(floor:side:baffle): 4:4:3 mm
With one DN430 manhole, one DN50 overflow.
With DN80 outlet for remain water and equipped with ball valve
With two DN80 water inlets on left and right of the truck
5. Pump
Model: B10/60
Type: Low pressure centrifugal pump.
Pipe: 20seamless steel tube.
Inlet and outlet:one DN150 inlet with stainless strainer and cover.two DN80 outlets with ball valves and covers.
6. Fire monitor
Model: PL48-64D
Flow: 48~64L/s
Pressure: 1.0 ~ 1.2 Mpa
Fire rang: water ≥60m
Rotation angle: 360° rotation
Angle of elevation: ≥+70°
Angle of depression: ≤-15°
7. Fire control system:
Cab control: electrical switches, pneumatic master switch, water pump shift, warning lights, lighting and signal device control and so on.
Pump room control: blending proportions set, control valve switch, parameter display, status display etc.
8. Electricity equipment
independent circuit
Chinese brand good quality electricity control system
Light:24V voltage
Lighting
One fire light at the rear top of truck
9. Painting
Good quality painting
Mainly red color
WHY CHOOSE US?
1.Experience:
10 years experience of production,sales,research and development in the field of special trucks.
2.Specialization:
OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
3.Good Quality:
has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
4. Chassis supply:
we have a very good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,etc.
5. Production supply capacity
Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.
Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
our advantage:
1. competitive price and excellent quality
2. more than 10 year's experience as a manufacture
3. ccc, Iso, BV certificate
4. perfect after-sale service
5.customized products available with us
6.export covering more than 50 countries and regions
7.annual production value topped 240,000,000us dollars per year
Contact Info.
Chengli Special Automobile Co., Ltd.Factory:Chengli Automobile Industry Park,Suizhou City,Hubei Province,China Web:http://cltruck.en.made-in-china.com
