• Model NO.：CLW50776
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Arm Type
• Condition：New
• Wheel Base：4700 mm
• Engine：Cummins
• Horsepower：190 HP
• Tire：9.00r20
• Loading&Unloading：Hydraulic System
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7300x2470x3150mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Drive type4*2, New condition, LHDVehicle Main Dimensions(L x W x H)mm7300×2470×3150Wheel base (mm)4500,4700Track front/rear mm1880/1800F/R Axle-Load5800/10000 kg,Approach/departure angle20/16 Curb weight 7945 kgGVW15600 kgMax. driving speed(km/h)95EngineBrandCummins ModelB170 33,B180 33,B190 33Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;Horse Power(HP)170,180,190Emission standardEuro IIIGearbox6 forwards& 1 reverseClutchReinforced diaphragm clutchTire9.00R20,10.00R20, 7 pc including 1 spare tireSteering Gearpower steering, hydraulic steering with power assistanceEquipment for Garbage CompactorGarbage Box MaterialCarbon Steel Q235Garbage Box Volume10cbm,12cbm Hydraulic SystemChinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.

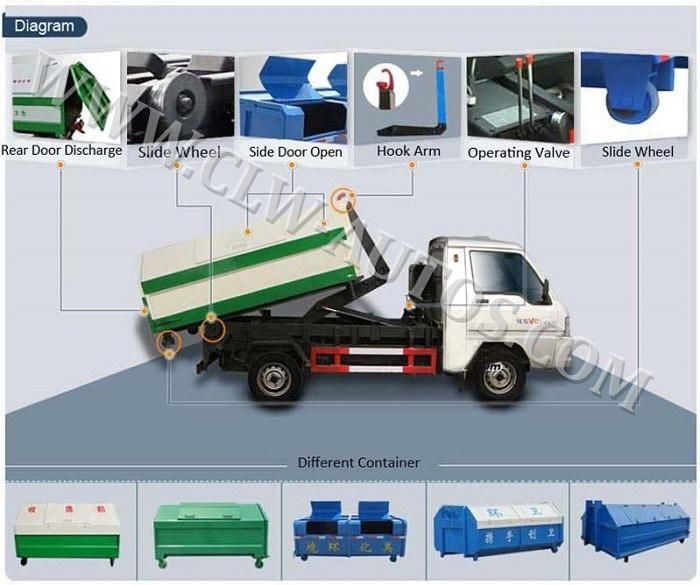

Product Diagram

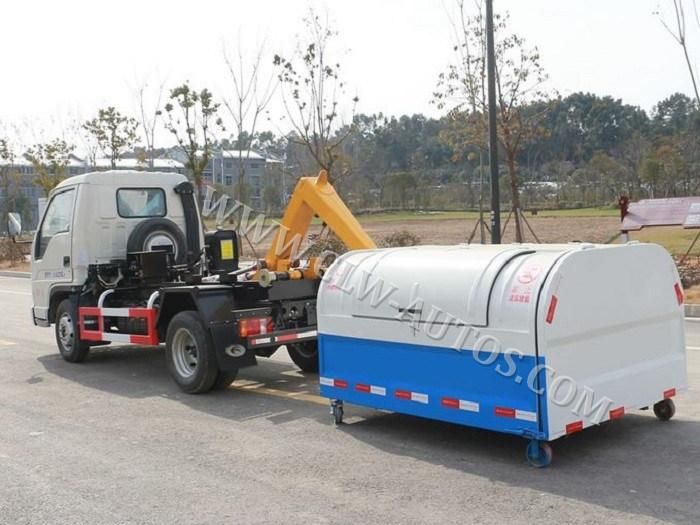

Working Show

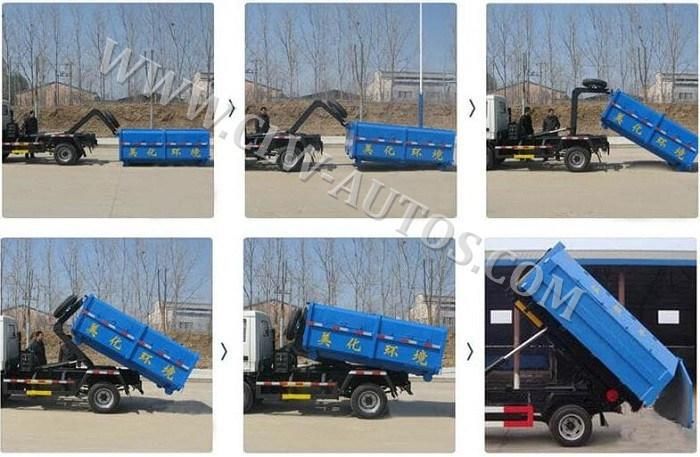

Working Steps





Other Special Truck Series



Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting







 Contact Alice for more details(+86 180 7154 2196)
