• Model NO.：CLW50787
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：FOTON
• Models：Medium
• Usage：Arm Type
• Condition：New
• Wheel Base：2850 mm
• Engine：Quanchai
• Horsepower：88 HP
• Tire：6.50r16
• Control System：Multi-Valve
• Loading&Unloading：Hydraulic System
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：4800x1870x2540mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Drive type4*2, New condition, LHDVehicle Main Dimensions(L x W x H)mm4800×1870×2540Wheel base (mm)2850F/R Axle-Load1500 / 3000 kg,Approach/departure angle23/18 Curb weight 2770 kgGVW4395 kgMax. driving speed(km/h)90EngineBrandQuanchaiType4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;Horse Power(HP)88Emission standardEuro IIIGearbox5 forwards& 1 reverseClutchReinforced diaphragm clutchTire6.50R16, 7 pc including 1 spare tireSteering Gearpower steering, hydraulic steering with power assistanceEquipment for Garbage CompactorGarbage Box MaterialCarbon Steel Q235Garbage Box Volume4CBM Hydraulic SystemChinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.

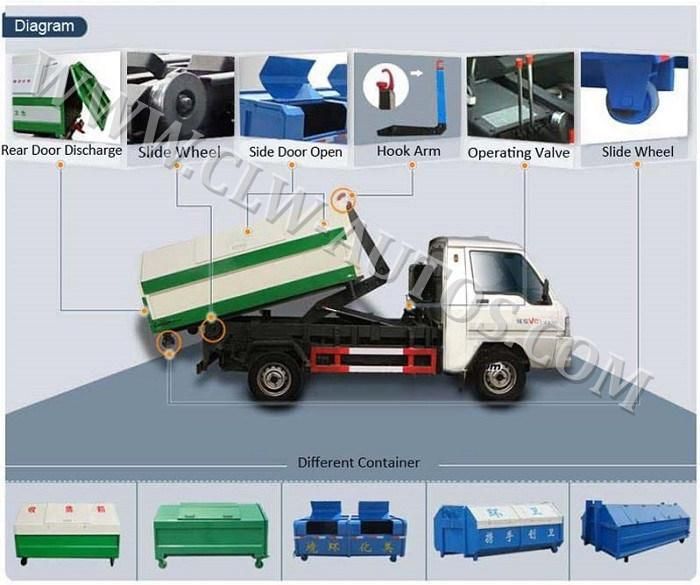

Product Diagram

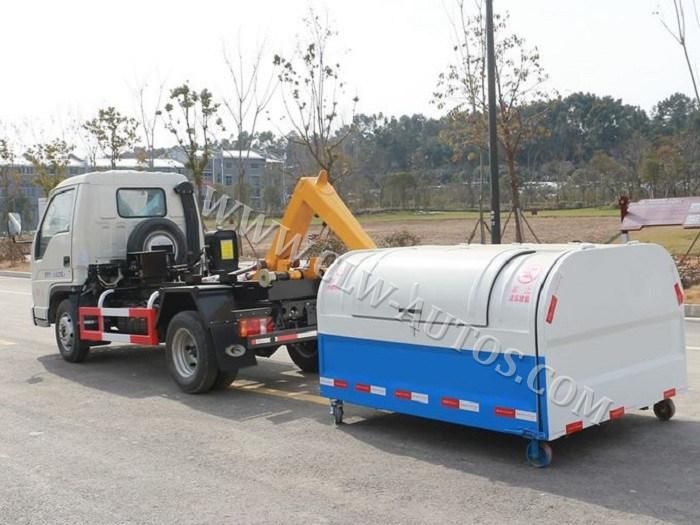

Working Show

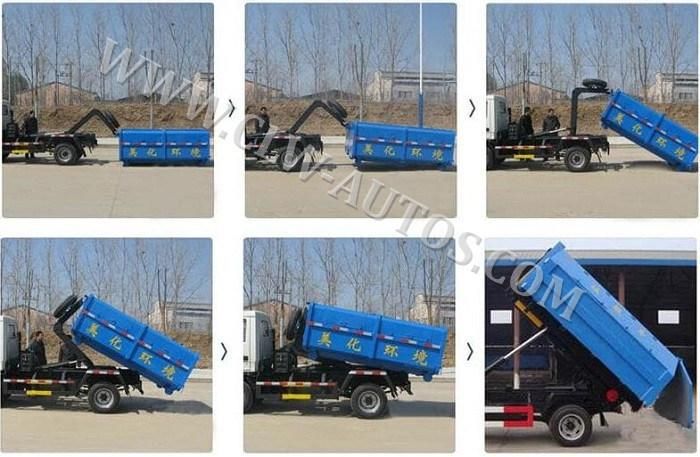

Working Steps



Bulk Orders





Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting






Contact Alice for more details(+86 180 7154 2196)
