• Model NO.：CLW5086LJC
• Payload：2ton, 3ton, 4ton, 5ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Swing Arm Type
• Condition：New
• Chassis Brand：Dongfeng, Foton, Isuzu, Sinotruk HOWO, etc.
• Hopper Size：3cbm, 4cbm, 5cbm, 6cbm, 7cbm, Ground Type
• Loading Capacity：1ton, 2tons, 3tons, 4tons, etc.
• Hopper Thickness：Side 3mm Bottom 4mm, Carbon Steel Q235B
• Protective Material：Q235A Carbon Steel
• Hopper Quantity：as Per Customer′s Request
• Dump Type：Hydraulic Cylinder Lifting and Self-Loading
• Controlling Way：Three-Way Hydraulic Control Valve
• Logo and Color：as Per Customer′s Request
• Transport Package：Naked Pack with Wax
• Specification：4m3, 4cbm, 4000Liters
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5950X2500X2900 (mm)Gross Vehicle Weight7360(Kg)Curb Weight4100(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelChaochai 102HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power75KW/102HPEmission standardEURO 3Displacement2750(ml)Fuel typeDieselGearbox5Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3308mmFront/Rear Axle Loading2500/5000(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire7.00R16, 6pc with 1 spare tireMax Driving Speed98(km/h)Upperstructure SpecificationGarbage HopperStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 4CBMLoading Capacity2-3TonThicknessSide 3mm, Bottom 4mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

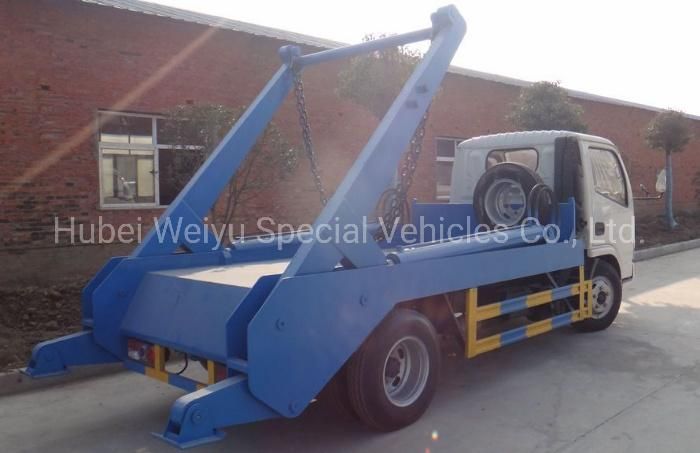

   Reference Photos

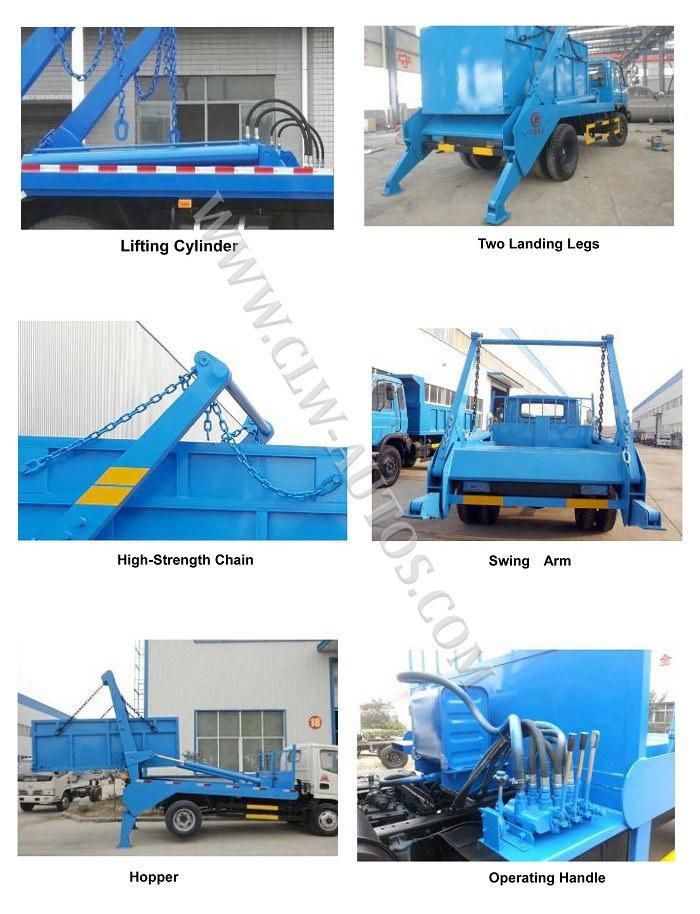

   Main Structure

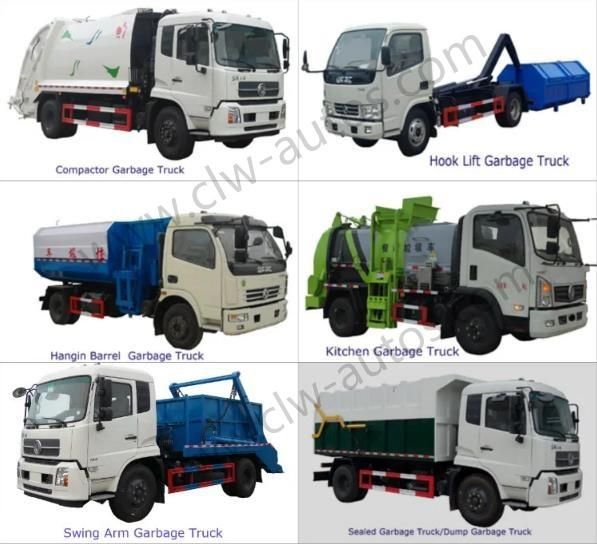

   Various Kinds of Garbage Trucks



   Company Introduction


   Certificates



   Our Overseas Exhibition
