• Model NO.：CLW5095xt
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 75HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Brush：4 Unit, 2 by Each Side
• Water Cleaning System：Front Flush, Side,Rear Spray
• Water Level Alarm System：Yes
• Usage：Road Sweeping, Road Cleaning
• Garbage Discharging：Tipping System,Dumping System
• Operating Manual：Yes, English Version
• Logo：as Per Customer′s Request
• Warranty：1 Year
• User Manual：Yes
• Transport Package：Naked Packing
• Specification：5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Technical Parameters
 ConditionNew condition/Left hand drive/4x2Overall Dimension(mm)6700x2200x2750Gross Vehicle Weight(Kg)6995Loading Weight(Kg)1900Curb weight(kg)4965ChassisBrandDongfeng Model Wheelbase(mm)3800 mmOverhang (front/rear) (mm)1015/1815 mmWheel track (front/rear) (mm)1504/1425 mmApproach/Departure angle(°)24/16°Axle Load(kg)2500/5000 kgMax. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesOil brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity(pcs)6pcs with one spare tireSpecifications7.50R16Gear boxManual type, 6 Forwards & 1 ReverseCabSingle row seat. With air conditioner.EngineModel Displacement(ml)2771 mlPower(kw)/Horsepower(HP)95 kw/130 HPCylinder quantity(pcs)4 pcsDiámetro x carrera(mm)φ93×102mmEmission standardEuro IIIUpperTankGarbage tank       Tank materialStainless steelTank volume(cbm)6 cbmWater tankTank materialStainless steelTank volume(cbm)2 cbmAuxiliary engineModelISUZUPower(kw)/Horsepower(HP)55 kw/75 HPFuel typeDieselSweeping SystemTypeFours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down.Sweeper Diameter(mm)900 mmWorking area(m)2.7-3.0 mSweeper rotation speed(r/min)80 r/minCleaning capacity40000m2/hSweeper angle
AdjustmentForerake 4°-6°and extroversion 2°-4°Remarks1, Rear LED pilot lamp
2, Self unloading box body
3, Rear vacuum cleaner
4, The tank color is optional

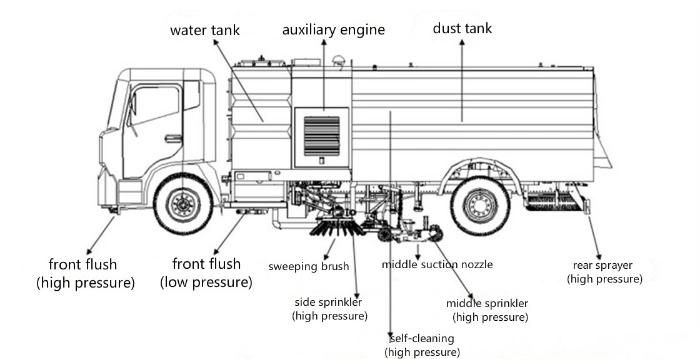

Product Diagram

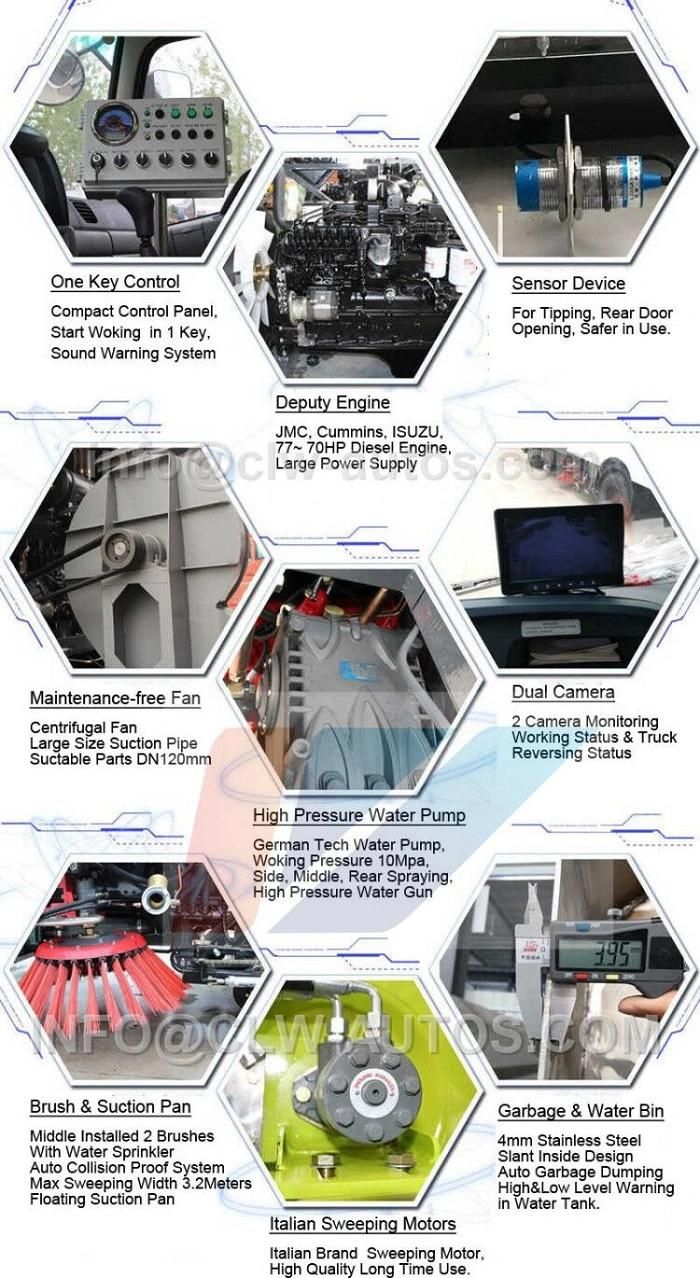

Truck details

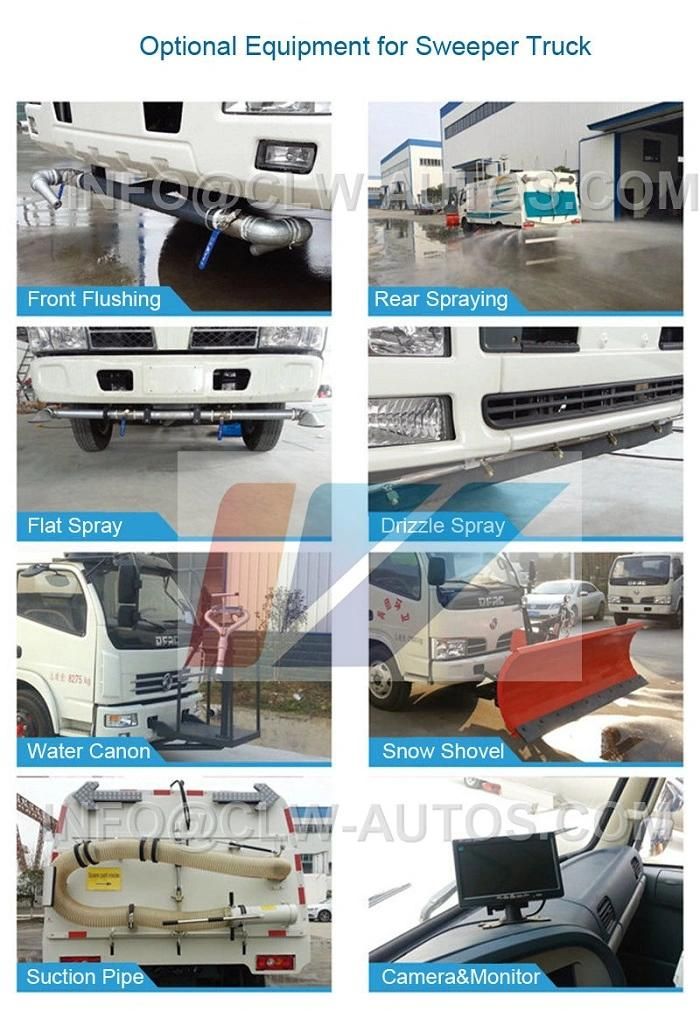

Optional parts for sweeper truck




Company Introduction




Overseas Exhibition and Local Support



Customer  Visiting



Cargo Shipping Methods





Contact Alice for more details (+ 86 180 7154 2196)
