• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Dirty Water Tank：11 Cbm
• Clean Water Tank：4 Cbm
• Vacuum Pump：Jurop Pn106D Made in Italy
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：CIMC
• Origin：China
• HS Code：8704230090
• Production Capacity：200 Units Per Year

Basic Info.

Drive Wheel 6x4 Hoesrpower 251-350hp Condition New Dirty Water Tank 11 Cbm Clean Water Tank 4 Cbm Vacuum Pump Jurop Pn106D Made in Italy Transport Package Nude Specification EMARK, GCC, VCA Trademark CIMC Origin China HS Code 8704230090 Production Capacity 200 Units Per Year

Product Description

COMBINED  VACUUM/JETTING TRUCK

1. Chassis: ISUZU 6X4 LORRY CHASSIS
    Model: QL1250UPCZ
    Engine: 6UZ1-TCG40,350HP,Euro IV  Emission
    Gearbox: Fuller 9JS150TB, 9 forwards and 1 reverse
    Driving axle: ISUZU RT210, Pressed axle housing, central single reduction,18000KG/UNIT
    Tire: 11.00-20,Nylon tire

2. PRESSURE/VACUUM TANK:
    SHAPE:Cylinder type
    Material: CARBON STEEL Q235A
    Dirty water tank:11000 L
    Thickness:6 MM
3.VACUUM PUMP
  Model:JUROP PN106D made in Italy
  Air flow rate:11000L/min(660m³/h)
 Max vacuum rate:90%

4. HIGH PRESSURE PUMP
    Type:plunger pump,MW40(ITALY)
    Flow rate:211 L/min
    Max pressure:19 Mpa
    Power:76 kw
    Speed:Max 1800 rpm

5. CLEAN WATER TANK:
    Volume: 4000L
    Material: Stainless Steel  SS304
    Thickness: 3mm


6.  High Pressure Nozzle :  Brand: COSMA from Itay;   Quantity: 4;Type: Mushroom

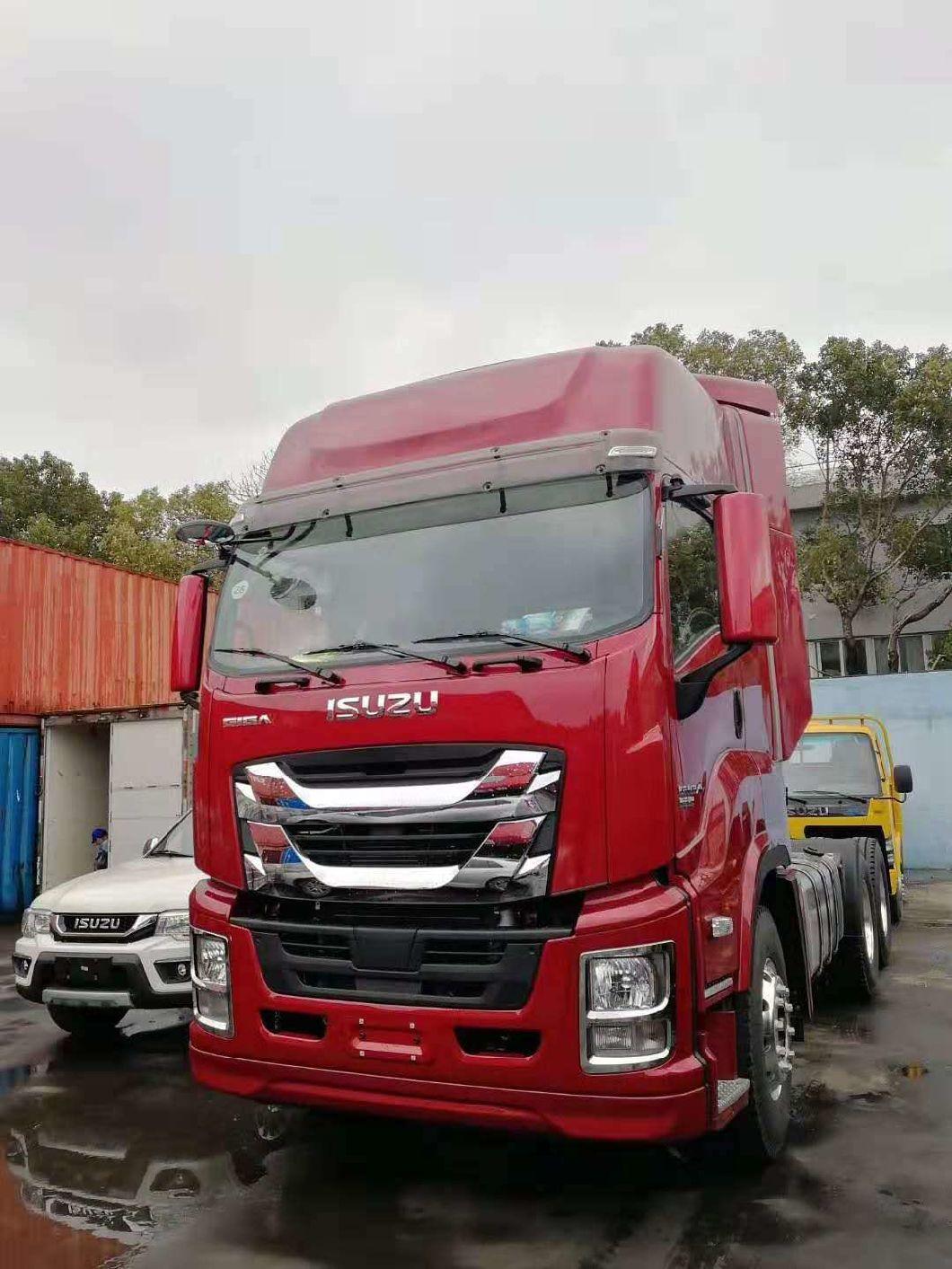

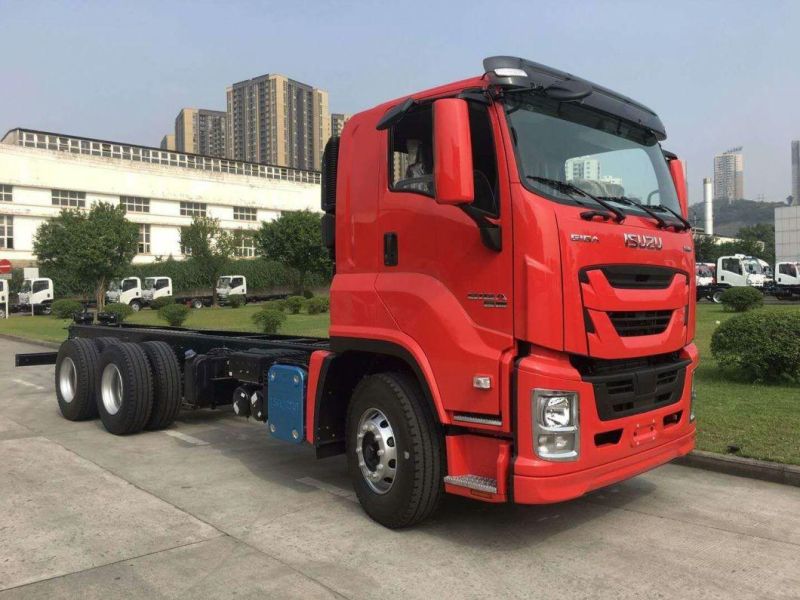

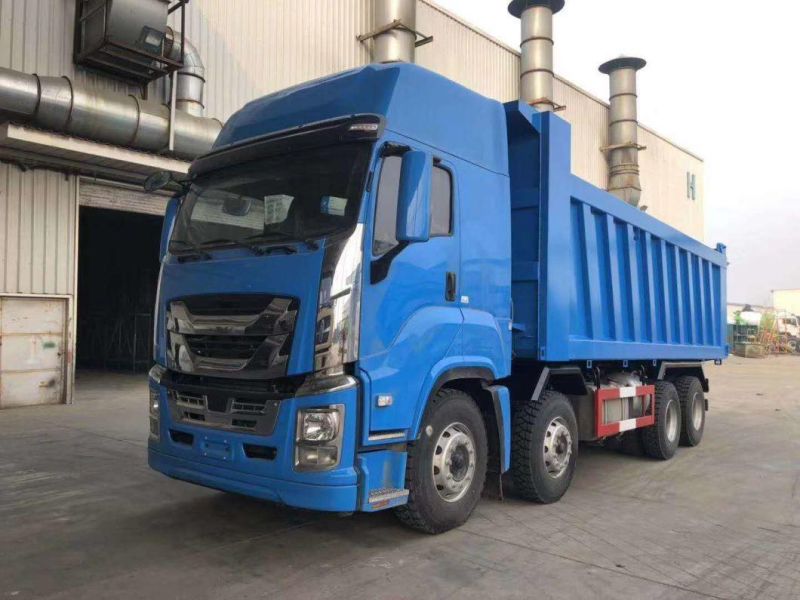

 More Series Photos:
