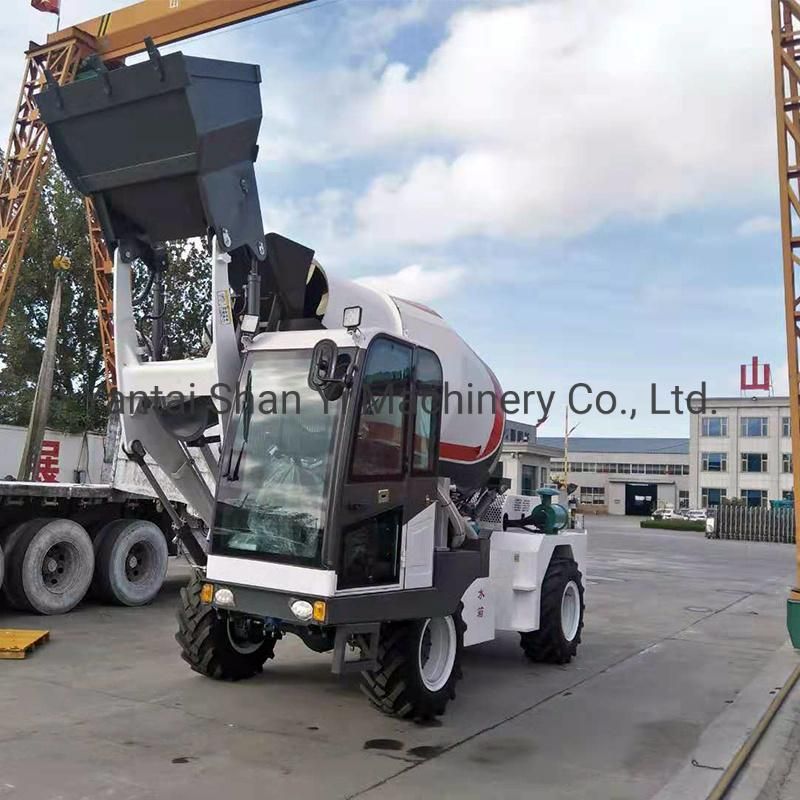

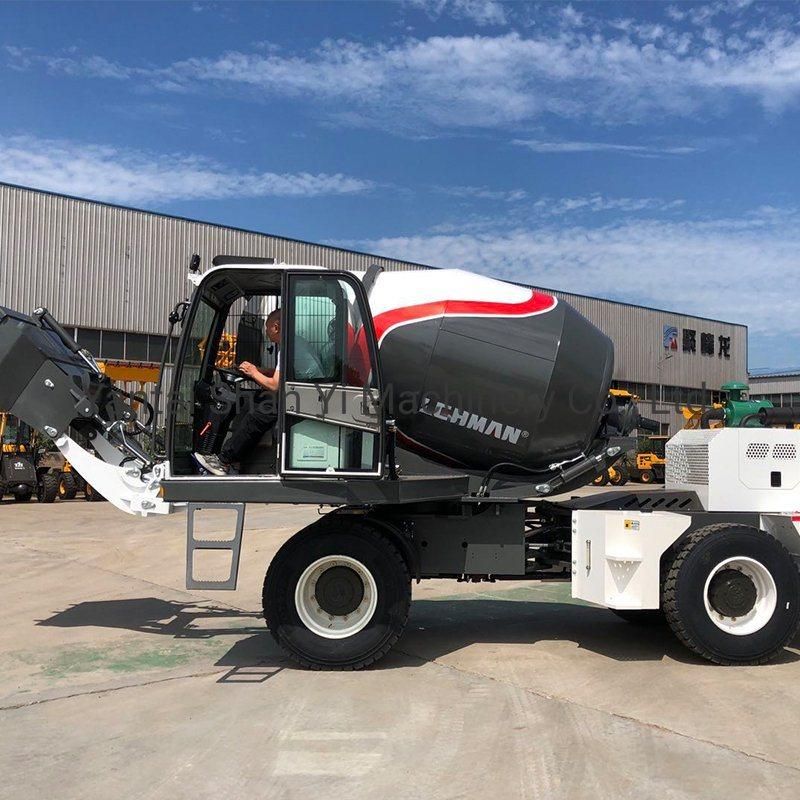

Ce 3.5 Cubic Meter Self Loading Concrete Mixer Truck with 279° Rotating Drum
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, EPA, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：State four
- Displacement：2
- Payload：7.4t
- Fuel：Diesel
Base Info
- Model NO.：LM5000
- Drive Mode：4*4
- Maximum Horsepower：<200hp
- Condition：New
- Transport Package：40′hc
- Specification：7000*2500*3250mm
- Trademark：SHANYI,LEHMAN
- Origin：Shandong, China
- HS Code：8474310000
- Production Capacity：5000sets,Year
Description
EngineYuchai 4105 supercharged (Weichai, Cummins optional) Power (kw) 85 Gearbox 280 intergral Drive axle 2.0T wheel sied deceleration bridge Tires 1670-20 Bucket capacity (m³) 0.6 Roller capacity >=4 Reduction ratio 1:24 Rotating speed (RPM) >=22 Reducer Made in China Drum rotation angle ±270 ° Tank capacity 5000L Loading qty 1 sets /40 HC Concrete yield 29-35m³/h Warranty period Engine:6 months/Hydraulic system:12months
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Brakes
External disc brake and emergency brake acting on four wheel. Independent dual circuit brake and hand-control to brake
Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank.
The total capacity of two connected water tanks positioned opposite is 612L
Visual flowmeter, the water intake of the roller by hand-control.
Mixing and unloading

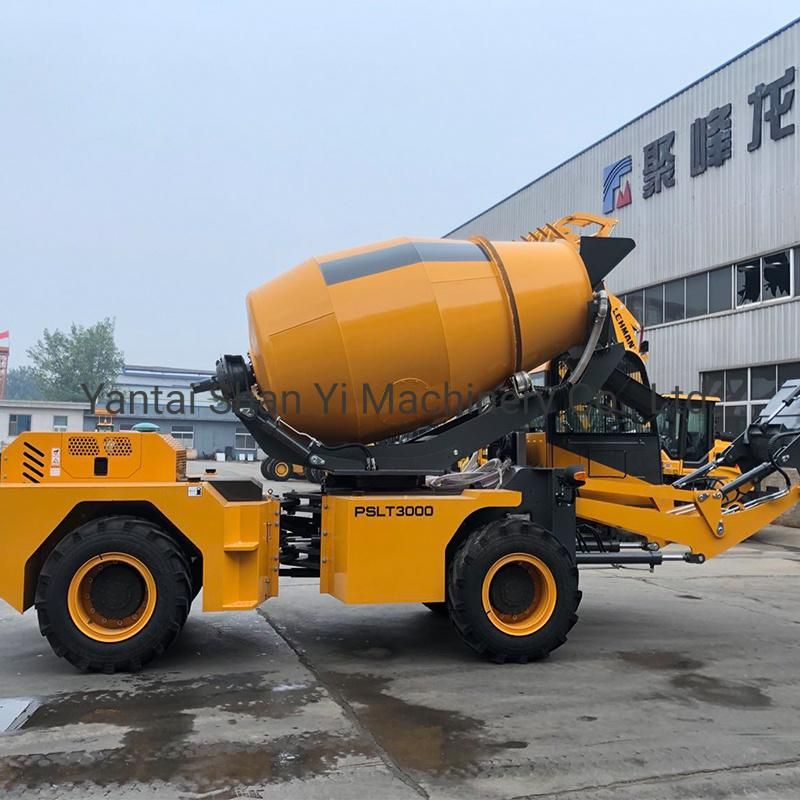

Double-cone drum with double-spiral mixing screws and convex bottom.
The Geometrical volume of drum is 5800L
The rotation speed of Drum is 22r/min.

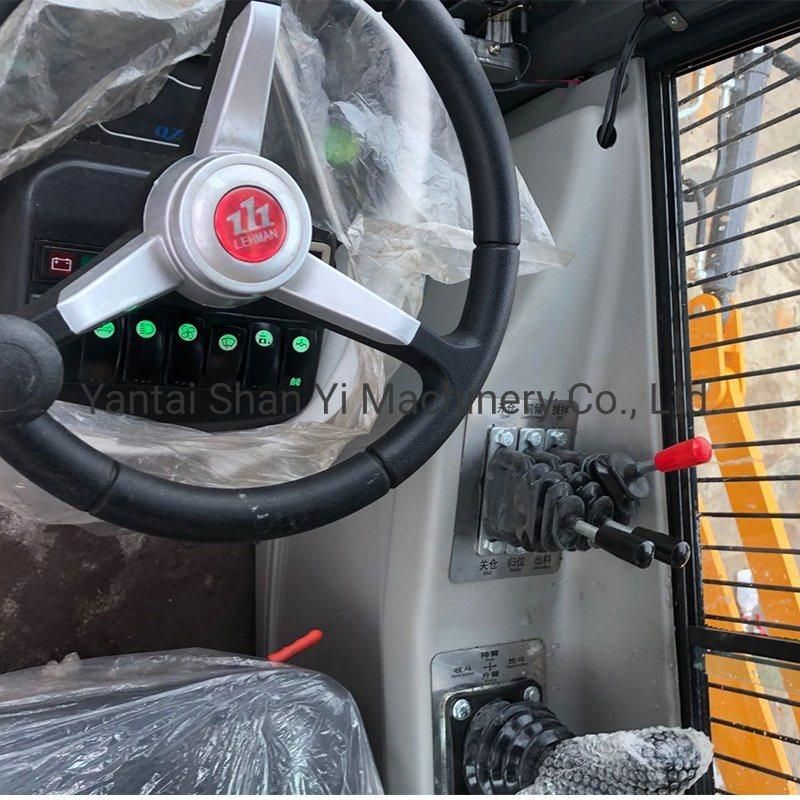

Drum rotation by means of a gear pump hydraulic motor, hand control valve in operating room and the behind of mixer machine.
Unloading chute by means of one adjustable handle to control tilt.
As a standard configuration, we can provide a chute extension unit.
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Brakes
External disc brake and emergency brake acting on four wheel. Independent dual circuit brake and hand-control to brake
Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank.
The total capacity of two connected water tanks positioned opposite is 612L
Visual flowmeter, the water intake of the roller by hand-control.
Mixing and unloading
Double-cone drum with double-spiral mixing screws and convex bottom.
The Geometrical volume of drum is 5800L
The rotation speed of Drum is 22r/min.
Drum rotation by means of a gear pump hydraulic motor, hand control valve in operating room and the behind of mixer machine.
Unloading chute by means of one adjustable handle to control tilt.
As a standard configuration, we can provide a chute extension unit.
