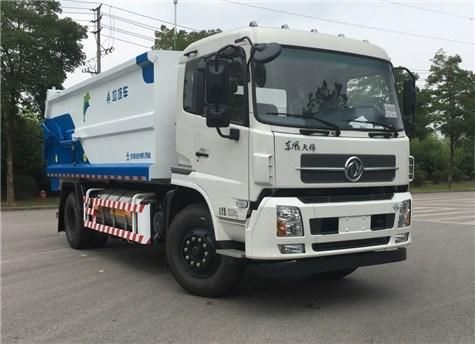

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Aerosun Corporation

Type：Compactor
Certification：ISO9000, CCC
Volume：＞15000L
Emission Standard：Euro 5
Transmission Type：Automatic
Fuel：LNG

Base Info

Model NO.：CGJ5180ZDJ5NG
Models：Large
Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type, Compression Docking Garbage Truck
Condition：New
Trademark：Aerosun SanLi
Origin：China

Description

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Main Technical Specifications

Product model	CGJ5180ZDJ5NG
Chassis model	EQ1180GD5NJ
Engine model	YC6J190N-52, Euro V
Rated power	140kw
Overall Dimensions(L×W×H)	7950×2530×3180mm
Gross vehicle weight	18000kg
Curb weight	9500kg
Rated load	8370kg
Wheel base	4500mm
Max. speed	90km/h
Effective carriage volume	18.2m³
Dimension of tail gate inlet	/
Ground clearance of tail gate inlet	/
Time cycle of loading (zero loading)	/
Time cycle of discharging	/

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck

Aerosun 18.2cbm LNG Dongfeng Cgj5180zdj5ng Compression Block Docking Garbage Truck
