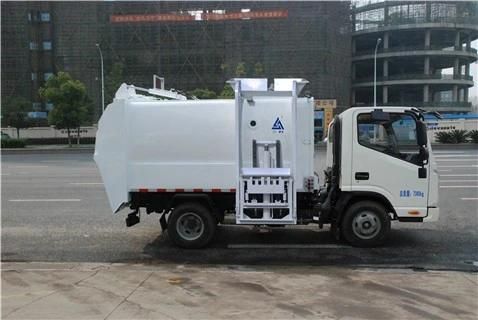

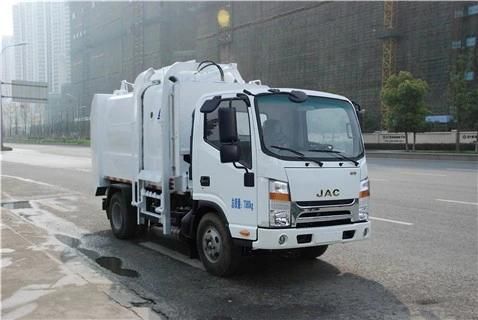

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Aerosun Corporation

Type：Compactor
Certification：ISO9000, CCC
Volume：3001-6000L
Emission Standard：Euro 5
Transmission Type：Automatic
Fuel：Diesel

Base Info

Model NO.：CGJ5071ZDJE5
Models：Large
Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type, Compression Docking Garbage Truck
Condition：New
Trademark：Aerosun SanLi
Origin：China

Description

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Main Technical Specifications

Product model	CGJ5071ZDJE5
Chassis model	HFC1070P73K1C3ZV
Engine model	ISF2.8s5129T, Euro V
Rated power	96kw
Overall Dimensions(L×W×H)	5470×1880×2725mm
Gross vehicle weight	7360kg
Curb weight	4770kg
Rated load	2460kg
Wheel base	3360mm
Max. speed	95km/h
Effective carriage volume	4.6m³
Dimension of tail gate inlet	1208×830mm
Ground clearance of tail gate inlet	≤960mm
Time cycle of loading (zero loading)	16s
Time cycle of discharging	35s

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck

Aerosun 4.6cbm JAC Cgj5071zdje5 Compression Docking Garbage Truck
