• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Truck Brand：Dongfeng,Sinotruk HOWO,Foton,Shacman
• Logo：as Per Customer′s Request
• Warranty：1 Year
• User Manual：Yes
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Turing Angle：360 Degree
• Arm Type：Folded or Telescopic
• Transport Package：Bulk Ship, RO-RO
• Specification：12m
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

ParameterOverall dimension (Length*width*high)(mm)7300×1980×3100Total Weight(kg)5925Curb Weight(kg)5600Wheel base(mm)3360Front/rear loading capacity(mm)2700/7200Approach/rear angle 27/11Max speed(km/h)90Fuel type dieselEngineEngine type YucaiPower(HP)117Displacement standard EURO 3 ChassisChassis type HOWODrive system 4x2Tire type 8.25R16Number of tire 6Front/rear axle loading(kg) 1015/2025passengers 2+3Cabin Double row cab Special parameterWorking platform rating loading(kg)200Max operation height(m)12Max working radius(m)5.2Rotation speed(r/min)0.15~0.20m/sMax hoisting height(m)8Rated hoisting capacity(kg)1000-2000Max rotation angle(°)360

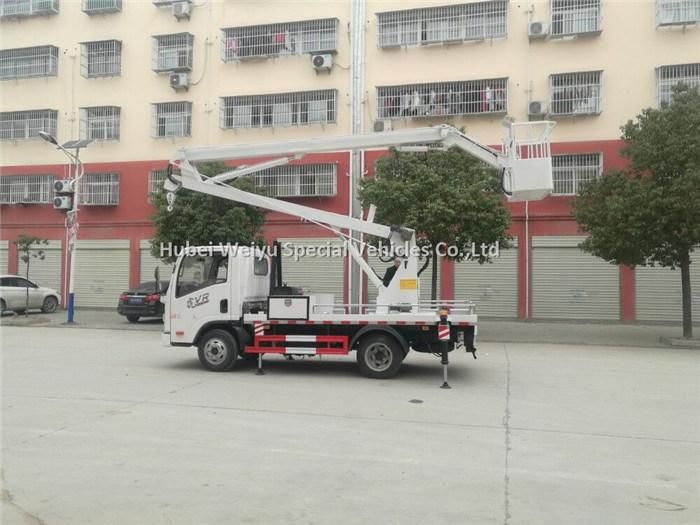

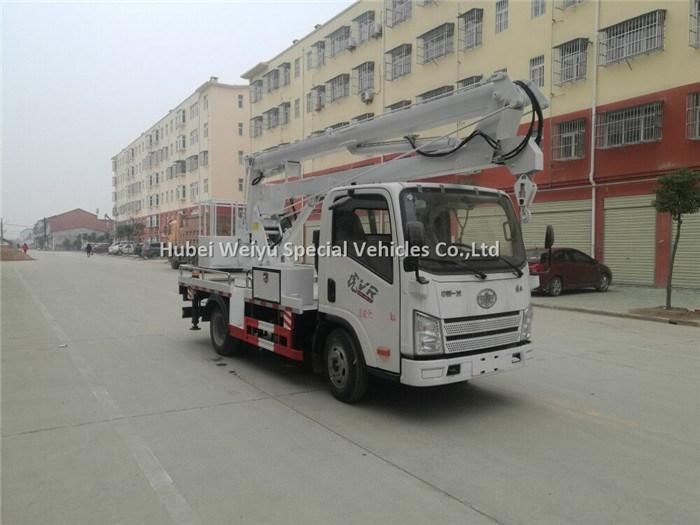

Truck details

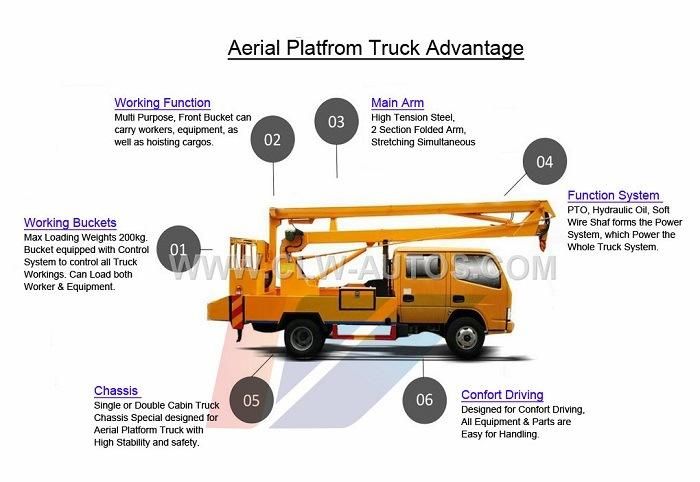

Truck diagram

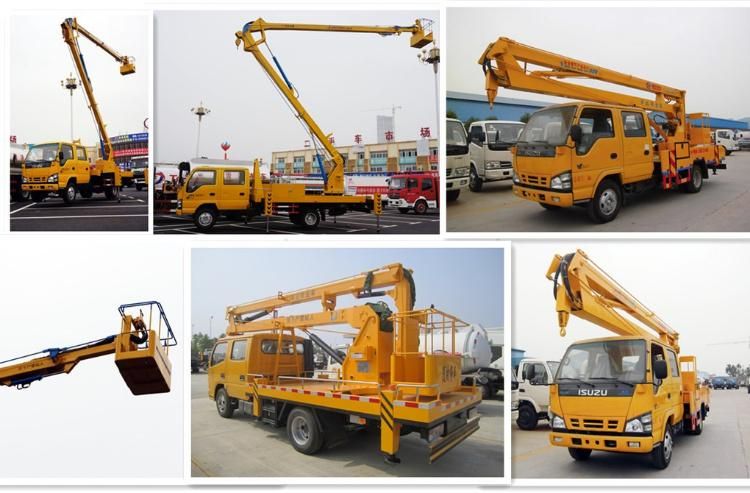

Working Show



Bulk Order





Company Introduction




Overseas Exhibition and Local Support
