• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Isuzu
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 140HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Rear Warning Light：Yes
• Water Cleaning System：Front Flush, Side,Rear Spray
• Warranty：1 Year
• Logo：as Per Customer′s Request
• Operating Manual：Yes
• Transport Package：Naked Packing
• Specification：5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Dongfeng Truck ChassisConditionNew condition/Right hand drive/4x2ChassisBrandShacman Curb weight(kg)4460 kgWheelbase(mm)3815 mmDimensions(mm)7180  x 2260 x 2680 mmWheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Axle Load(kg)5280/4720Max. driving speed(km/h)90 km/hTireSpecifications6pcs with one spare tireNumber8.25-16ClutchReinforced diaphragm clutchGear boxManual type, 6 Forwards & 1 ReverseCabinLeft Hand Driving, 3 Passenger AllowedEngineModelDiesel Engine, 4 CylindersPower(kw)/Horsepower(HP)103 kw/140 HPEmission standardEuro IVBrakesService brake: dual circuit compressed air brake                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceSweeping SystemTankGarbage tankTank materialStainless steel 304Tank volume(cbm)4 CBMWater tankTank materialStainless steel 304Tank volume(cbm)2 CBMAuxiliary engineModelISUZUPower(kw) 102 kw/140HPBrushQuantity(pc)2 pcsWorking area(m)2.7-3.2 mCleaningHigh pressure reel18 metersRemarks1, With water sprayer-bar
2, Rear vacuum cleaner
3, Blower
4, Rear LED pilot lamp
5, Self unloading box body
6, The color will be designed on basis of your requirements.

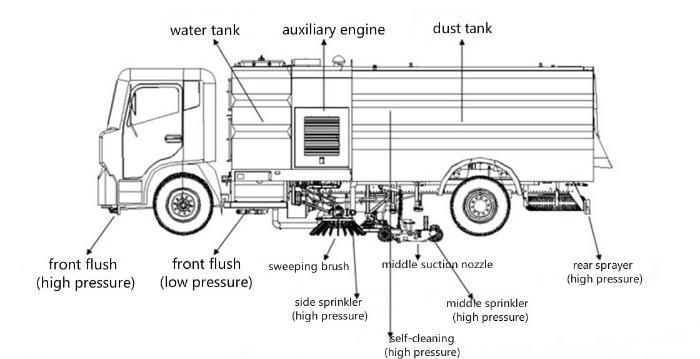

Product Diagram
