Specialized Vehicle

Mobile Sewage Suction Vehicle Vacuum Tank Slurries Sludges Sewer Sewage Suction Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, CE
  • Emission Standard:Euro 3
  • Payload:10tons
  • Transmission Type:Manual
  • Fuel:Diesel
  • Tank Volume:10000lites

Base Info

  • Drive Wheel:4x2
  • Hoesrpower:180 HP
  • Condition:New
  • Material:Carbon Steel
  • Hand Driving:LHD or Rhd
  • Sewage Capacity:10000 Liters, 10cbm
  • Sewage Pump:Vacuum Pump
  • Brand:Chinese Famous Brand or Italy Pump
  • Pressure Gauge:Yes
  • Glass Window:Yes
  • Water Gas Separator:Yes
  • Oil and Gas Separator:Yes
  • Vacuum Anti-Overflow Valve:Yes
  • Discharge Valve:Yes
  • Hand Washing Device:Optional
  • Operating Video:Yes
  • Logo:as Customer′s Request
  • Warranty:One Year
  • Transport Package:Naked, Waxed, Bulk Ship, RO-RO
  • Specification:8300x24900x3380 mm
  • Trademark:CLW
  • Origin:Suizhou, China
  • HS Code:8705909090
  • Production Capacity:500 Unit,Month

Description

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)15800Curb Weight (kg)8805Curb Weight (kg)6800Overall Dimensions L*W*H(mm)8300*2490*3380 Engine BrandCumminsFuel TypeDieselPower180 HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)4500Engine Type6 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)4500/9000Tire No.6+1 spareTire Specification9.00R20Wheelbase (mm)4700Axle No.2Gear Box6 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeOil brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)10,000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

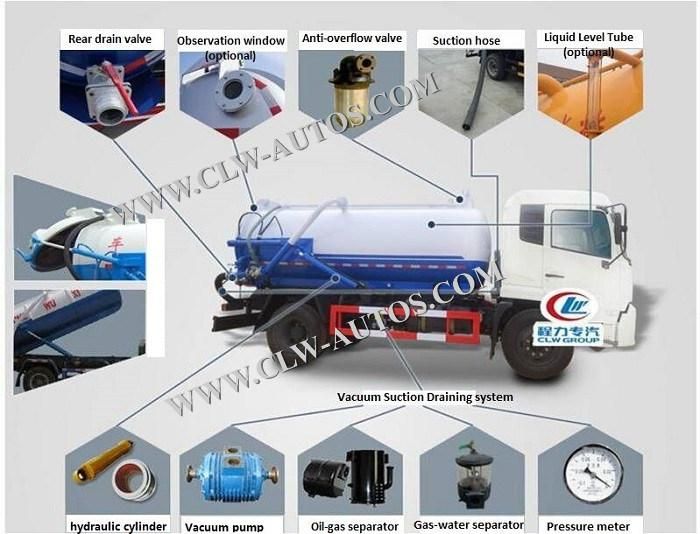

Product Diagram

Mobile Sewage Suction Vehicle Vacuum Tank Slurries Sludges Sewer Sewage Suction Truck

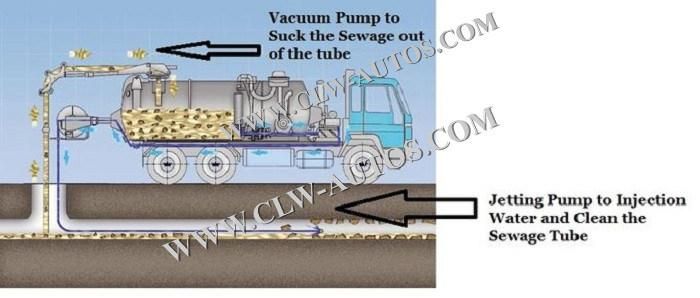

Working Diagram

Mobile Sewage Suction Vehicle Vacuum Tank Slurries Sludges Sewer Sewage Suction Truck

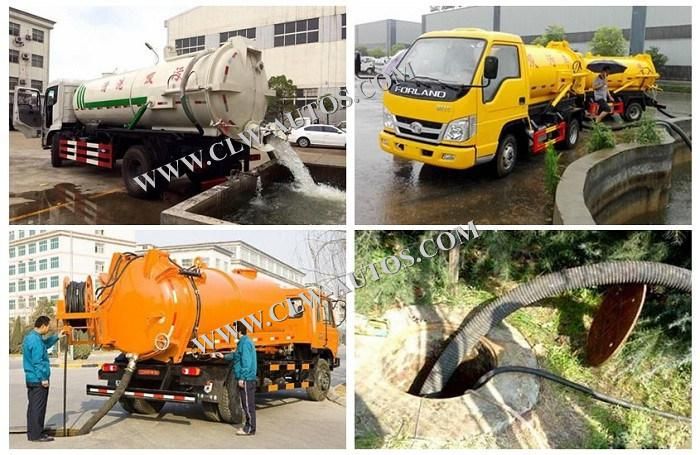

Working Show

Mobile Sewage Suction Vehicle Vacuum Tank Slurries Sludges Sewer Sewage Suction Truck
