• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Cummins 180HP
• Dust Bin Capacity：5cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：9000liters, 9cbm.9m3
• Material：Stainless Steel
• Auxiliary Engine：Cummins 170HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Sweeper：2 Unit
• Water Cleaning System：Front Flush, Side,Rear Spray
• Water Level Alarm System：Yes
• Operating Manual：Yes, English Version
• Logo：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked Packing
• Specification：8ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Cabin

Driving type 4x2 LHD

single row,with A/C ,with two seats

Vehicle Main DimensionsOverall dimensions (L x W x H)mm8280×2490×3100Wheel base (mm)5000Approach/Departure angle(°)21/12Weight in KGSTare Weight6405payload4850Front axles loading capacity1x4500Rear axles loading capacity1x9000Max. driving speed(km/h)90EngineBrandCumminsHorse Power(HP)180Emission standardEuro IIIGearbox6 forwards & 1 reverseSteeringleft hand driveTire9.00R20,6 tires with one spareMax. Cleaning Width3MSweeper Speed3~20 km/hMax. Cleaning Capacity60000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Dust tank7000litersWater tank8000LitersAuxiliary EngineModel                             Cummins 180HPTypesix -injection,water-cooling,turbo-charged,diesel enginePower77hp/3600r/minMax. Rotation Speed2400r/minOil typeDiesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

2 brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

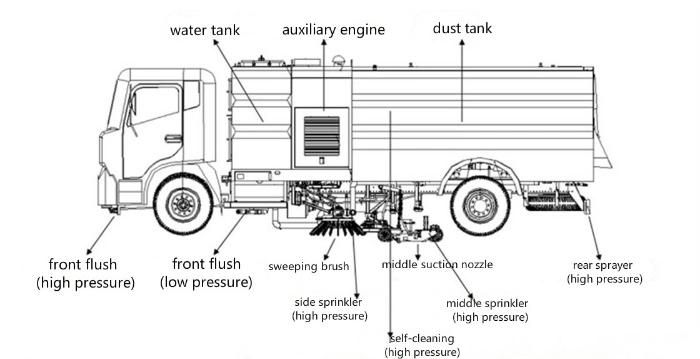

Product Diagram

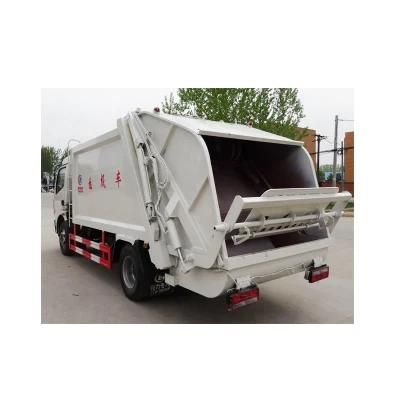

Related Product
