• Model NO.：QL1310URCH
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：ISUZU
• Origin：China
• HS Code：8704230000
• Production Capacity：20000 Unit Year

Basic Info.

Model NO. QL1310URCH Transport Package Nude Specification EMARK, GCC, VCA Trademark ISUZU Origin China HS Code 8704230000 Production Capacity 20000 Unit Year

Product Description

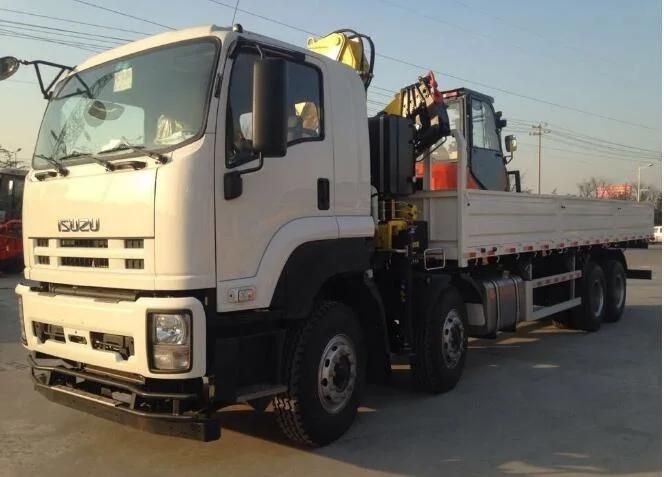

ISUZU 8X4 CRANE MOUNTED TRUCK


1. Chassis

Drive: 8x4
Wheelbase:1850+3320+1300MM

Engine Make: ISUZU
Engine model:6UZ1-TCG40 , Euro IV emission standard
Maximum output: 350 hp (257 Kw) at 2000 rpm

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R)

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT260, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
21 Tons Capacity, Ratio Selective:5.571

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Driver's Cab Standard cab, with two seats, 1 bed



2.Crane model: XCMG SQ16ZK4Q

Max lifting capacity: 16 T
Max lifting moment 40 T.M
Recommend power needed at recommend oil flow: 37KW
Oil tank capacity: 250L
Crane weight: 5000 KG
Installation space: 1500MM


Emmission standard for option:
Euro 3/4/5

Driving Type: Left or right for option

Other Series of ISUZU Truck
1, LIght truck: dump truck, cargo truck, manlift truck etc.

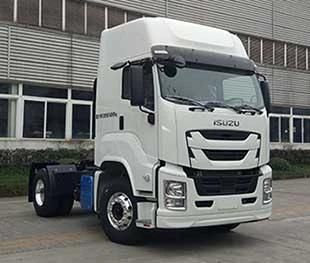

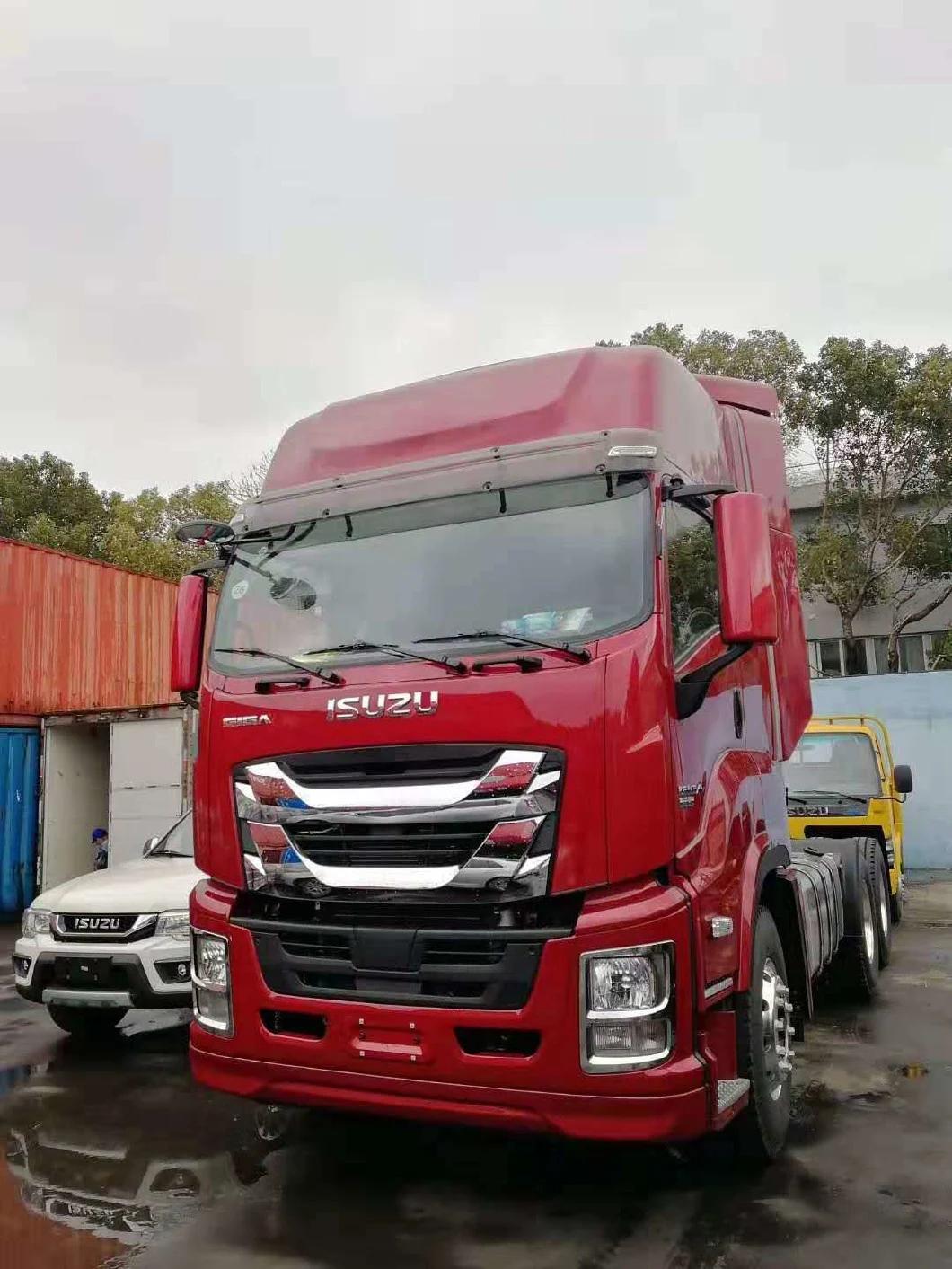

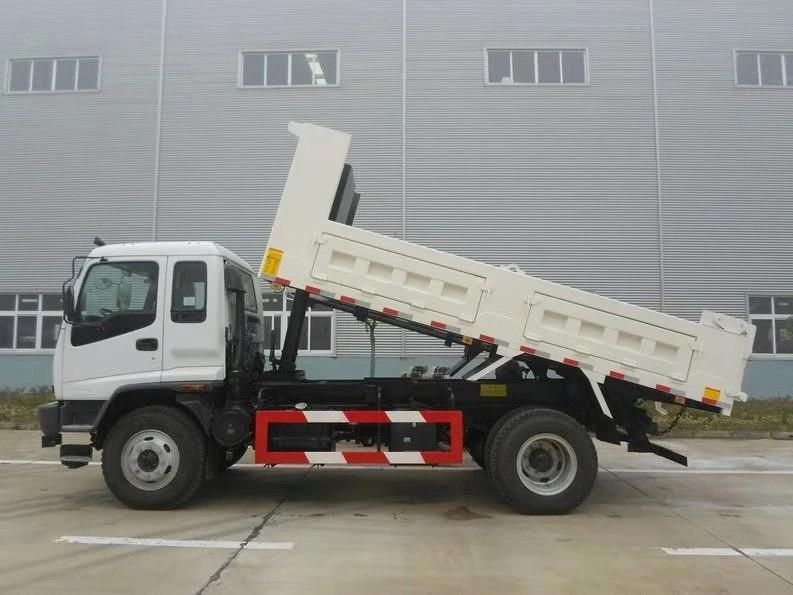

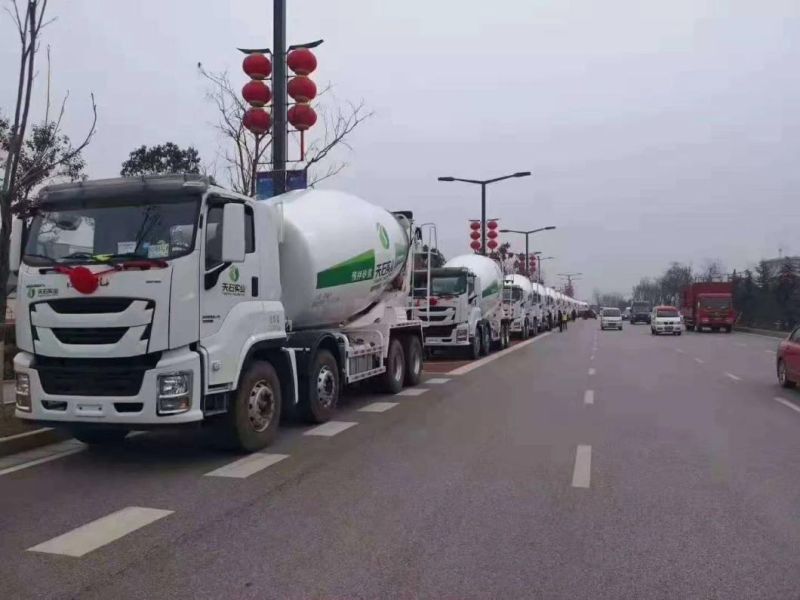

2, Heavy duty truck: Fuel truck, dump truck, tractor truck, cargo truck, transit mixer, sweeper etc
3, Electrical truck

More photos for your reference:
