• Drive Mode：6x4
• Maximum Horsepower：>400hp
• Condition：New
• Engine：Hyundai Powertec 360,410,440 PS
• Mixer Tank Volume：7 -12 Cbm
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：HYUNDAI
• Origin：China
• HS Code：8705400000
• Production Capacity：20000 Unit Year

Basic Info.

Drive Mode 6x4 Maximum Horsepower >400hp Condition New Engine Hyundai Powertec 360,410,440 PS Mixer Tank Volume 7 -12 Cbm Transport Package Nude Specification EMARK, GCC, VCA Trademark HYUNDAI Origin China HS Code 8705400000 Production Capacity 20000 Unit Year

Product Description

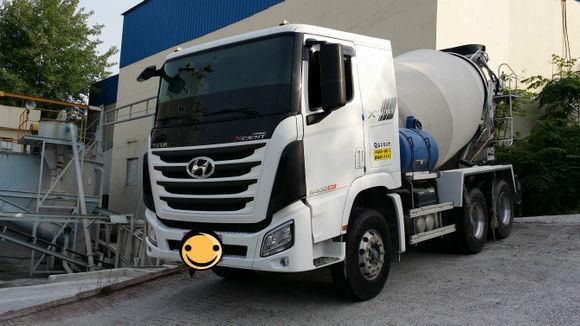

HYUNDAI truck produced in China since end of 2014, the engine is HYUNDAI POWERTEC made in Korea, engine horse power is from 360hp to 440hp, engine displace from Euro III to Euro IV, transmission is HYUNDAI DYMOS  made in Korea 12-16 speeds, mixer tanker from 7 M3 to 12 M3, stable quality in the world.





Engine Make: HYUNDAI POWERTEC
Engine model: D6CF41E4, Euro IV emission standard
Maximum output: 410 hp (302 Kw) at 1900 rpm
Maximum torque: 1796 Nm at 1200-1500r/min

Transmission HYUNDAI T230S12, with overdrive, synchronized, 12 forwards and 2 reverse, 2300N.m
Ratio: 12.29   9.57  7.49  5.83  4.57  3.55  2.69  2.10  1.64  1.28  1  0.78  10.86(R1) 8.46(R2)

Front Axle HYUNDAI, Steering with doubleT-cross section beam, 7.5 T, drum air brake

Rear Axle HYUNDAI H120ST, 16 T Pressed axle housing, hub reduction and with differential locks between wheels and axles .
Ratio:4.8      Option: 4.8,5.73,6.29   6.77

Wheels & Tyres Tire: 11 pcs 12.00R20, radial tire
Option:12.00R22.5, 315/80R22.5, 12.00R24, 12.00R24 Mining tire

Driver's Cab HYUNDAI luxuary cab, with two seats, 1 sleeping bed, with air suspension driver seat, 2-arm windscreen wiper system with three speeds,


Mixer tank volume range from 7-12 M3, Decelerator ZF(Germany),Pump Eaton(U.S.A),Hydraulic Motor Eaton(U.S.A)
