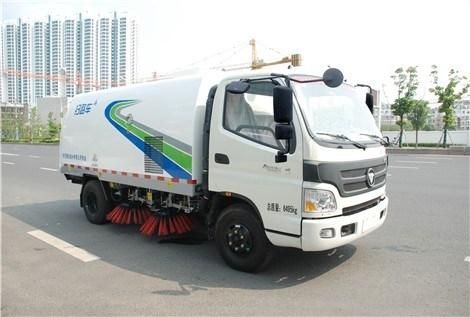

Aerosun 5cbm Cgj5064tsl Road Sweeper Foton Truck
Aerosun Corporation- Type：Wet-type
- Certification：ISO9000, CCC
- Transmission Type：Automatic
- Emission Standard：Euro 4
- Fuel：Diesel
- Cleaning Process：Cold Water Cleaning
Base Info
- Model NO.：CGJ5064TSL
- Condition：New
- Trademark：Aerosun SanLi
- Origin：China
Description
1. PARAMETRS
| Model | CGJ5064TSL |
| Chassis model | BJ1069VDJEA-FB |
| Wheel base(mm) | 3360 |
| Engine | ISF3.8s4141(Euro IV)- 105kw |
| Curb weight (kg) | 5410 |
| GVW (kg) | 6495 |
| Overall size(mm) | 5835×2030×2490 |
| Approach/departure angle(°) | 21/13 |
| Front/rear overhang(mm) | 1095/1380 |
| Min. ground clearance(mm) | / |
| Max. speed(km/h) | 95 |
| Capacity of garbage tank(m3) | 5 |
| Capacity of water tank(m3) | 1.1 |
| Max. sweeping width(m) | 3 |
| Sweeping speed(km/h) | 3~20 |
| Max. Sweeping capacity (m2/h) | 60000 |
| Max. suction particle size(mm) | ≥110 |
| Sweeping efficiency | ≥95 |
| Discharging angle (°) | ≥45 |
2. Technical characteristics(with ★ is for our company's unique features)

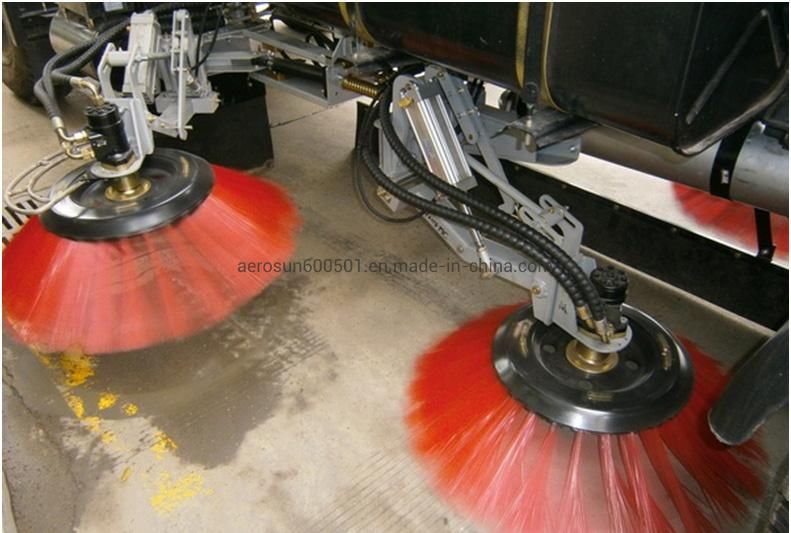

1.The front brush device has the function of automatic avoidance and automatic reset to avoid the damage caused by collision.
★2.The brush is stepless adjusted in the cab, which has a wider adjustable range and stronger applicability than the general fixed three-speed adjustment. Pneumatic control stepless adjustment for grounding pressure of the front brush, the knob operation, which greatly reduces the labor intensity compared with the traditional manual adjustment of the spring screw.
3.A roller brush is installed inside the rear of the suction nozzle to prevent garbage leakage and improve the cleaning efficiency. The suction nozzle can float with the ground, and the grounding pressure of the roller brush can be adjusted by stretching the spring to extend the service life of the contact caster.

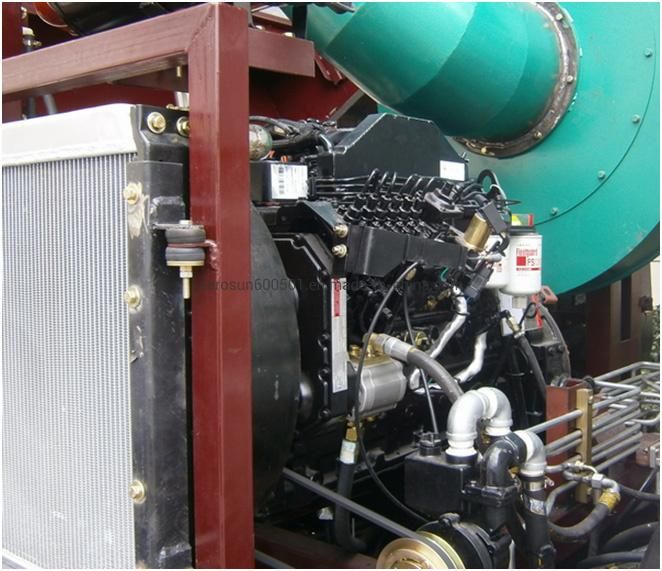

★4.The assistant engine uses cummins 4JB1-TCH (Euro III), and its max. power is up to 68kw. When the assistant engine starts, the automatic clutch is controlled by the cylinder to ensure the assistant engine no-load starts and extend the service life of the engine effectively.
5.Imported technology is used to fan, blade materials wear resistance, long life, strong suction.

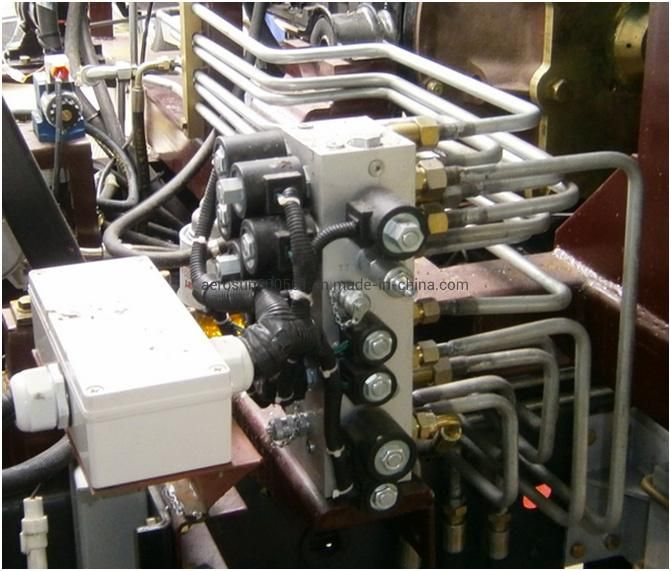

★6.The hydraulic system includes threaded cartridge valve,throttle valve, and international brand cycloid motor. Threaded cartridge valve high reliability, small volume, light weight, flexible arrangement, easy maintenance.

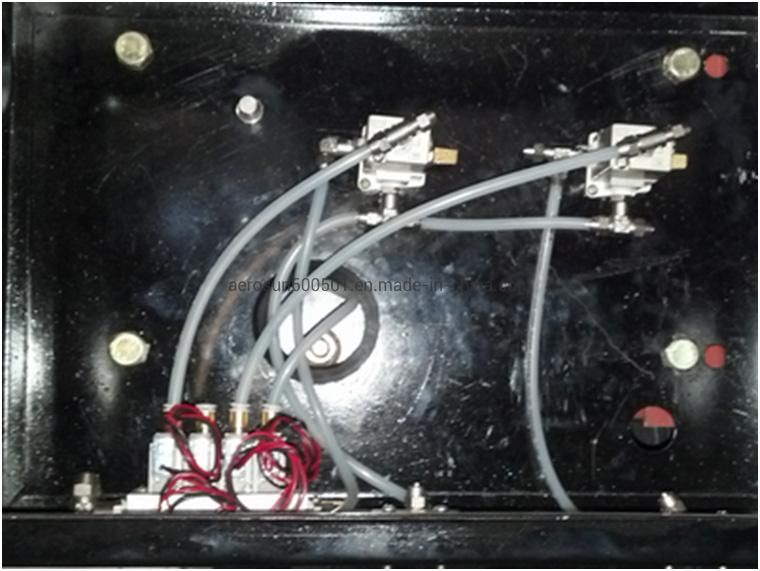

★7.Pneumatic components using air electromagnetic directional valve, the international brand pressure regulating valve.The valve has the feature of small volume, excellent workmanship, reliable quality.

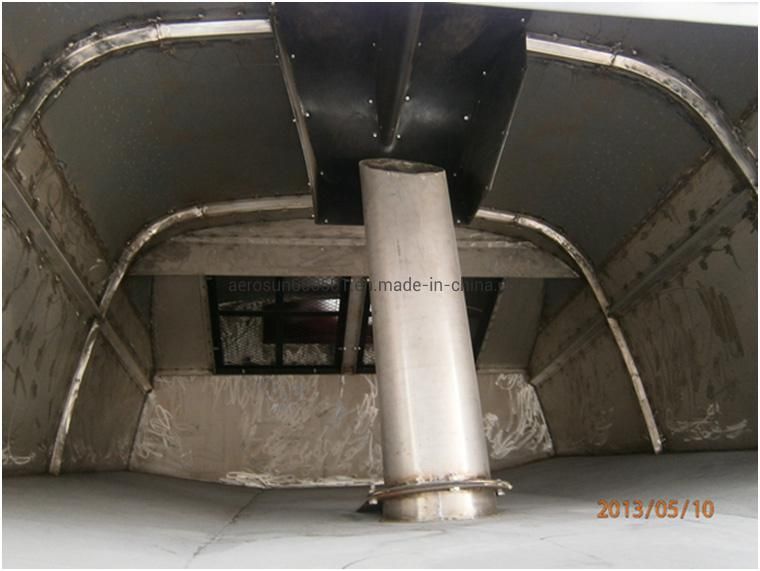

8.he garbage tank and water tank are made of high-quality stainless steel plate, a cleaning operation time can reach 3 hours.

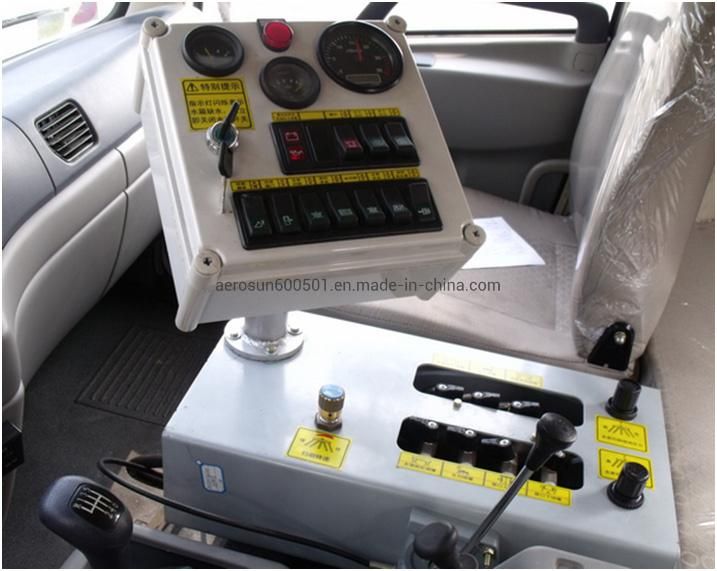

★8. Use high level electrical operation platform, the line of sight is wide, easy to operate. Set water shortage alarm, hydraulic oil leakage alarm. Optional camera color monitoring device.

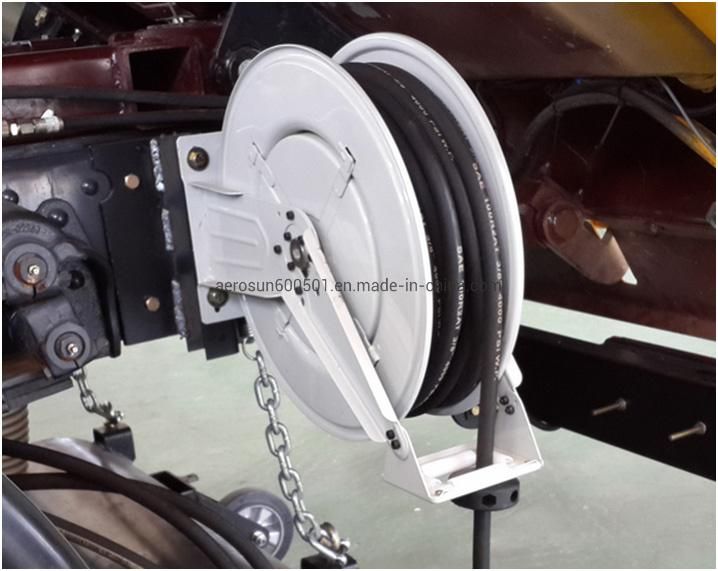

★9.Equipped with micro high pressure cleaning pump and water gun hose reel, between water gun and hose connect with quick coupling, it can be convenient to clean the tank body.
10.Equipped with gear pump takes force by chassis, it can lift the tank body and open the back door when the assistant engine can not start, reduce fuel consumption.
